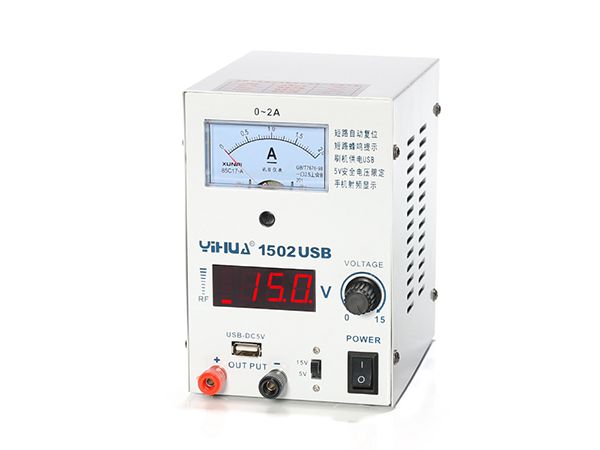

YIHUA-1502USB DC Power Supply

YIHUA-1502USB DC power supply is applicable for testing, debugging, repairing, or used in laboratory and school. It can be connected to computer or programming unit. Besides, our bench top power supply can be applied for mobile phone charging, data transmission and GSM signal testing.

The laboratory testing equipment is provided with USB data interface and system recovery interface. Featuring full power and optimal voltage stability, our adjustable power supply is a good helper for maintenance task by virtue of the multiple functions, including overload protection, short circuit protection, buzzer alarm, and automatic recovery.

Output Voltage Modes of DC Power Supply
Mode 1
Output voltage: 0-15V (Adjustable)
Output current: 0-2A (Full 2A)
Application: 0-15V/0-2A for power supply and charging.

Mode 2
Output voltage: 0-5V (Adjustable)
Output current: 0-2A (Full 2A)
Application: 0-5V/0-2A for power supply and charging, particularly suitable for mobile phone.
5V voltage limitation: with voltage limitation, mobile phone will not be damaged by overload voltage.

Parameter
Rated Voltage AC220V±10% 50Hz
Working Environment 0~40℃ Relative humidity<80%
Storage condition -20~80℃ Relative humidity<80%
Dimension 17.4*10.8*16.4cm
Machine weight 1.5KG
Rated voltage 0~15Vadjustable
Output current 0~2Aadjustable
Voltage Stability ≤1mV
Load stability ≤0.33%
Corrugation coefficient ≤3mVrms (5Hz ~ 1MHz)/≤3mArms
Display accuracy 0.1V/0.1A/1mA
Protection mode Overcurrent, short circuit, high temperature
