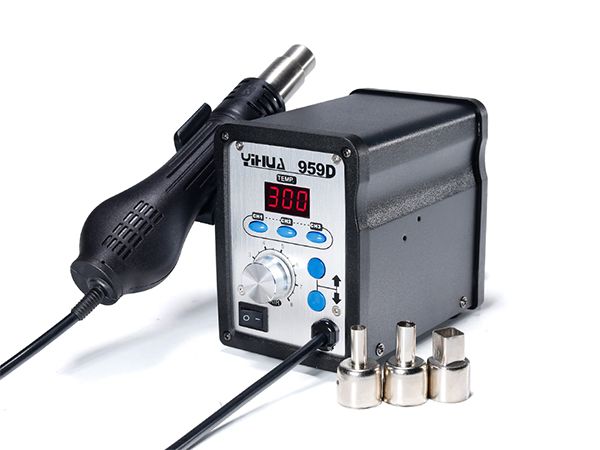

YIHUA-969D/959D Hot Air Rework Station

Features
1. YIHUA-969D/959D hot air rework station comes with three storage locations, all of which are used to set or store different temperature values. Through the three shortcut keys, you can speedily adjust the storage unit settings, and choose the appropriate air volume. Anyway, our equipment is particularly ideal for the standardized assembly line operation.
2. Due to the microcomputer PID program, real-time temperature tracking and real-time temperature can be achieved. The PID temperature correction cycle is 100ms. For that reason, the constant temperature can be ensured, contributing to the less power consumption of the hot air rework station.
3.This rework station is equipped with a durable brushless fan that will generate less noise. Moreover, the brushless fan has a high quality heating element which has doubled the working efficiency of the entire equipment.
4. The high quality skeleton heater applied to the air gun handle is durable and works efficiently. The air gun handle is designed with the security protection function. When power on, only the handle is placed at frame that the hot air rework station can start work properly.
5. Last but not the least, this YIHUA-969D hot air rework station has the automatic failure detection function and automatic alarm function.

Parameters

General Information
Operating Voltage AC 220V±10% 50Hz
Output Power 650W
Working Environment 0 ~ 40℃ relative humidity < 80%
Storage Environment -20 ~ 80 ℃ relative humidity < 80%
Dimensions 138*100*150mm
Weight 1.86KG
Performance
Item 959D 969D
Temperature Range 100 ℃ ~ 450 ℃ 100 ℃ ~ 450 ℃
Display Mode LED digital display LED digital display
Air Supply Mode Brushless fan Brushless fan
Air Volume 120L/min (Max.) 120L/min (Max.)
Temperature Stability ±5℃ (static state) ±5℃ (static state)
Temperature Correction Mode PID Digital program calibrate PID Digital program calibrate
PID Temperature Correction Cycle 100ms 100ms
Heater Ceramic skeleton heater Ceramic skeleton heater

Standard Configuration
Desoldering station: 1pc
Manual: 1pc
Air gun handle: 1pc
Nozzle: 3 (5mm, 8mm, 10mm)
IC extractor: 1pc
Smaller spanner (for nozzles disassembly): 1pc
Power plug: 1pc

Application
Our YIHUA-969D hot air rework station is commonly found in many fields, including laboratories, schools, electronic production lines, mobile phone repair industry, and home appliance maintenance department. You can use it for soldering SMD components, multi-pin IC, and circuit board components.
