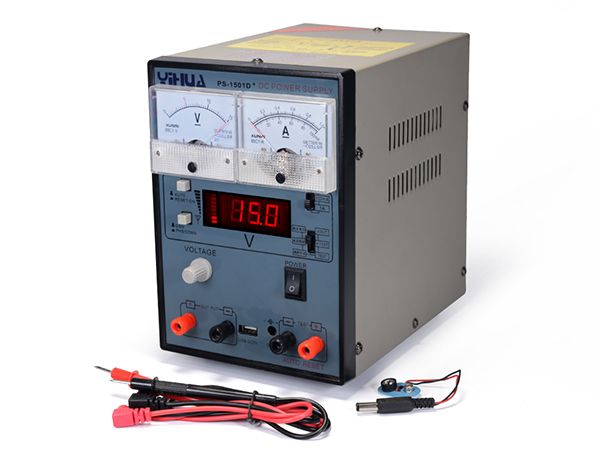

YIHUA-1501D+ DC Power Supply

Features
1. Output voltage: 0-15V, current: 0-1A / 0-100mA
2. YIHUA-1501D+ DC power supply is durable with high stability and reliable quality.
3. It has short circuit protection and automatic recovery function.
4. This device is designed with a voltage test function. The test voltage range is from 0V to 49.9V.
5. The DC power supply can detect mobile phone signals including GSM, CDMA, and PHS.
6. Additionally, the product has the on-off test and 5V/9V DC output functions.

Parameters

Machine
Rated Voltage AC220V 50Hz
Whole Machine Power 20W
Working Environment 0 ~ 40 ℃ relative humidity < 80%
Storage Environment -20 ~ 80 ℃ relative humidity < 80%
Dimensions 205*140*145cm
Weight 1.91KG
Performance
Output Voltage 0 ~ 15V
Output Current 0-1A/0-100mA
Source Effect 1.5mV
Loading Effect ≤0.13%
Ripple and Noise ≤4mV
Power Stability ≤0.5%
Measurement Accuracy 0.1V
Protected Mode Short circuit over-current protection, automatic recovery function
Mobile Phone Signal Indicator GSM CDMA PHS
Phones Emission Interference Anti-interference

Application
This product is mainly used as the 0-15V DC power output or used to test 0~49.9V DC voltage. Its output current is 0-100mA. Therefore, it offers more accurate test result. The DC power supply device is widely applicable for mobile phone maintenance and other related industries.

Related Names
Variable Power Supply | Current Controlled Power Supply | Mobile Phone Repair Power Source
