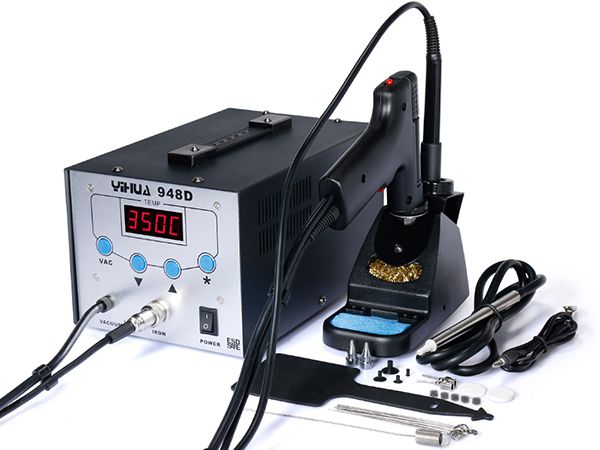

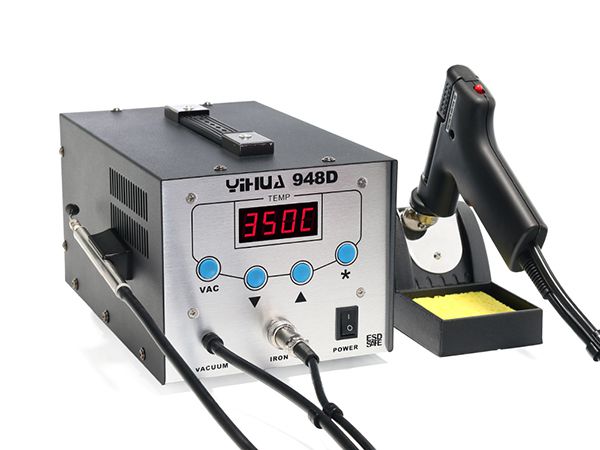

YIHUA948D/948D upgrade version high frequency 3in 1 electric suction tin/gun to tin

Model: YIHUA 948D/948D

1. The high-frequency soldering station adopts PID programmable temperature control technology with an implantable highest-precision PID program for high-speed tracking and detection of actual desoldering gun and soldering iron temperatures with real-time temperature correction. Miraculous temperature compensation speeds allow for minimal temperature error for temperature stability and compensation speeds vastly superior to similar products.
2. Equipped with a suction pen to help remove IC.
3. Anti-static design prevents electrostatic component damage or leakage.
4. Adopts an isolation transformer for power supply to heating elements and automatic shutoff functionality when the high-frequency soldering iron handle or desoldering gun handle is removed for safety and reliability.
5. Portable built-in vacuum with strong suction does away with external vacuum systems.
6. This soldering equipment has the following user-friendly design features

A. Celsius/Fahrenheit temperature display
Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices.

B. Sleep function
Soldering iron automatic detection of their work status are not in use in a quiescent state, arriving to set the sleep time, the temperature of the iron automatically lower the temperature to 200 ° C enter into sleep state, can effectively prevent the oxidation of iron head and prolong the iron tip service life, energy saving and environmental protection. The sleep time can be set range: 1 to 99 minutes in 1 minute steps, users can be set based on usage, if you do not need a soldering iron sleep, the sleep time is set to---.
Wake/Sleep Mode
a. Shake soldering handle up and down several times or flick the red switch on the suction gun once.
b. Press any one button.
c. Turn the power switch on and off.

C. Automatic shutdown function
After machine enter into sleep state, start the timer program, set the shutdown time did not wake up from sleep, automatic shutdown, energy saving and environmental protection. Auto power off time setting range: 1 to 99 minutes in 1 minute steps. If you do not need an auto shutdown function, the power off time is set to---.

D. Password Feature
A password must be given to enter the function parameter settings. Function parameters can only be changed after the correct password has been entered, thus preventing operator changes and any impact on operational efficiency.

E. Digital Temperature Correction Feature
Suitable for temperature deviations between actual temperatures and displayed temperatures due to environmental conditions or the replacement of heating cores, iron tops, or other parts which can be corrected with this feature.
7. With a unique tin suction nozzle and heating pipe design, solder can be inhaled through filters in a molten state without the need for regular maintenance, thereby delivering greater efficiency.
8. Adopts silicone heat-resistant tubing to prevent heat generation and contact damage.
9. The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.
10. YIHUA948D upgrade version soldering tools have all above 948D feature, also add to 90W high-frequency soldering iron handle, so it with suction tin gun and high-frequency welding station function, two kinds of features intelligent recognition interchangeable. Need to use high-frequency welding units handle the suction gun unplugged, connect the high-frequency welding units handle, machine intelligence to identify and read high-frequency welding table once the temperature setting parameters. If you need to exchange suction tin gun, the high-frequency welding units handle removed, connected to the suction gun handle, the machine automatically identify the suction tin gun temperature parameters.

Model: YIHUA948D/948D upgrade version high-frequency soldering station
Input voltage: AC 220V±10% 50HZ( 110V±10% 50HZ)
Power: Suction gun: 130W high frequency / soldering station iron power is 90W high frequency
Temperature range: 200°C-480°C
Display method: LED digital
Heating element voltage: AC 36V ±10% f=380KHz
Desoldering pump power: 12W
Vacuum pressure: Max . 50Kpa (375mmHg)
Weight: 5.7kg/pcs
Tip of ground impedance: <2ohm
Tip of ground voltage: <2mV
Operating temperature: 0°C~40°C/32°F~104°F
Storage temperature: -20°C-4-80°C/-4°F~-176°F
Storage humidity: 35%~45%
