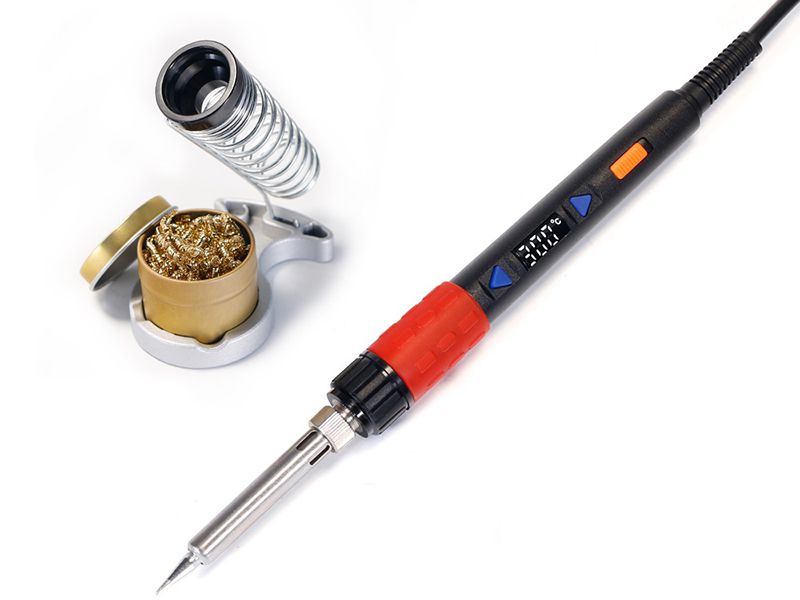

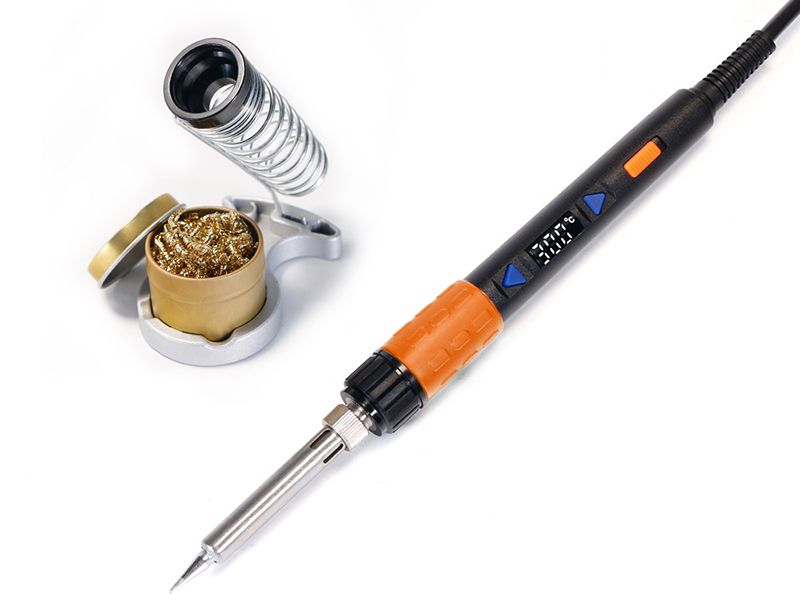

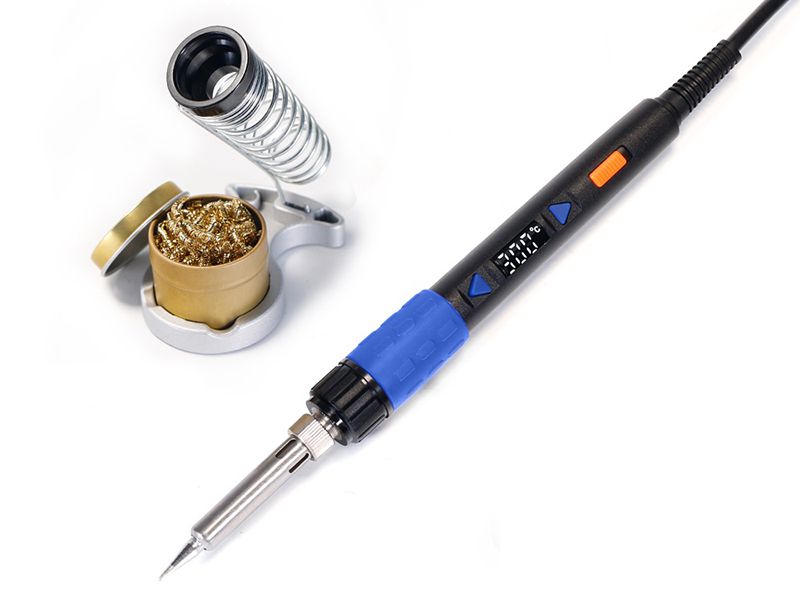

Anti-static Thermostatic Soldering Iron, WEP 928D Series

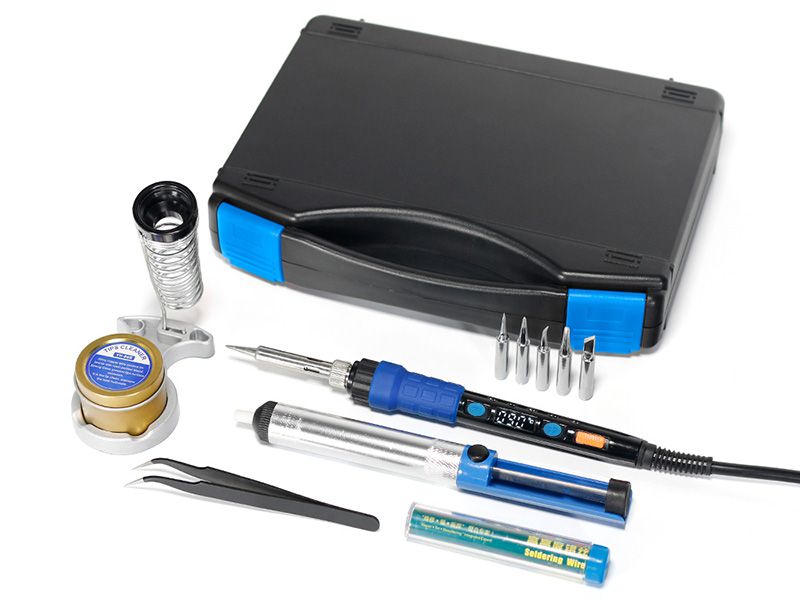

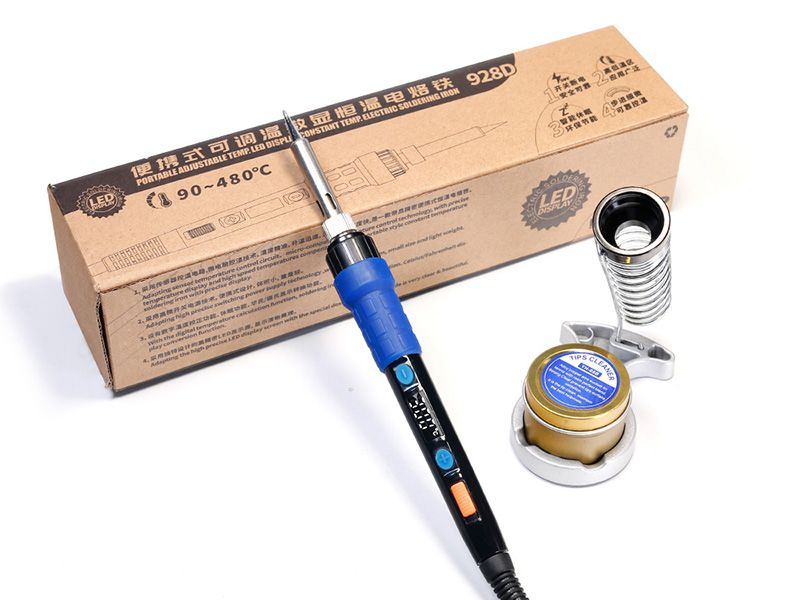

Our anti-static soldering iron is a high-precision portable thermostatic device that adopts a thermostatic sensor that works in cooperation with microcomputer temperature control technology to accurately monitor the soldering temperature with rapid heating speed. For user convenience, we provide a set of components including a clean soldering wire, tip cleanser, portable soldering iron holder, tool box, etc.

Parameters

Item 928D 928D-II 928D-III
Power Supply AC220V±10%50Hz/AC110V±10%60Hz
Power 65W 65W 65W/90W/110W
Temperature Range 90~480℃/194~896℉
Net Weight 104g 140g 140g
Temperature Stability ±2℃(Static)
Temperature Display LED
Work Environment 0~40℃/32~104℉
Storage Temperature -20~80℃/-4~176℉
Storage Humidity 35%~45%
Iron tip ground impedance <2Ω
Light / Bright LED lightx3 /
  • Anti-static Thermostatic Soldering Iron, WEP 928D Series
  • Anti-static Thermostatic Soldering Iron, WEP 928D Series
  • Anti-static Thermostatic Soldering Iron, WEP 928D Series
Features
  • Accurate Thermostatic Control
    If we set the working temperature at a constant 300℃, the soldering iron will automatically heat up to 300℃ and the heater will maintain the soldering iron temperature by reasonable compensation if the internal thermostatic sensor detects any temperature fluctuation.
  • Sleep Mode
    The soldering iron automatically goes to sleep if it is left in still motion for more than 10 minutes, and the temperature will decrease down to 200℃, this prevents the iron tip from oxidization or other damage and there is no need to wait for it to heat up for the next use.

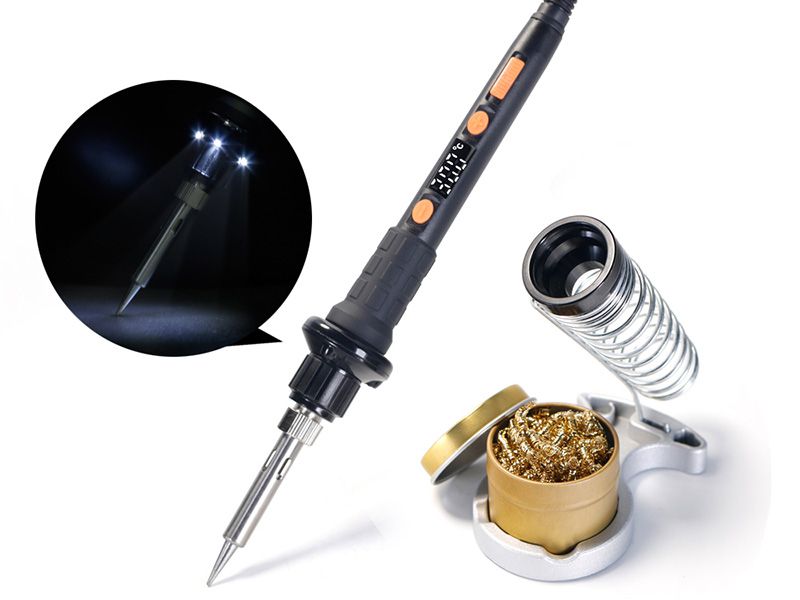

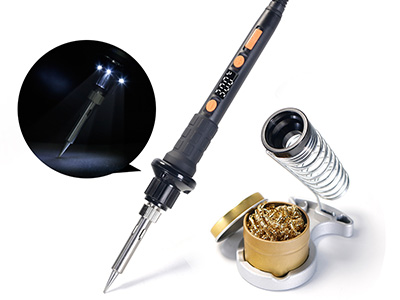

  • The 928D-II series soldering iron is equipped with a spot light, it makes soldering safer and more convenient in dark areas and other extreme environment.
