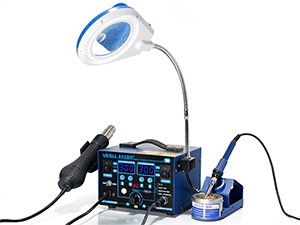

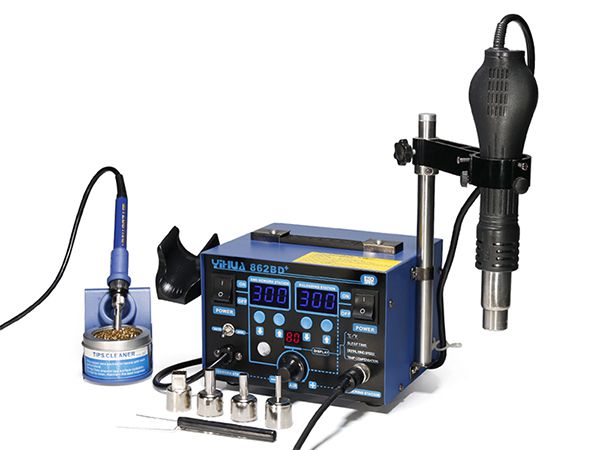

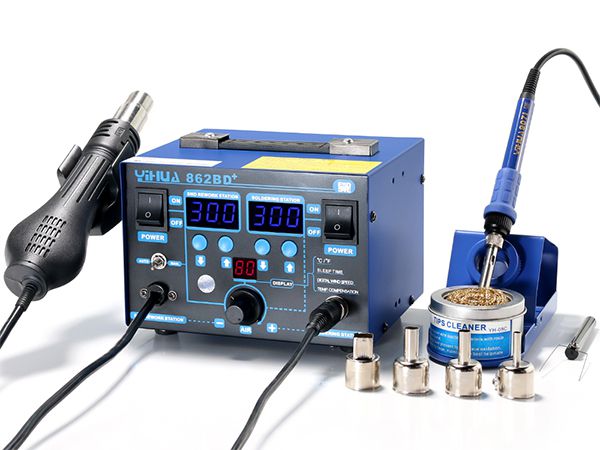

- YIHUA-862BD+ SMD Hot Air Rework Station with Soldering Iron
YIHUA-862BD+ SMD Hot Air Rework Station with Soldering Iron
Features- YIHUA-862BD+ SMD hot air rework station with soldering iron is equipped with the unique ABS fan which has the antilock function. The fan stops working when facing with the abnormal conditions. Additionally, the system will automatically cut off the air gun power, once the temperature is out of control. Consequently, both safe environment and user’s safety can be guaranteed.
- It is special in layout design. With the airflow digital display, the airflow can be conveniently adjusted. The adjustable range is from 20 to 80.
- YIHUA-862BD+ is updated from YIHUA-862D+. It is added with the above new features.
| Machine | ||
| Rated Voltage | AC 220V±10% 50Hz | |
| Machine Power | 730W±10% (max.) | |
| The 300 ℃ Isothermal Power (PID controlled energy saving) | 250W ±10% | |
| Working Environment | 0~40℃ Relative humidity < 80% | |
| Storage Temperature | －20~80℃ Relative humidity < 80% | |
| Machine Size | 13.5*15.7*18.5cm | |
| Weight | 4.5KG | |
| Parts | ||
| Item | Hot air gun | Soldering iron |
| Working Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 650W | 75W |
| Temperature Range | 100℃~480℃ | 200℃~480℃ |
| Mode of Airflow | Brushless fan | --- |
| Airflow | 120L/min (max) | --- |
| Temperature Stability | ±15℃ (static) | ±10℃ (static) |
| Display | LED (red/green) | LED (red/green) |
| Temperature Correction | PID digital program proofreading | PID digital program proofreading |
| PID Temperature Cycle | Fast 200ms | Fast 200ms |
| Heater | Heating core ceramics heater | Imported high-power heater |
| Tips to Ground Impedance | --- | < 2Ω |
| Tips Voltage to Ground | --- | < 2mV |
Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (10mm, 8mm, 5mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc
Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
Related Names
Surface Mount Soldering Kit | Electronics Desoldering Tool | Micro Soldering Equipment
If you need quick after-sales support
Please don't hesitate to send an email to yh9@yihua-gz.com!
