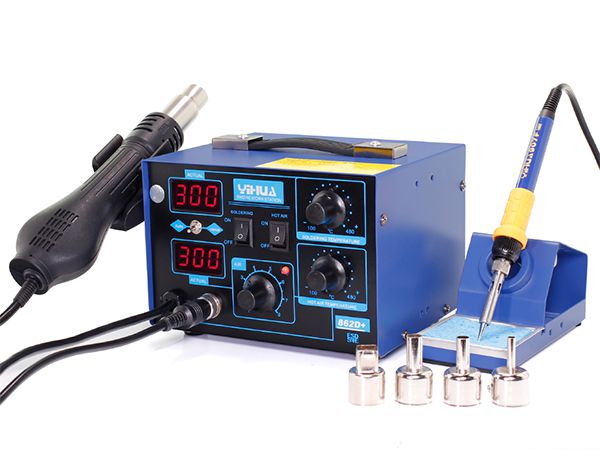

YIHUA-862D+ SMD Hot Air Rework Station with Soldering Iron

Features
1. Air gun of YIHUA-862D+ SMD hot air rework station with soldering iron has the manual or automatic function, with which it can be set according to the application environment. When the air gun is frequently used, it can be manually adjusted to avoid the repeated heating time, thus improving the working efficiency.

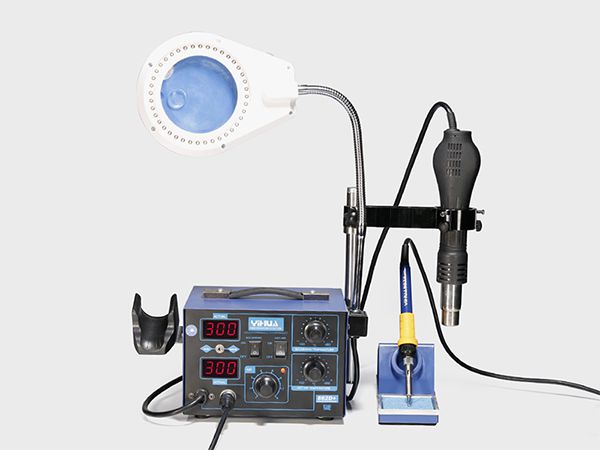

2. If necessary, the machine can be added with the air gun handle stand, offering convenience for the dismantling and soldering of large chips.

Parameter

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 730W±10% (max.)
The 300℃ Isothermal Power (PID Controlled Energy Saving) 250W ±10%
Working Environment 0~40℃ Relative humidity < 80%
Storage Temperature -20~80℃ Relative humidity < 80%
Machine Size 13.5*15.7*18.5cm
Weight 4.5KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 75W
Temperature Range 100℃~450℃ 200℃~480℃
Mode of Airflow Brushless fan ---
Airflow 120L/min (max.) ---
Temperature Stability ±15℃ (static) ±10℃ (static)
Display LED (red/green) LED (red/green)
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Heater Heating core ceramics heater Imported high-power heater
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (10mm, 8mm, 5mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc

Iron Holder: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
