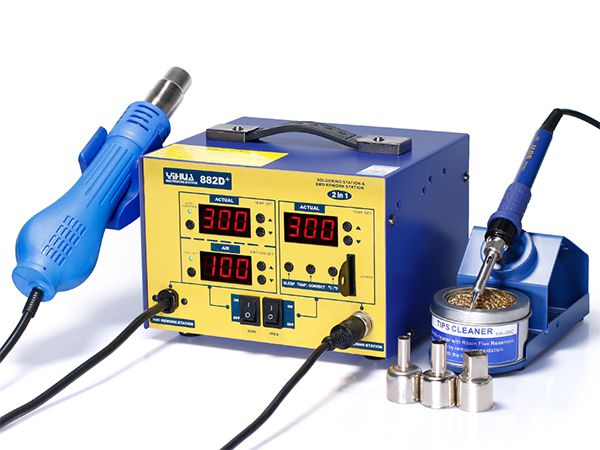

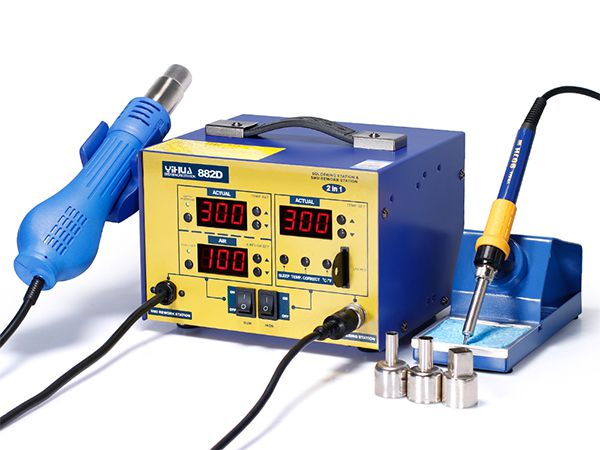

YIHUA-882D/882D+ SMD Hot Air Rework Station with Soldering Iron

Product Features
1. YIHUA-882D/882D+ SMD hot air rework station with soldering iron has the cool air flow/hot airflow function as well as auto/delay time function. You can choose as per your need.
2. Its soldering iron has the sleep function. The sleep time can be set to 2 minutes, 5 minutes, 10 minutes, and 20 minutes. You can choose the suitable one according to the actual needs. If you do not want the iron sleep function, you can set the sleep time value to zero.
3. Card lock function is also available. Only after you have plugged in the card that you can operate the equipment. Such card authorization operation can avoid the illegal authorization operation. Therefore, this rework soldering station is extremely suitable for standard operations.


Rated Voltage AC 220V±10% 50Hz
Machine Power 730W±10% (max.)
300℃ Isothermal Power (PID controlled energy saving) 250W ±10%
Working Environment 0 ~40℃ Relative humidity< 80%
Storage Temperature -20~80℃ Relative humidity< 80%
Machine Size 13.5*15.7*18.5cm
Weight 4.5KG
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 75W
temperature Range 100℃~480℃ 200℃~480℃
Mode of Airflow Brushless fan ---
Airflow 120L/min (max.) ---
Temperature Stability ±2℃ (static) ±2℃ (static)
Display LED (red/green) LED (red/green)
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Heater Heating core ceramics heater Common metal heater (882+ use imported high-power heater)
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzle: 3pcs (5mm, 8mm, 10mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc

Iron Holder: 1pc
Power Plug: 1pc

Application of YIHUA-882D+ SMD Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
