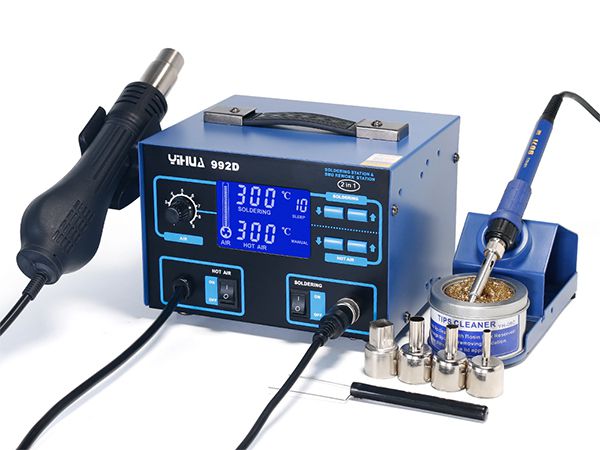

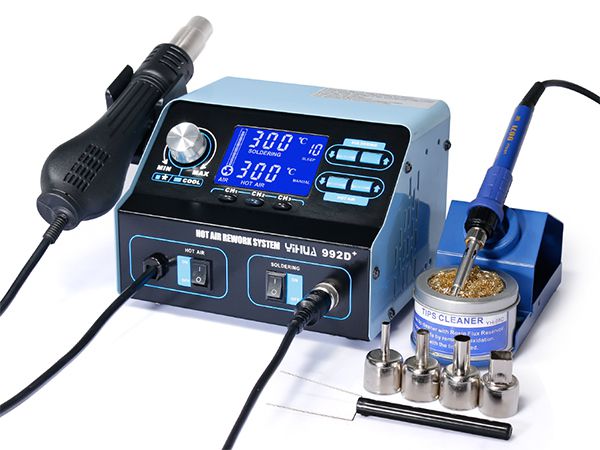

YIHUA-992D/992D+ 2 in 1 LCD SMD Hot Air Rework Station with Soldering Iron
Features- YIHUA-992D/992D+ 2 in 1 LCD SMD hot air rework station with soldering iron has a large liquid crystal display. With the LCD display, all the performance indexes are clear at glance. The dynamic display of air speed is extremely beautiful and elegant in appearance.
- Various functions are designed on the pretty blue housing, thus to make our equipment extremely professional.
- With the unique ABS air fan antilock function, the YIHUA-992D+ 2 in 1 hot air rework station with soldering iron will stop working in case of abnormal conditions. Once the temperature is out of control, its system will instantly cut off the power supply of the air gun, safeguarding the user and environment.
- Thanks to the SAMSUNG SCM and PID program, the gun airflow temperature and iron temperature can be real-time tracked, corrected. Thus, the stable airflow temperature can be ensured. The temperature fluctuation is within ±1℃.
| Machine | ||
| Rated Voltage | AC 220V±10% 50Hz | |
| Machine Power | 720W±10% (maxi.) | |
| 300 ℃ Isothermal Power (PID controlled energy saving) | 250W ±10% | |
| Working Environment | 0~40℃ Relative humidity < 80% | |
| Storage Temperature | -20~80℃ Relative humidity < 80% | |
| Machine Size | 13.5*15.7*18.5cm | |
| Weight | 4KG | |
| Parts | ||
| Item | Hot air gun | Soldering iron |
| Working Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 650W | 75W |
| Temperature Range | 100℃~480℃ | 200℃~480℃ |
| Mode of Airflow | Brushless fan | --- |
| Airflow | 120L /min(max) | --- |
| Temperature Stability | ±1℃ (static) | ±1℃ (static) |
| Display | LED (red/green) | LED (red/green) |
| Temperature Correction | PID digital program proofreading | PID digital program proofreading |
| PID Temperature Cycle | Fast 20ms | Fast 200ms |
| Heater | Heating core ceramics heater | Imported high-power heater |
| Tips to Ground Impedance | --- | < 2Ω |
| Tips Voltage to Ground | --- | < 2mV |
Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (10mm, 8mm, 5mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc
Power Plug: 1pc
Application of 2 in 1 hot air rework station with soldering iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
