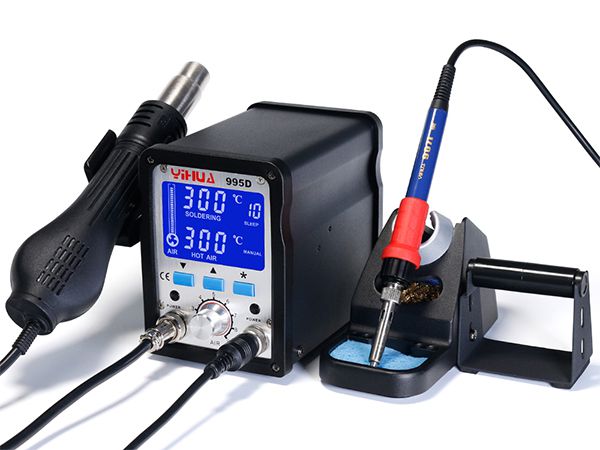

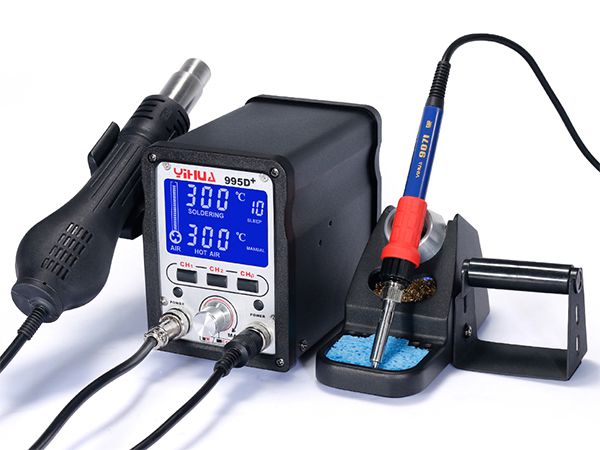

YIHUA-995D/995D+ LCD SMD Hot Air Rework Station with Soldering Iron
Features- YIHUA-995D/995D+ is updated from 995D series. This model is added with the following functions.
- YIHUA-995D/995D+ LCD SMD hot air rework station with soldering iron is designed with three storages: CH1/CH2/CH3. According to the use habit or the device characteristics of assembling and disassembling, the user can set or storage three different gun and iron temperatures / airflow / display mode / iron sleep time / gun AUTO. The setting is manually accomplished.
- This machine is added with the cooling function that can facilitate users in rapidly cooling, dismounting, and cleaning the equipment.
| Machine | ||
| Rated Voltage | AC 220V±10% 50Hz | |
| Machine Power | 720W±10% (max.) | |
| 300 ℃ Isothermal Power (PID controlled, energy saving) | 220W±10% | |
| Working Environment | 0 ~ 40℃ Relative humidity < 80% | |
| Storage Temperature | -20 ~ 80℃ Relative humidity < 80% | |
| Machine Size | 13.5*15*10cm | |
| Weight | 3.5KG | |
| Parts | ||
| Item | Hot air gun | Soldering iron |
| Working Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 650W | 75W |
| Temperature Range | 100℃ ~ 480℃ | 200℃ ~ 480℃ |
| Mode of Airflow | Brushless fan | --- |
| Airflow | 120L/min (max.) | --- |
| Temperature Stability | ±1℃ (static) | ±1℃ (static) |
| Display | LED (red/green) | LED (red/green) |
| Temperature Correction | PID digital program proofreading | PID digital program proofreading |
| PID Temperature Cycle | Fast 20ms | Fast 200ms |
| Heater | Heating core ceramics heater | Imported high-power heater |
| Tips to Ground Impedance | --- | < 2Ω |
| Tips Voltage to Ground | --- | < 2mV |
Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (5mm, 8mm, 10mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc
Power Plug: 1pc
Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
