- YIHUA-862BD+ SMD Hot Air Rework Station with Soldering Iron
YIHUA-862BD+ SMD hot air rework station with soldering iron is equipped with the unique ABS fan which has the antilock function. The fan stops working when facing with the abnormal conditions. Additionally, the system will automatically cut off the air gun power, once the temperature is out of control.

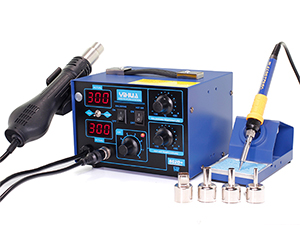

- YIHUA-862D+ SMD Hot Air Rework Station with Soldering Iron
Air gun of YIHUA-862D+ SMD hot air rework station with soldering iron has the manual or automatic function, with which it can be set according to the application environment. When the air gun is frequently used, it can be manually adjusted to avoid the repeated heating time, thus improving the working efficiency.

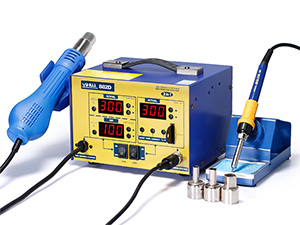

- YIHUA-882D/882D+ SMD Hot Air Rework Station with Soldering Iron
YIHUA-882D/882D+ SMD hot air rework station with soldering iron has the cool air flow/hot airflow function as well as auto/delay time function. You can choose as per your need.

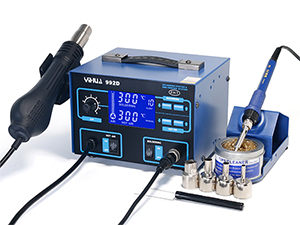

- YIHUA-992D/992D+ 2 in 1 LCD SMD Hot Air Rework Station with Soldering Iron
YIHUA-992D+ 2 in 1 LCD SMD hot air rework station with soldering iron has a large liquid crystal display. With the LCD display, all the performance indexes are clear at glance. The dynamic display of air speed is extremely beautiful and elegant in appearance.

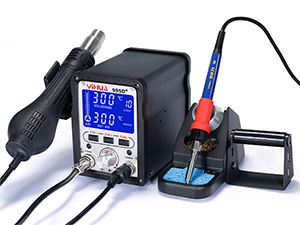

- YIHUA-995D/995D+ LCD SMD Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
Functional Type 2 in 1 Soldering Rework Station
1. The functional type 2 in 1 soldering rework station has fast temperature increasing rate. It only requires 10 seconds to increase the room temperature from 30℃ to 300℃.
2. Its circuit board is manufactured with the double-sided board and surface mount technology, making the whole machine work stably.
3. Both the air gun handle and soldering iron handle adopt the high temperature resistant silicone wire. The silicone wire has no damage within 30s, once it is exposed to the 300℃ soldering iron.
4. Heater of the soldering iron is imported high-power type which comes with fast temperature compensation. Therefore, the 2 in 1 soldering rework station suits to desolder a variety of welded spots, particularly thick terminals, large joints, and the like.
5. All the parts of the functional type 2 in 1 soldering rework station have the self-detecting function. The malfunctions including over heating, short circuit, open circuit, overloading, etc., will be automatically displayed.
6. Behind the whole equipment, there is a general power supply switch. If you don’t use the machine for a long time, you can turn off the switch, so as to save the electricity and ensure the safety.
7. The original ABS fan has the antilock function. Once abnormal operation occurs, it will stop working. In case that the temperature is out of control, the system will automatically cut off the air gun power, so that the safe environment and user’s safety can be ensured.
8. Specially designed with manual and automatic function, the air gun can be set according to the application conditions. When you have to frequently use the air gun, you can manually set it for saving the repeated heating time.
9. Either air gun or soldering iron comes with the -50℃to +50℃ temperature compensation function. In addition, each of them has the ℉/℃ shifting function to meet the client’s application requirements.
10. The soldering iron has the sleep function. The time range is from 0 to 99 minutes. Such function can effectively improve the service life of the soldering iron while conserving energy.
11. Our functional type 2 in 1 soldering rework station applies the SAMSUNG SCM and PID program to track and correct the gun airflow temperature and iron temperature. The airflow temperature is extremely stable, and the temperature fluctuation is within ±1℃.
About PID Program
Our functional type 2 in 1 soldering rework station applies the PID program for controlling the temperature of hot air gun and soldering iron. The PID temperature correction cycle is divided into rapid 20ms, high-speed 100ms, and rapid 200ms. This program guarantees the accuracy and stability of temperature. The PID temperature correction cycle of many YiHua high-end hot air guns is 20ms, while the soldering iron temperature correction cycle is high-speed 100ms or rapid 200ms. Because the temperature sensor is located inside the ceramic heater, a long time is required for the temperature passing to the iron mouth and then back. Therefore, high speed 100ms for each cycle is optimal control speed.
