YIHUA-852D 2 in 1 Hot Air Rework Station with Soldering Iron

Features

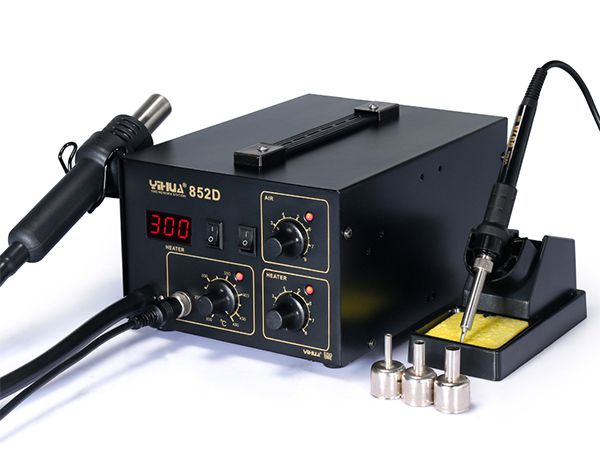

D Type: YIHUA-852D 2 in 1 hot air rework station with soldering iron has a LED Display, which offers convenience for the client to well control the hot air gun temperature. When using, the temperature fluctuation is below 15℃.

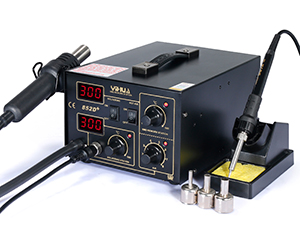

D+ Type: Compared to the D type, this type is added with a LED display to show the hot air gun temperature while precisely control the temperature of soldering iron. Also, the temperature is below 15℃.

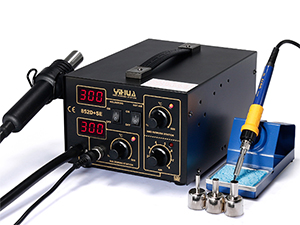

D+SE Type: Unlike the above two types, the soldering iron of D+SE unit has a high-power type heater, which is particularly suitable for large welding spot.

What are the differences between the brushless fan and diaphragm pump?
a. The diaphragm pump comes with strong pressure, and its airflow is 24~28L/min. Differently, a brushless fan has small pressure, soft airflow. Its airflow is 120L/min.
b. A diaphragm pump type machine uses the smaller nozzle, offering larger pressure and stronger wind. It is suitable for de-soldering single small spot. The brushless fan type machine uses the larger nozzles to generate larger airflow. Its hot air area is larger as well. This type of machine is ideal for de-soldering large area, multi-pin integrated chip.

Parameters of Hot Air Rework Station with Soldering Iron

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 600W±10% (max.)
Working Environment 0~40℃ Relative humidity< 80%
Storage Temperature -20~80℃ Relative humidity< 80%
Machine Size 25.5*18.8*12.5cm
Weight 4.5KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 550W 50W
Temperature Range 100℃~450℃ 200℃~480℃
Mode of Airflow Air pump ---
Airflow 24L/min (max) ---
Temperature Stability ±15℃ (static) ±10℃ (static)
Display Red/green LED shows ---
Heater Heating core ceramics heater(I) Imported high-power heater
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Specifications: 1pc
Machine: 1 set
User Manual: 1pc
Air Gun Handle: 1pc
Nozzle: 3pc (13mm,10mm,8mm)
IC Puller: 1pc
Power Plug: 1pc
Handle Frame: 1pc

Application of 2 in 1 Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
