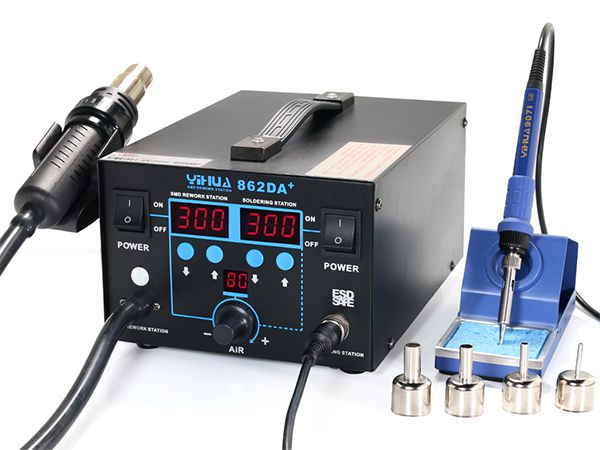

YIHUA-862DA+ 2 in 1 SMD Hot Air Rework Station with Soldering Iron

YIHUA-862DA+ 2 in 1 SMD Hot Air Rework Station with Soldering Iron

Features
1. YIHUA-862DA+ 2 in 1 SMD hot air rework station with soldering iron uses SAMSUNG MCU, PID program to real-time track, correct the air gun air inlet temperature and soldering iron Tsui temperature. The air outlet temperature is highly stable.
2. With speedy heating, it can increase the temperature from 30℃ to 300℃ in 10 seconds.
3. The humanized design is made full used of. Designed with manual / automatic function, the air gun can be set according to the application environment. If it is frequently used, you can set it with your hands, saving the repeated heating-up time.
4. Both air gun and soldering iron comes with the -50℃ to +50℃ temperature compensation function. They also have the ℉/℃ shifting function to meet clients’ different needs.
5. Designed with a sleep function, the soldering iron has a longer service life and consumes less energy.
6. The air volume of the air gun is digitally displayed, and can be conveniently adjusted among 20 to 80.
7. The soldering iron handle applies the silicone wire with excellent high temperature resistance. Additionally, YIHUA-862DA+ 2 in 1 SMD hot air rework station with soldering iron also applies the imported high power heater which comes with fast temperature compensation. Thus, it is not only suitable for desoldering coarse terminals, large welding joints, etc.
9. All parts of the hot air rework station with soldering iron have the self-detection function. They will automatically display the faults such as over temperature, short circuit, open circuit, overload, etc.
10. There is a power switch behind the machine. You can turn off the power for safety and less power consumption, if the hot air rework station is not intended to be used for a long time.

Parameters

Machine
Rated Voltage	AC 220V±10% 50Hz
Machine Power	720W±10% (max.)
300 ℃ Isothermal Power (PID Controlled Energy Saving)	250W±10%
Working Environment	0~40℃ Relative humidity < 80%
Storage Temperature	-20~80℃ Relative humidity < 80%
Machine Size	13.515.718.5cm
Weight	4.5KG
Parts
Item	Hot air gun	Soldering iron
Working Voltage	AC 220V±10% 50Hz	AC 26V±10% 50Hz
Output Power	650W	75W
Temperature Range	100℃~480℃	200℃~480℃
Mode of Airflow	Brushless fan	---
Airflow	120L/min (max.)	---
Temperature Stability	±15℃ (static)	±10℃ (static)
Display	LED (red/green)	LED (red/green)
Temperature Correction	PID digital program proofreading	PID digital program proofreading
PID Temperature Cycle	Fast 200ms	Fast 200ms
Heater	Heating core ceramics heater	Imported high-power heater
Tips to Ground Impedance	---	< 2Ω
Tips Voltage to Ground	---	< 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzle: 3pcs (5mm, 8mm, 10mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc

Iron Holder: 1pc

Application of 2 in 1 Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
