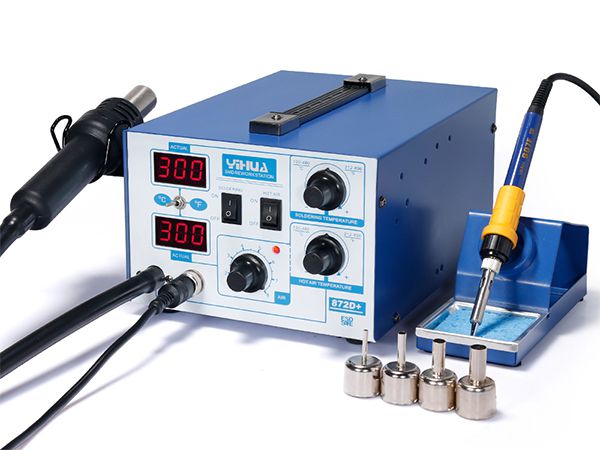

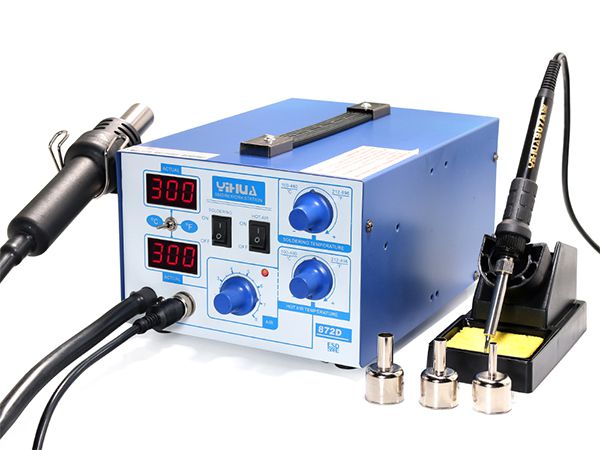

YIHUA-872D+/872D Hot Air Rework Station with Soldering Iron

Features
1. With the SAMSUNG MCU, PID program, YIHUA-872D/872D+ hot air rework station with soldering iron can realize the real-time tracking, correcting of air gun air inlet temperature and soldering iron tips temperature. PID temperature cycle is 200ms.
2. To meet the clients’ needs, its air gun and soldering iron are designed with ℉/℃ shifting function.
3. With the LED display, the temperature of air gun and soldering iron can be precisely controlled. With the LED display, the temperature of air gun and soldering iron can be precisely controlled, thus making the welding easier while preventing the delicate components from being damaged.
4. This YIHUA-872D+hot air rework station with soldering iron,the soldering iron handle is high-import power equipment with rich functions and strong applicability. The combination of air gun and soldering iron makes the desoldering easier.
5. When the blower stops to cut off the heating power, the air gun has airflow protection function.
6. Framer type heater of the air gun is durable, and works stably.
7. The air gun adopts the high-quality air blower. The smaller the nozzle is, the stronger the airflow will be.
8. Made of stainless steel, the gun tube features good thermal conductivity and excellent oxidation resistance.
9. The soldering iron has an imported high-power heater. It is suitable for all sorts of soldering, especially for large joints, coarse terminal, etc.
10. Handles of soldering iron and air gun apply silicone wire, which withstands high temperature and has good flexibility.
11. YIHUA-872D+ hot air rework station with soldering iron is durable and beautiful with high-grade iron alloy materials.

Parameters

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 600W±10% (max.)
Working Environment 0~40℃ Relative humidity< 80%
Storage Temperature -20~80℃ Relative humidity< 80%
Machine Size 25.5*18.8*12.5cm
Weight 4.5KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 550W 50W
Temperature Range 100℃~ 450℃ 200℃~ 480℃
Mode of Airflow Air pump ---
Airflow 24L/min (max.) ---
Temperature Stability ±15℃ (static) ±10℃ (static)
Display Red/green LED shows Red/green LED shows
Heater Heating core ceramics heater(I) Import high-power heater
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (10mm, 8mm, 5mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc

Iron Holder: 1pc
Power Plug: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
