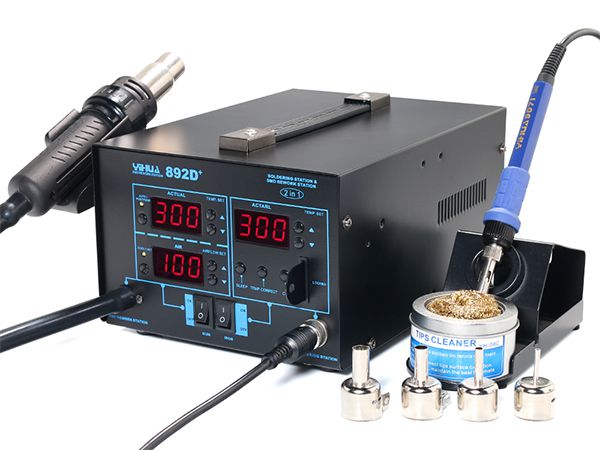

YIHUA-892D+ SMD Hot Air Rework Station with Soldering Iron

Features
1. YIHUA-892D+ SMD hot air rework station with soldering iron has three LED displays, separately used to show the air gun temperature, soldering iron temperature, and air flow. The air flow is conveniently adjusted with the adjustable range from 0 to 100.
2. Only after you have plugged in the card that you can operate the machine, thereby effectively preventing the illegal operation. Our machine is really suitable for the standardized operation.
3. SAMSUNG MCU, PID program are used to real time track, correct the air gun air inlet temperature and soldering iron Tsui temperature. The PID temperature cycle is 20ms. In addition, the air outlet temperature is highly stable with the temperature fluctuation range of ±1℃.
4. The air gun comes with manual / automatic function. It can be set in accordance with the application environment. When the user has to frequently use the air gun, you can use your hands to set it, saving the repeated heating time.
5. Either air gun or soldering iron comes with the -50℃to +50℃ temperature compensation function. In addition, each of them has the ℉/℃ conversion function to satisfy the client’s use requirements.
6. The soldering iron of this hot air rework station has the sleep function. Therefore, it is more durable and energy-saving. The time range is from 0 to 99 minutes.
7. Heater of the soldering iron is imported high-power type which comes with fast temperature compensation. Additionally, the soldering iron handle wire applies the high temperature resistant silicone wire. Therefore, the soldering iron suits to desolder a variety of welded spots, particularly thick terminals, large joints, and the like.
8. All the parts of YIHUA-892D+ SMD hot air rework station with soldering iron have the self-detecting function. They can automatically display malfunctions including over heating, short circuit, open circuit, overloading, etc.

Parameters

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 700W±10% (max.)
Constant Power
(rapid PID control, energy saving)
200W±10%
Insulation Test AC1500V 0.4A 60S
Working Environment 0~40℃ Relative humidity < 80%
Storage Temperature -20~80℃ Relative humidity < 80%
Machine Size 25.5*18.8*12.5cm
Weight 5.2KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 550W 75W
Temperature Range 100℃ ~ 450℃ 200℃ ~ 480℃
Mode of Airflow Diaphragm pump spiral wind ---
Airflow 28L/min (max.) ---
Temperature Stability ±15℃ (static) ±10℃ (static)
Display Red/green LED shows Red/green LED shows
Heater Ceramic skeleton heater Import high-power heater
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (10mm, 8mm, 5mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc

Iron Holder: 1pc
Power Plug: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
