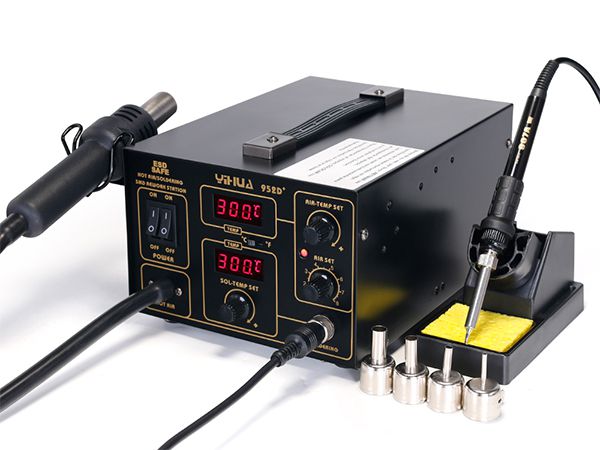

YIHUA-952D+ Hot Air Rework Station with Soldering Iron

Features
1. YIHUA-952D+ hot air rework station with soldering iron uses SAMSUNG SCM, PID program to real-time track the air gun outlet temperature and iron tip temperature. The air flow temperature is highly stable.
2. Either of the air gun and soldering iron comes with ℉/ ℃ display switching function.
3. The air gun handle adopts the high temperature resistant silicone wire, which has no damage in 30 seconds when on exposure to the 300℃ soldering iron.
4. Each part of the hot air rework station with soldering iron is designed with self-detection function. It will automatically prompt the faults such as overheating, short circuit, open circuit, overloading, etc.
5. Our high-power equipment is a combined product with air gun and soldering iron. With various functions and strong applicability, it makes the desoldering easier.
6. Due to the precise temperature control design, temperature of air gun and soldering iron can be accurately controlled. With our machine, you can easily conduct the soldering without damaging the delicate components.
7. The air gun is added with a new airflow protection function, when the air fun stops to cut off the heating power.
8. A high quality, powerful air pump is applied. The smaller the nozzle is, the more powerful the air flow will be.
9. YIHUA-952D+ hot air rework station with soldering iron adopts the qualified skeleton type heater. This heater offers high efficiency for a long period.
10. Made of high-grade stainless steel, the gun tube comes with good heat conductivity and strong antioxidant performance.
11. Last but not the least, the rework station is beautiful and durable.

Parameters

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 700W±10% (max.)
Constant Power
(rapid PID control energy saving)
200W ±10%
Insulation Test AC1500V 0.4A 60S
Working Environment 0 ~ 40℃ Relative humidity < 80%
Storage Temperature -20 ~ 80℃ Relative humidity < 80%
Machine Size 25.5*18.8*12.5cm
Weight 5.2KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 550W 50W
Temperature Range 100℃ ~ 450℃ 200℃ ~ 480℃
Mode of Airflow Diaphragm pump ---
Airflow 24L/min (max.) ---
Temperature Stability ±15℃ (static) ±10℃ (static)
Display Red/green LED screen Red/green LED screen
Heater Ceramic skeleton heater Import high-power heater
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzle: 3pcs (5mm, 8mm, 10mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc

Iron Holder: 1pc
Power Plug: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
