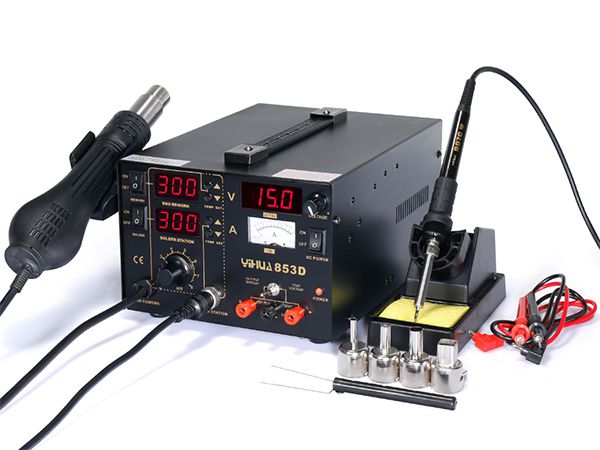

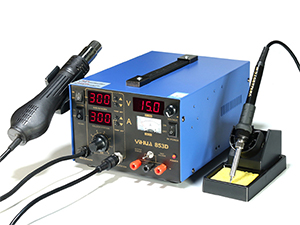

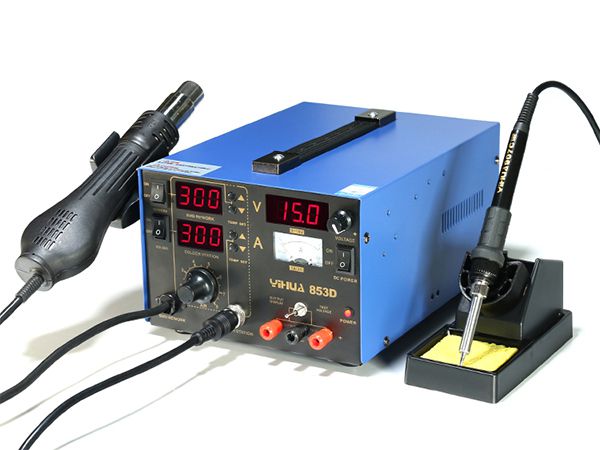

YIHUA-853DA/853D Series/853D+ Soldering Rework Station with Power Supply

Features
1. YIHUA-853DA/853D Series/853D+ soldering rework station with power supply is made with the latest SMD technology. It has a dual LED display to show the temperature of hot air gun and electric soldering iron. Coupled with the PID program, the temperature can be precisely controlled. Our equipment also has the advanced short circuit protection function. Furthermore, it can test the voltage and mobile RF signal.

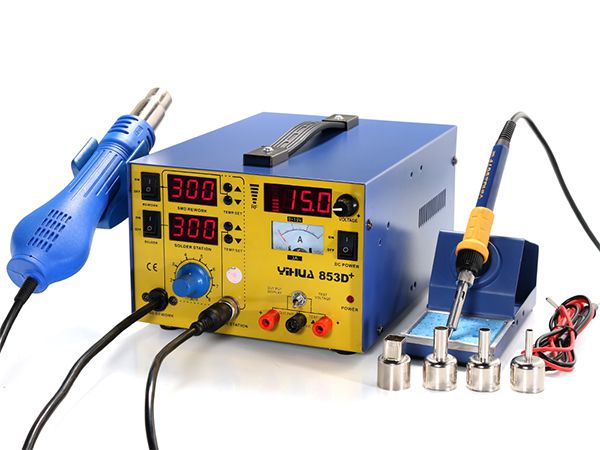

2. The D+ type adopts the high power soldering iron and the power supply part has 15V 3A and 30V 5A. It is suitable for the high-end users, and can meet the requirements of special application environment.

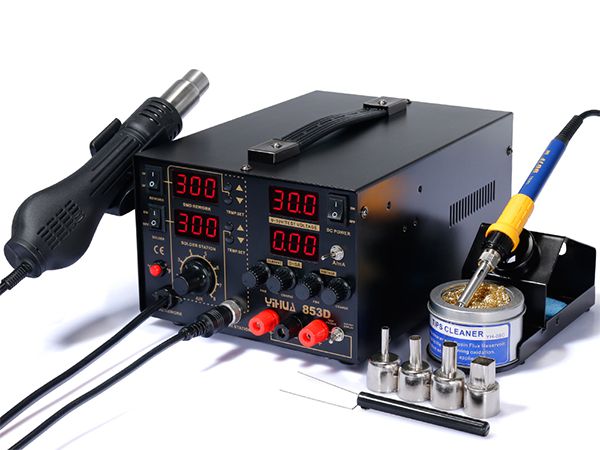

3. Our D 5A type is added with the 30V5A power supply, in addition to the hot air gun and electric soldering station. It is a multifunctional machine. The D 5A type is added with 30V 5A DC power supply and 0~49.9V test voltage, in addition to the hot air reworks and soldering iron. It is a multifunctional machine.
4. DA type and D type has the same functions. Differently, the DA air gun type is added with an air pump rather than a brushless fan.

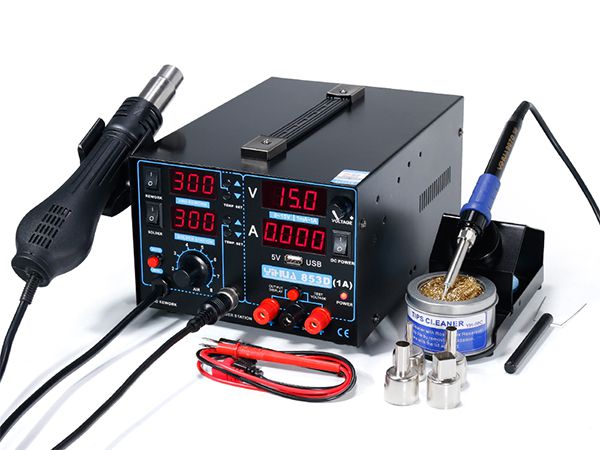

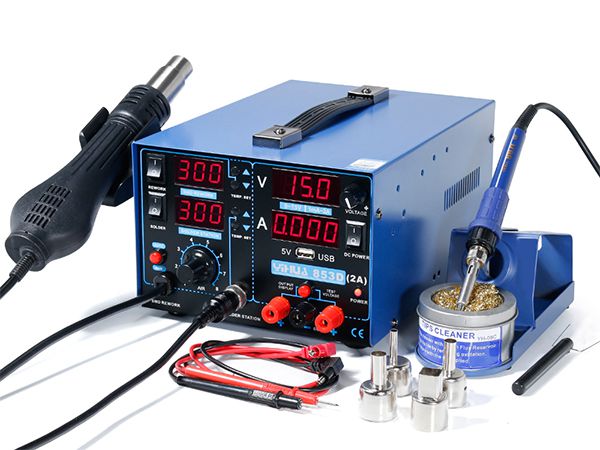

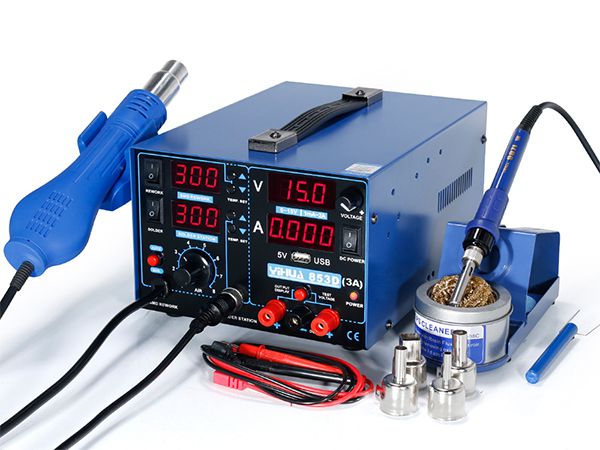

5. The 853D USB type is our new item, supporting power supply of: 0~15V/0~3A, 0~2A, 0~1A
1) The soldering rework station is fitted with a 2A/3A Imported heater, 75W soldering iron and a transformer with bigger power.
2) Soldering iron sleep mode function: When the soldering iron is in idle state for 10 minutes, it will enter into SLEEP MODE; Air gun handle have auto./manual conversion function and °c/°F conversion function,can choose one of function.
3) USB connection makes the soldering rework station convenient for connection with other equipment.
4) Instead of conventional pointer display, the rework station innovatively utilizes the LED digital display. Supporting 4-digit display, the display unit can display currents in both ampere (A) and milliampere (AM).

Parameters

Rated Voltage AC 220V±10% 50Hz
Power ≤800W
300 ℃Thermostat power of (high-speed PID programmable energy saving) 250W ±10%
Working Environment 0 ~ 40℃ relative humidity < 80%
Storage Environment -20 ~ 80℃ relative humidity < 80%
Dimensions 255*188*125mm
Weights 853D 1A: 4.06KG 853DA 1A: 5.25KG
Parts
Item Hot air rework Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 550W / 700W 50W
Temperature Range 100℃ ~ 480℃ 200 ℃~ 480 ℃
Airflow Type(853D)
(853DA)
Brushless fan
Diaphragm pump
---
Air Flow(853D)
(853DA)
120L/min
28L/min (Max.)
---
Temperature Stability ±2℃ (Static) ±2℃ (Static)
Display Type Red / green LED display Red / green LED display
Temperature Correction Type The PID digital program proofreading The PID digital program proofreading
PID Temperature Correction Cycle Rapidly 20ms High-speed 100ms
Heating Elements Ceramic skeleton heater Common heater
Tip Ground Impedance --- < 2Ω
Tip of Ground Voltage --- < 2mV
DC Power Supply
Output Voltage 0-15V/0-30V
Output Current 0-1A/0-3A/0-5A
Protection Type Short-circuit over-current
Voltage Display Type red/ green LED display
Current Display Type Pointer display
Load Stability < 0.01 ±2mv
Ripple dB < 1mvrms (virtual value)

Application
YIHUA-853DA or YIHUA-853D soldering rework station with power supply is ideal for various electronic components soldering or desoldering, for instance, SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. It is also suitable for other purpose, including thermoshrinking, paint drying, adhesive removal, thawing, warming, plastic welding, etc.

This soldering rework station is chiefly applied in the following fields:
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
