YIHUA-968DB+/968DA+/968DA++ Soldering Rework Station with Smoke Absorber

1. SAMSUNG MCU and PID program are applied for the real-time tracking and correction of the air gun temperature and soldering iron temperature. Therefore, YIHUA-968DB+ soldering rework station with smoke absorber offers highly stable temperature.

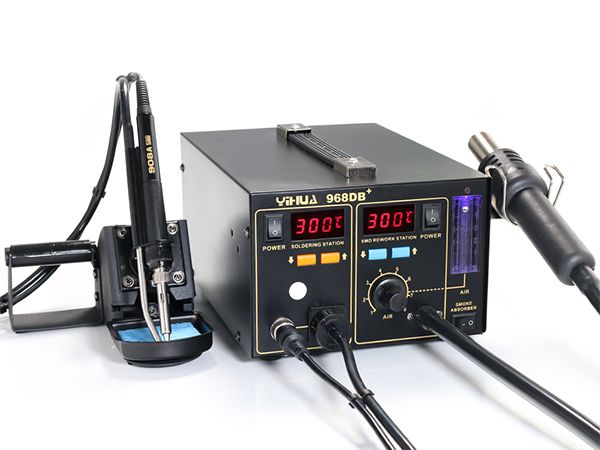

2. The 968DB+ type has an intuitive wind speed ball to dynamically indicate the air pump air flow.

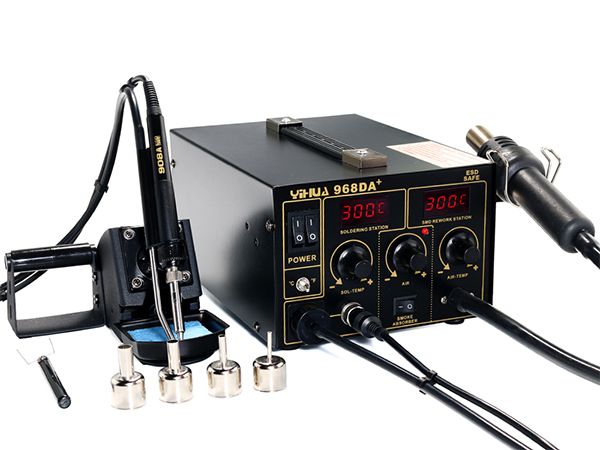

3. YIHUA968DA+/968DB+ soldering rework station has the Celsius / Fahrenheit temperature display function. The user can choose according to the use habit.

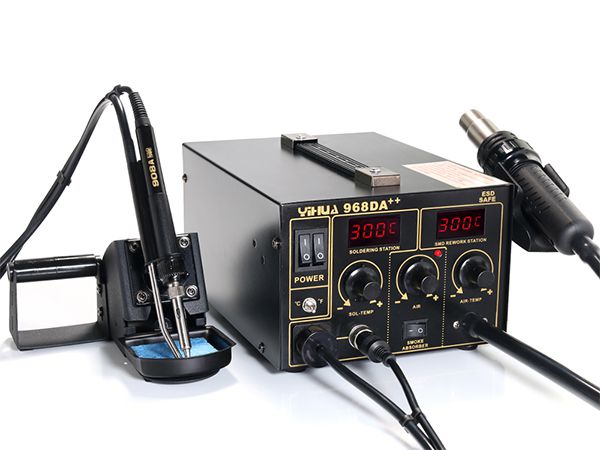

4. YIHUA968DA++ soldering rework station has the automatic / manual conversion function .
5. The soldering iron has the smoke absorption function. The smoke generated by the soldering iron will be absorbed and filtered by the dust proof piece. Such function can create a healthy, clean working environment for the users.
6. If necessary, the YIHUA-968DB+/968DA+/968DA++ soldering rework station can be matched with a vacuum pencil. The vacuum pencil is used to such up IC.


Machine Unit
Rated Voltage AC 220V±10% 50Hz
Power 720W±10% (Max.)
300 ℃Thermostat Power (high-speed PID programmable energy saving) 250W ±10%
Working Environment 0 ~ 40℃ relative humidity < 80%
Storage Environment -20 ~ 80℃ relative humidity < 80%
Dimensions 255*188*125mm
Weight 4.83KG
Item Hot air rework Soldering iron
Work Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 550W 75W
Temperature Range 100℃ ~ 480℃ 200℃ ~ 480℃
Airflow Type Diaphragm pump spiral wind ---
Air Flow 28L/min (Max.) ---
Temperature Stability ±1℃ (Static) ±1℃ (Static)
Display Type LED display LED display
Temperature Correction Type The PID digital program proofreading The PID digital program proofreading
PID Temperature Correction Cycle Rapidly 20ms High-speed 100ms
Heating Elements Ceramic skeleton heater Imported heater
Tip Ground Impedance --- < 2Ω
Tip of Ground Voltage --- < 2mV

YIHUA-968DB+ soldering rework station with smoke absorber is suitable for soldering or de-soldering a variety of electronic components, including SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. This equipment can be used for thermoshrinking, paint drying, adhesive removal, thawing, warming, plastic welding, etc.

This soldering station is commonly found in the following areas:
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions

Related Names
Hot Air Soldering Gun Kit | Electronics Rework Station | Lead Free SMT Soldering Station

For after-sales service and technical support, please don't hesitate to contact us by sending mail to yh9@yihua-gz.com !
