YIHUA-850D, YIHUA-850A Hot Air Rework Station

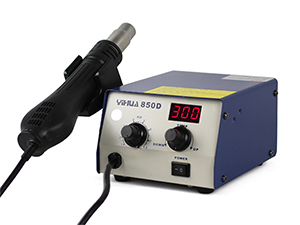

The YIHUA-850D hot air rework station is added with a LED display used to accurately control the temperature, as compared to the YIHUA-850A type. The LED display makes the operation more intuitive.

Parameters

Parameter
Operating Voltage AC 220V±10% 50Hz
Output Power 650W
Working Condition 0~40℃ relative humidity<80%
Storage Temperature -20~80℃ relative humidity<80%
Dimensions 160*145*105mm
Weight 850D: 1.86KG; 850A: 1.46KG
Performance
Item 850D 850A
Temperature Range 100℃~450℃ 100℃~450℃
Display Mode LED digital display ---
Air Supply Mode Brushless fan Brushless fan
Air Volume 120L/min (Max.) 120L/min (Max.)
Temperature Stability ±15℃ (static state) ±15℃ (static state)
Heater Ceramic skeleton heater Ceramic skeleton heater
