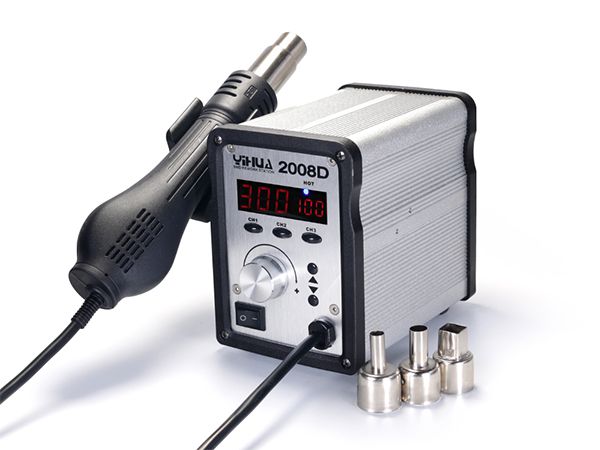

YIHUA-2008D Hot Air Rework Station

Features
1. YIHUA-2008D hot air rework station is small and delicate with the aluminum alloy case and panel.
2. It has three storage locations, separately used to set or store different temperature and air volume values. Based on the actual application requirements, you can speedily adjust the storage unit settings with the shortcut keys. So to speak, our equipment is extremely suitable for the standardized assembly line production.
3. The rework station can achieve the real-time tracking and real-time correction of air outlet temperature, since it is equipped with the microcomputer PID program. The PID temperature correction cycle is 100ms. Due to the rapid correction of the temperature, the equipment is low in power consumption.
4. YIHUA-2008D hot air rework station adopts the brushless fan which comes with long service life but low noise generation. Additionally, it is doubled in working efficiency, because of the high quality heating element used to the brushless fan.
5. Its air gun handle utilizes the high quality skeleton heater. This type of heater is durable in use, and offers high efficiency. Besides that, the air gun handle comes with the security protection function. When power on, the handle must be at frame, so that the machine can start working properly.
6. Finally, our YIHUA-2008D hot air rework station can automatically detect the failures. If there are any failures, it will send out alarming signals.

Parameters

Working Voltage AC 220V±10% 50Hz
Output Power 650W
300℃ Constant Temperature Power (rapid PID program control, energy -saving) 200W ± 10%
Working Condition 0 ~40℃ relative humidity < 80%
Storage Temperature -20 ~80℃ relative humidity < 80%
Dimensions 138*100*150 mm
Weight 1.95KG
Temperature Range 100℃~480℃
Air Supply Mode Brushless fan air supply
Air Flow 120L/min (Max.)
Temperature Stability ±2℃ (static state)
Display Mode LED digital display
Temperature Correction Mode PID Digital program calibrate
PID Temperature Correction Cycle 100ms
Heating Element Ceramic skeleton heater
Timing Heating Function Three memories:
First memory segment defaults to 200oC, 5 seconds;
Second memory segment defaults to 300oC, 17 seconds;
Third memory segment defaults to 240oC, 12 seconds.

Standard Configuration
Desoldering Station: 1pc
User manual: 1pc
Air Gun Handle: 1pc
Nozzle: 3 (5mm, 8mm, 10mm)
IC Extractor: 1pc
Smaller spanner (for nozzles disassembly): 1pc
Power plug: 1pc

Application
YIHUA-2008D hot air rework station can be used to weld SMD components, multi-pin IC, and circuit board components, in the areas including laboratories, schools, electronic production lines, mobile phone repair industry, and home appliance maintenance department.
