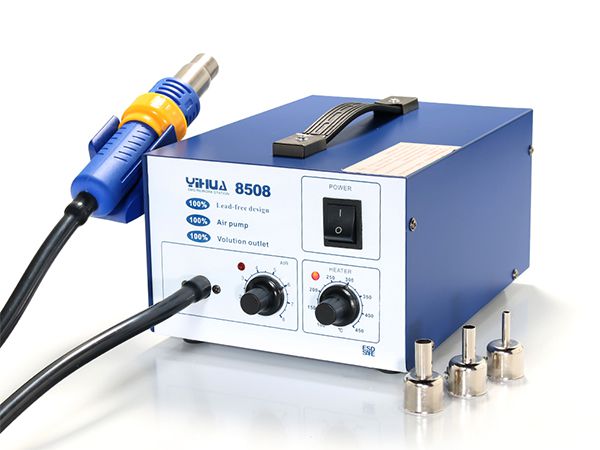

YIHUA-8508 Hot Air Rework Station

Product Features
1. With high quality ferroalloy made housing, YIHUA-8508 hot air rework station is resistant to abrasion and high temperature. It is not easily damaged.
2. Its handle shell is made of special temperature resistant material. It is not only beautiful, but also comfortable to touch.
3. This equipment applies the ceramic skeleton heater which is characterized by high reliability and long service life.
4. Made of stainless steel, its handle tube comes with good thermal conductivity, and is resistant to corrosion and oxidation.
5. Our hot air rework station applies the high quality air pump to make spiral, soft and uniform air flow.

Parameters

Working Voltage AC 220V±10% 50Hz
Output Power 550W
Working Condition 0~40℃ relative humidity< 80%
Storage Temperature -20~80℃ relative humidity< 80%
Dimensions 255*188*125mm
Weight 3.6KG
Temperature Range 100℃~450℃
Air Supply Mode Pump air supply
Air Flow 24L/min (Max.)
Temperature Stability ±15℃ (static state)
Heating Element Ceramic skeleton heater

Standard Configuration
Machine: 1pc
Manual: 1pc
Air gun handle: 1pc
Nozzles: 3pcs (5mm, 8mm, 10mm)
IC extractor: 1pc
Handle frame: 1pc
Power plug: 1pc

Application
Aside from the general type desoldering, YIHUA-8508 hot air rework station is also ideal for small area, high-precision desoldering of SMD components. It suits to desolder various components including SOIC, CHIP, QFP, PLCC, BGA, and many others. If equipped with smaller nozzles, it will offer more powerful wind.

Related Names
Air Pressure Soldering Station | Surface Mount Desoldering Supplies | SMT Components Soldering Machine
