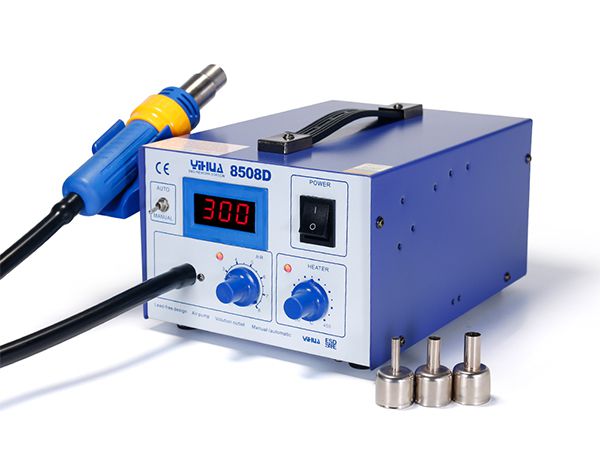

YIHUA-8508D Hot Air Rework Station

1. YIHUA-8508D hot air rework station applies the unique SAMSUNG SCM and PID program, to precisely control the temperature. Through the precise temperature controlling, you can safeguard the dedicate component while desoldering.
2. Its air gun, which is specially designed to manually and automatically operated, can be set according to the application conditions. It can be manually set to save the repeated heating time, if it has to be frequently used.
3. The case is made of high quality ferro-alloy. It withstands high temperature, as well as perfectly resists abrasion and damage.
4. Our hot air rework station applies the unique temperature resistant material as its handle shell. Therefore, its handle is pretty, and comfortable to touch.
5. It adopts the ceramic skeleton heater of high reliability. The heater can be used for a long time.
6. The stainless steel air outlet of the handle comes with good heat conductivity, and perfectly resists abrasion and oxidation.
7. This YIHUA-8508D hot air rework station adopts the high quality air pump to produce spiral, soft and uniform air flow.


Working Voltage AC 220V±10% 50Hz
Output Power 550W
300℃ Constant Temperature Power (Rapid PID program control, energy-saving and province electricity) 200W±10%
Working Condition 0~40℃ relative humidity< 80%
Storage Temperature -20~80℃ relative humidity< 80%
Dimensions 255*188*125mm
Weight 3.6KG
Temperature Range 100℃~450℃
Air Supply Mode Pump air supply
Air Flow 24L/min (Max.)
Temperature Stability ±5℃ (static state)
Display Mode LED
Temperature Correction Mode PID Digital program calibrate
PID Temperature Correction Cycle 200ms
Heating Element Ceramic skeleton heater

Standard Configuration
Machine: 1pc
Manual: 1pc
Air gun handle: 1pc
Nozzles: 3pcs (5mm, 8mm, 10mm)
IC extractor: 1pc
Handle frame: 1pc
Power plug: 1pc

YIHUA-8508D hot air rework station is applicable for a variety of components desoldering, for instance, SOIC, CHIP, QFP, PLCC, BGA, etc. It is particularly suitable for small area, high-precision desoldering of SMD components, in addition to the general purpose desoldering.
