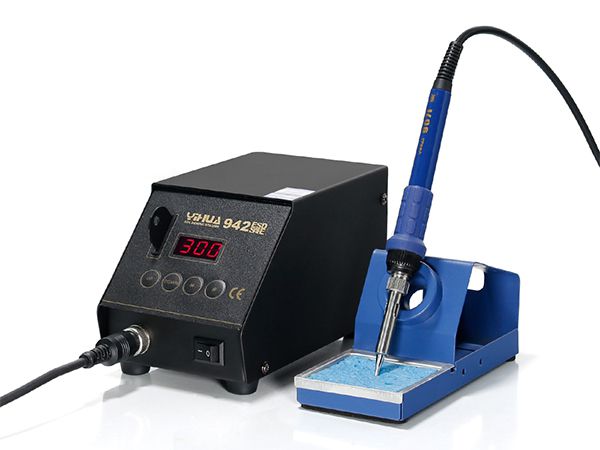

YIHUA-942 Anti-Static Soldering Station

1. YIHUA-942 anti-static soldering station adopts the plug-in type temperature control. That means the soldering temperature can not be changed without the card. Thus, our machine is extremely suitable for standardized operation.
2. Because of the 75W transformer and imported high-power heater, it is particularly applicable for lead-free soldering as well as high or low temperature soldering.
3. SAMSUNG SCM, PID program are applied for the real-time tracking, correcting the air gun air inlet temperature and soldering iron tip temperature. The PID temperature correction cycle is 100ms. The surprising temperature compensation speed makes the machine suitable for all sorts of hostile environment.
4. A fault signal alarming device is added to the YIHUA-942 anti-static soldering station. It will send out alarming signal to suggest the operators check the machine, when the tip temperature is lower than the minimum alarming range, or when the heater, circuit board, or other part breaks down.
5. The equipment is available with the digital type tip temperature correction function. The temperature correction range is from -50℃ to +50℃.
6. It also can operate automatically. This anti-static soldering station can be automatically power off at the fixed time.
7. Anti-static design and stable tip to ground impedance well safeguard sensitive parts and workers.
8. You can choose Fahrenheit or Celsius temperature operation and display.
9. YIHUA-942 anti-static soldering station employs the handle wire made of silicone wire which resists high temperature and has good flexibility. The silicone wire has no damage in 30s when touching with the 300° C iron tips.

Standard Configuration
Machine Unit: 1 set
Air Gun Handle (including a heater and tips): 1pc
Iron Alloy Holder: 1pc
High Temperature Resistant Sponge: 1pc
Manual: 1pc
Key Card: 1c
Power Plug: 1pc


Rated Voltage AC 220V±10% 50Hz
Output Power 75W
Working Environment 0~40℃ relative humidity< 80%
Storage Environment -20~80℃ relative humidity< 80%
Overall Dimensions 18.6*10.2*11CM
Weight 2.8KG
Work Voltage AC 26V±10% 50Hz
Temperature Range 200℃~450℃
Temperature Stability ±1℃ (Static)
Display Mode Red/green LED display
Temperature Correction Type Digital PID correction
PID Temperature Correction Cycle 100ms
Heating Elements Imported high-power heater
Tip to Ground Impedance < 2Ω
Tip of Ground Voltage < 2mV

Because of its high power, fast temperature compensation, and powerful functions, YIHUA-942 anti-static soldering station is fit for research institutes, universities, laboratories, electronics production lines, and other fields where high soldering quality is required. Also, it is appropriate for precision electronic maintenance industries including mobile phone maintenance industry.
