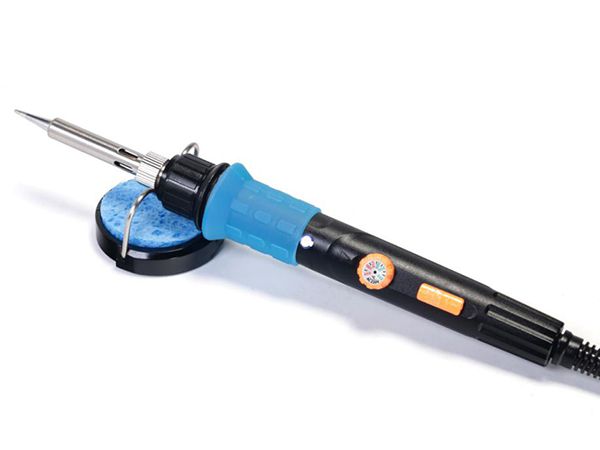

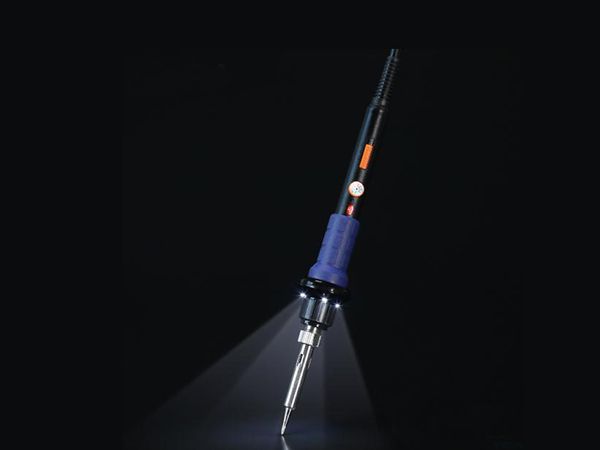

YIHUA 947 Electronic Soldering Iron

1. YIHUA 947 series has exquisite patented design, the use of new environmentally friendly high transparent material, positive transparent, back scrub, integrated mini malist design gives the atmosphere and feel. While the handle central with a high-temperature insulation ring to prevent heat transfer to the handle effectively.
2. YIHUA 947 series electric iron overall stability is much higher.
3. YIHUA 947 series has energy-efficient, while rapid heating, cutting temperature recovery performance.
4. YIHUA 947 series uses internal-heat-type heating core which features high thermal efficiency. It adopts double sided SMT technology with neatly arranged components and strong solder joints inside.
5. YIHUA 947 series has use long-life lead-free solder tips, can be applied to a variety of lead-free soldering processes.
6. YIHUA 947 series has anti-static design, additional alligator clip ground wire, anti-static devices to meet different requirements.
7. YIHUA 947 series adopts a common device design, easy to replace devices
8.YIHUA 947-I/II/III provides five colors for you to choose from including gray, green, blue, white, black. The default color is gray. If you need another color, please note the color you want in your order.

Technical Parameters

Model 947-I 947-II 947-III 947-IV 947-V 947-VII
Power Supply AC220~240V 50Hz / AC110V ±10% 60Hz
Output Power 35/45/60W 60W
Temperature Range 200~450℃ 220~480℃
Switch / / Yes

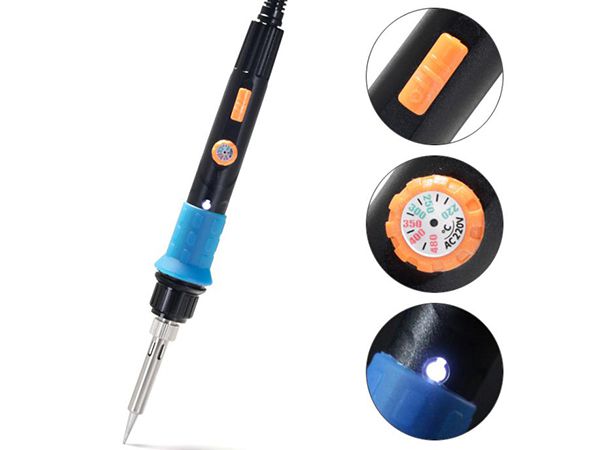

Temperature Control Knob / Yes
Indicator Light / Yes
Weight 0.22kg 0.3kg 0.26kg
Working Temperature 0~40℃
Storage temperature -20~80℃
Storage humidity 35~45%
