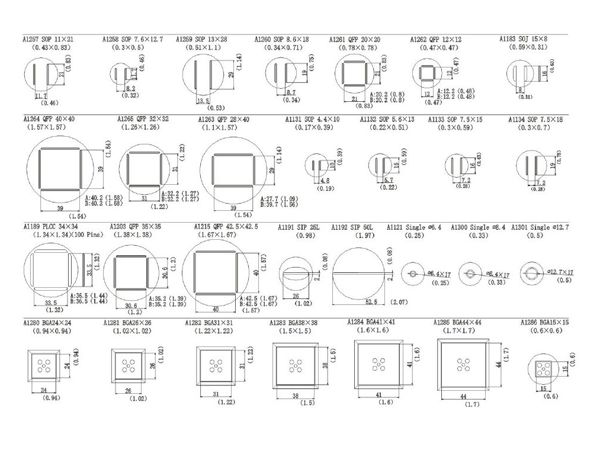

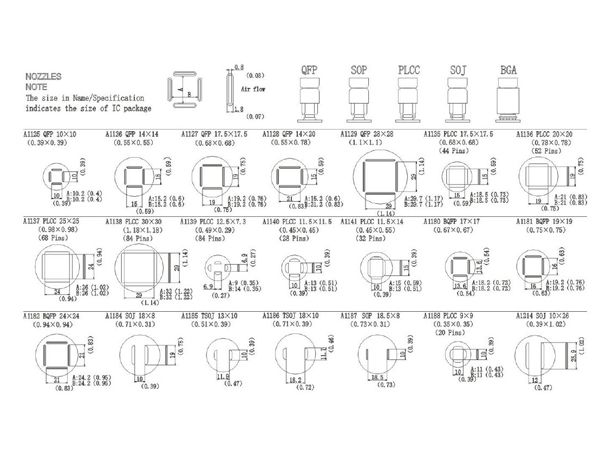

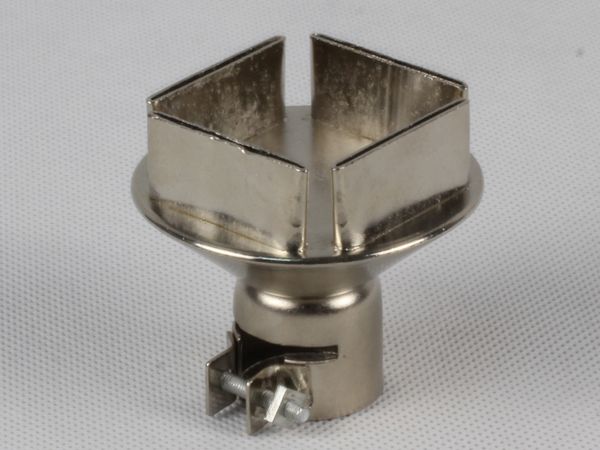

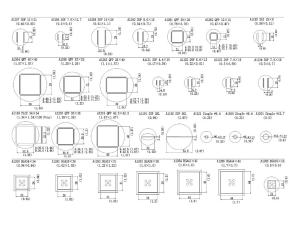

The air gun nozzle is suitable for all pump type and fan type long tube gun handles.

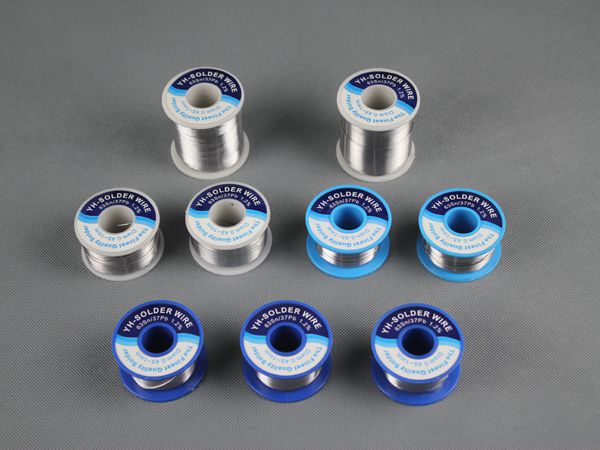

YIHUA wash-free solder wire weighs 50g to 500g. Its diameter range is from 0.3mm to 1.0mm. Mass customization is available upon request.

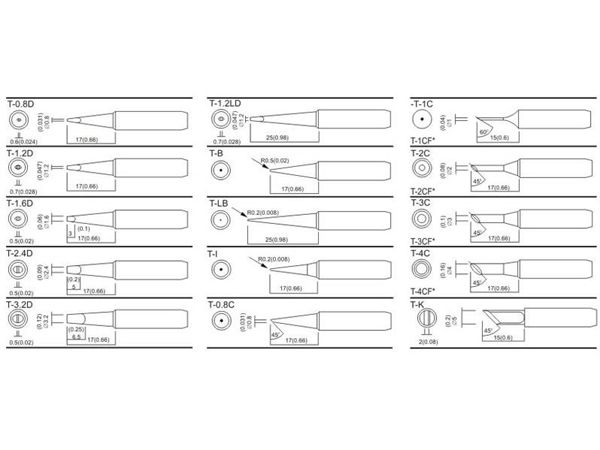

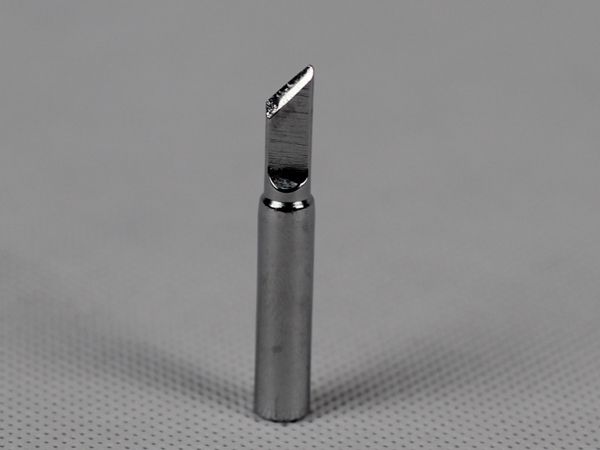

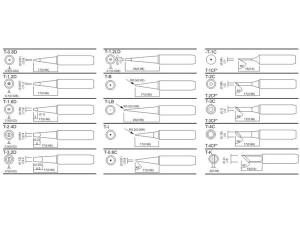

The soldering iron tip is suitable for all YIHUA thermostat soldering station irons. It has been certified by SGS and ROHS.

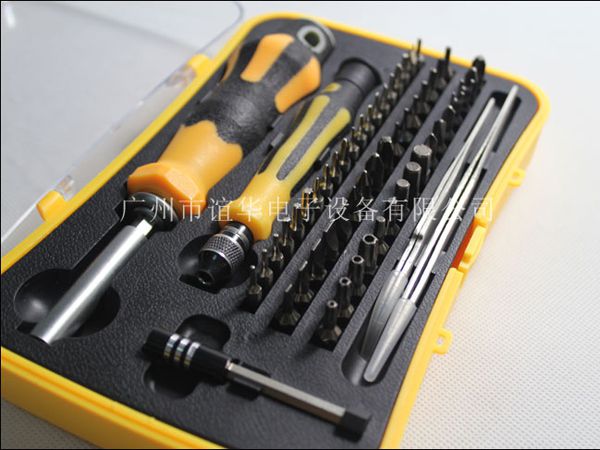

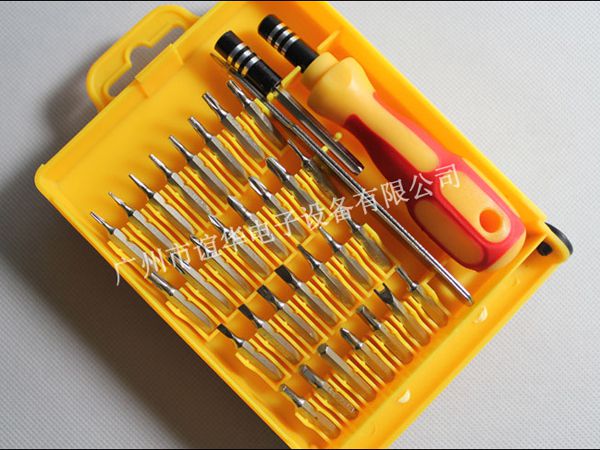

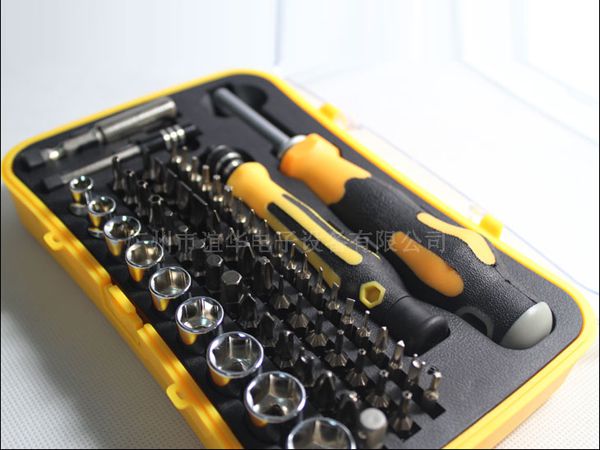

  • Screwdriver 33 in 1 set

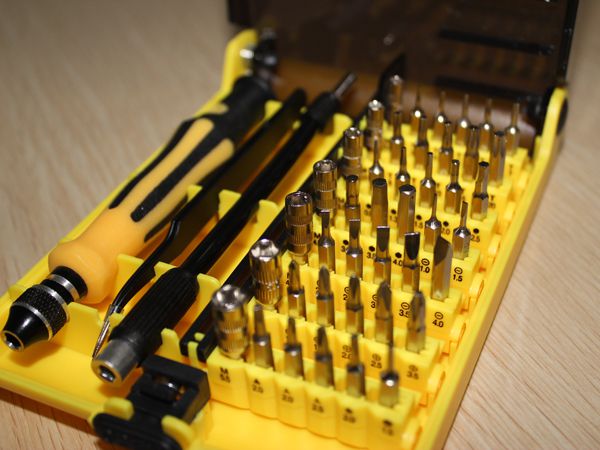

  • Screwdriver 45 in 1 set
  • Screwdriver 58 in 1 set
  • Screwdriver 66 in 1 set

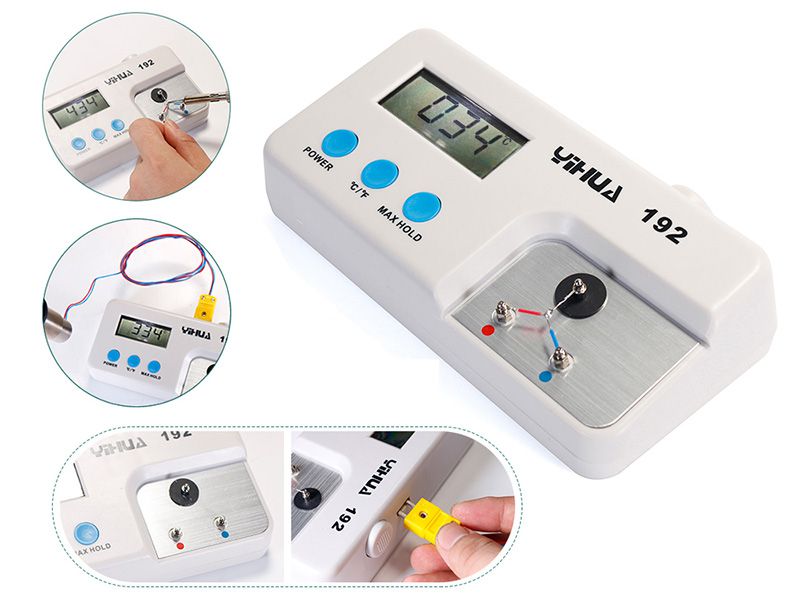

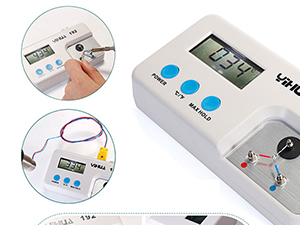

Temperature Thermometer

1. This thermometer allows for an accurate and instant reading of the measured temperature, which is displayed in Celsius or Fahrenheit depending on user needs.
2. The thermometer is designed with an automatic power off function. Users can set the preferred time range, and the system will automatically count down once the temperature is lower than 100℃, and once it reaches the pre-set time, the thermometer will automatically power off.
3. A temperature correction function allows for an automatic adjustment after repair or sensor replacement.
4. A password lock function eliminates any unauthorized operations.
5. The thermometer can be connected to a K-type thermocouple to monitor hot air gun, soldering wire temperature and other equipment component temperatures.

Model 192
Measuring Range 0~600℃
Accuracy ±3°C(0在300-500°C)
Increment 1°C
Sensor K-type thermocouple(NiCr-NiSi)
LCD Display Low battery alarm Sensor damaged displays“1”
Auto Power-off Time Range 10~60min/ Do not auto power-off
Battery Life 9Vdry cell serves 150 hours or above
Overall Dimension 160Lx43Hx82Wmm
Weight 0.26kg
Working Temperature 0~40℃

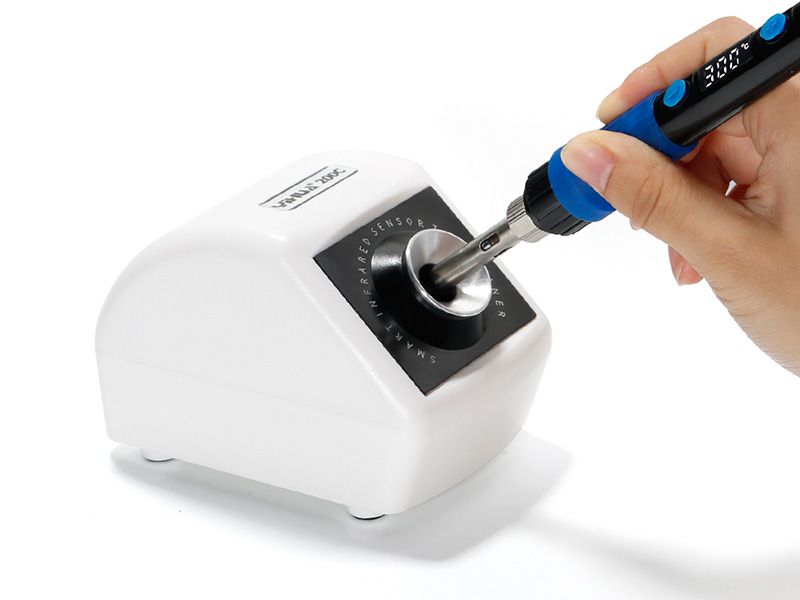

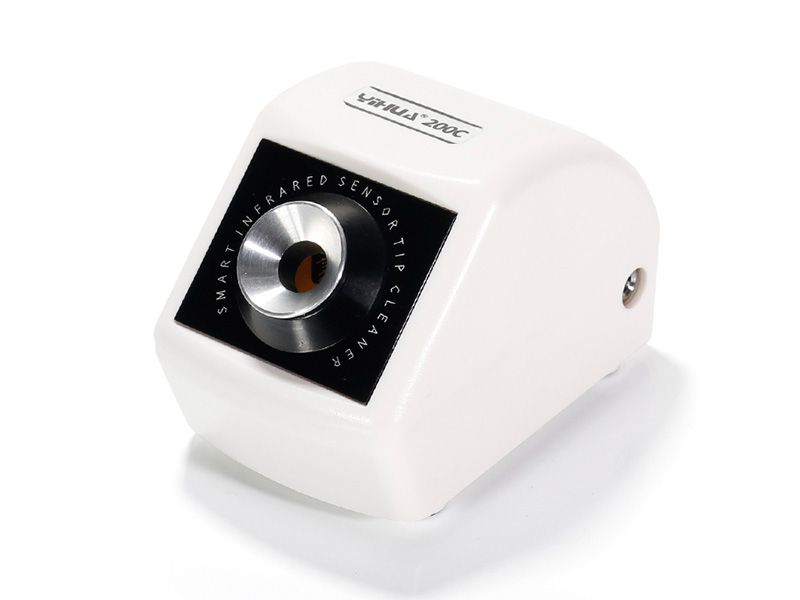

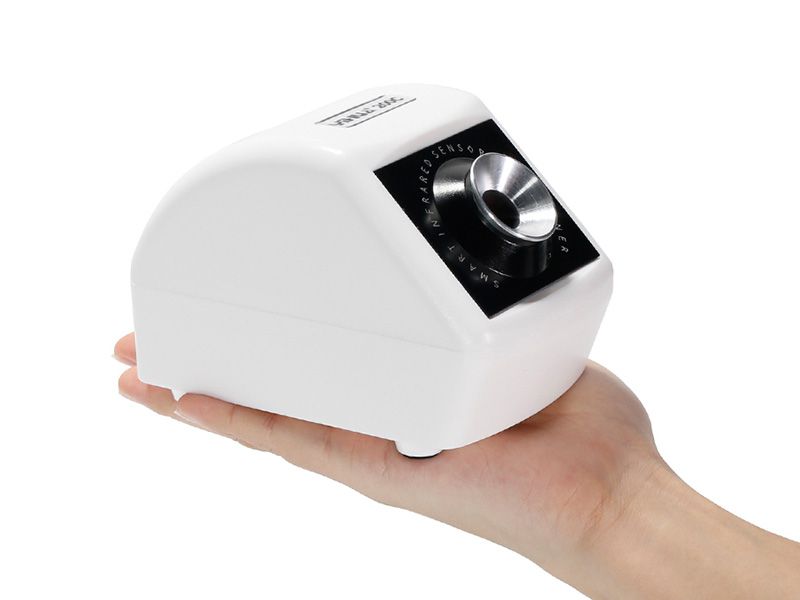

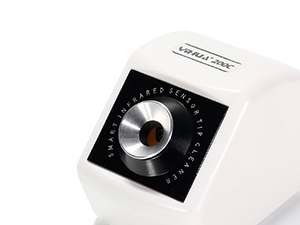

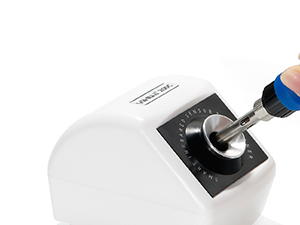

Automatic Soldering Iron Tip Cleaner

The 200C automatic soldering iron tip cleaner operates using an intelligent IR sensor. The brushes automatically activate once insertion of a soldering iron tip is detected, and the system automatically goes into a sleep mode once the tip is removed.

1. This cleaner features a modular design for easy maintenance and cleaning, and is designed with a compact structure and light weight to make it easy to carry and move.
2. The fully enclosed structure design prevents tin slag from coming off, thus keeping the surrounding environment safe and clean.

Technical Parameter
Model YIHUA 200C
Adaptor Input Voltage AC 110V/240 50/60Hz
Adaptor Output Voltage DC 12V 1A
DC 12V Port 5.5x2.1x11mm
Power 5W
Weight 0.5kg
Motor Voltage DC 12V
Speed of Revolution 4500RPM
Entrance Diameter Φ12.5mm
Internal Brush Diameter Φ25x20mm
Overall Dimension (L*W*H) 110x70x75mm
Working Temperature 0~40℃/32~104℉
Storage Temperature ﹣20~80℃/4~176℉
Storage Humidity 35%~45%

For after-sales service and technical support, please don't hesitate to contact us by sending mail to yh9@yihua-gz.com !
