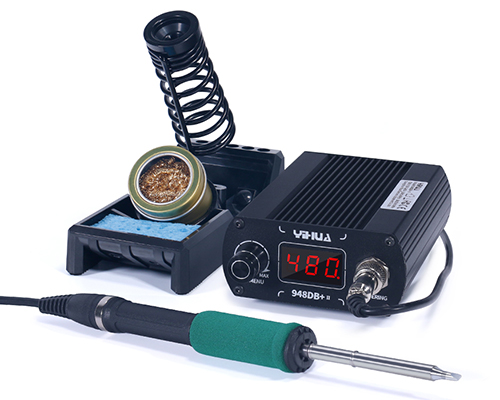

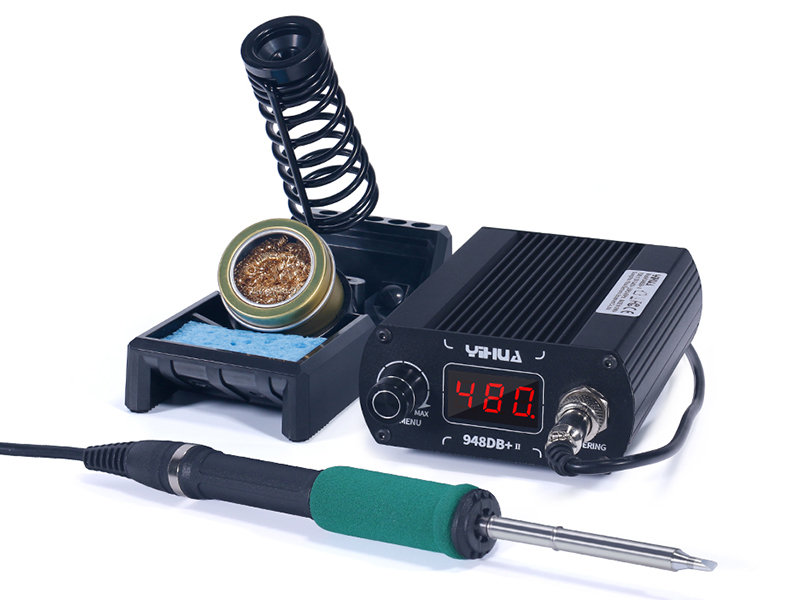

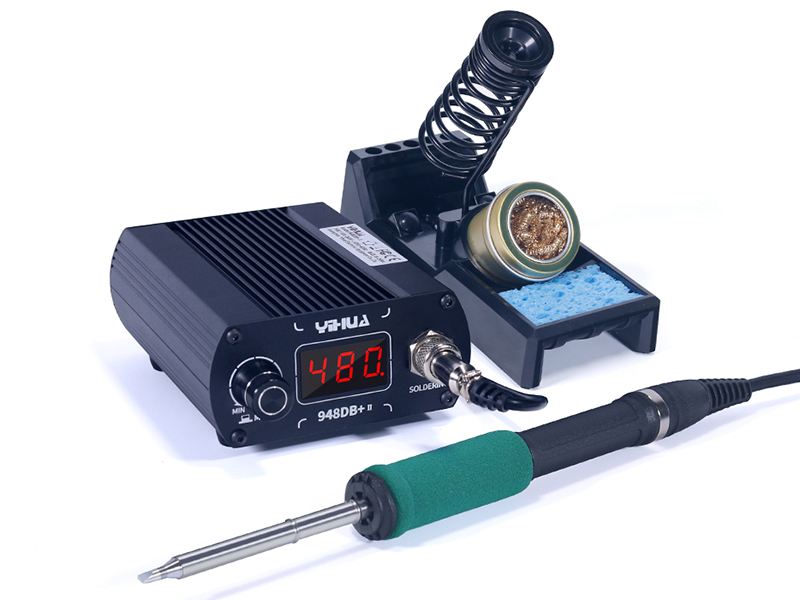

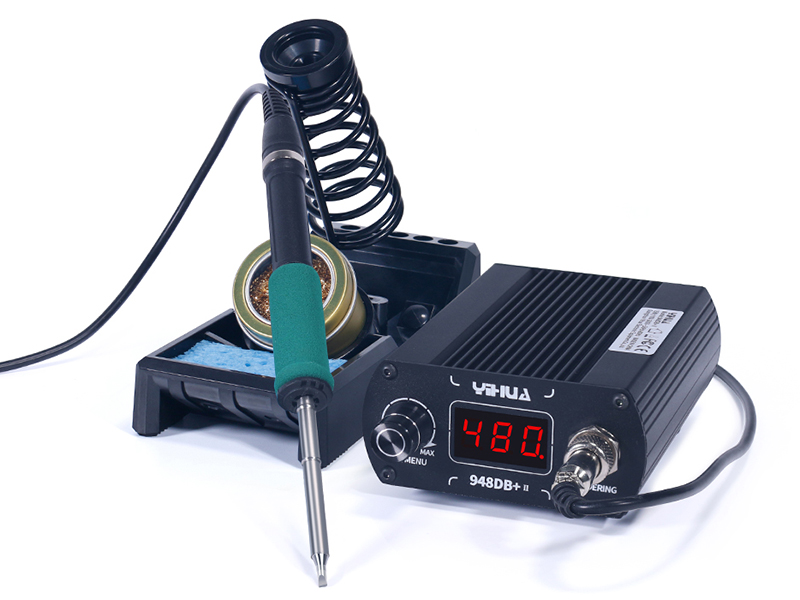

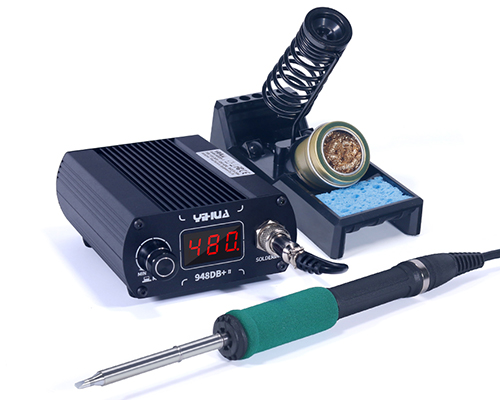

YIHUA 948DB+-II T12 fast heating soldering iron station with handle is used for electronic components soldering.Parameters

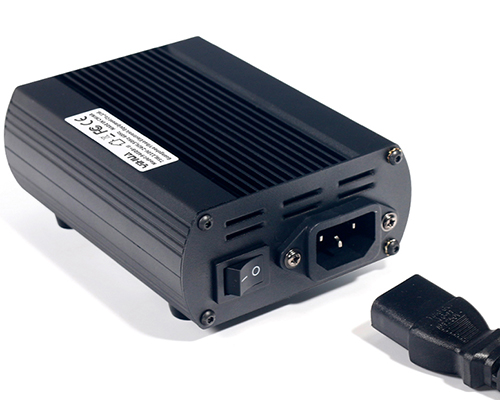

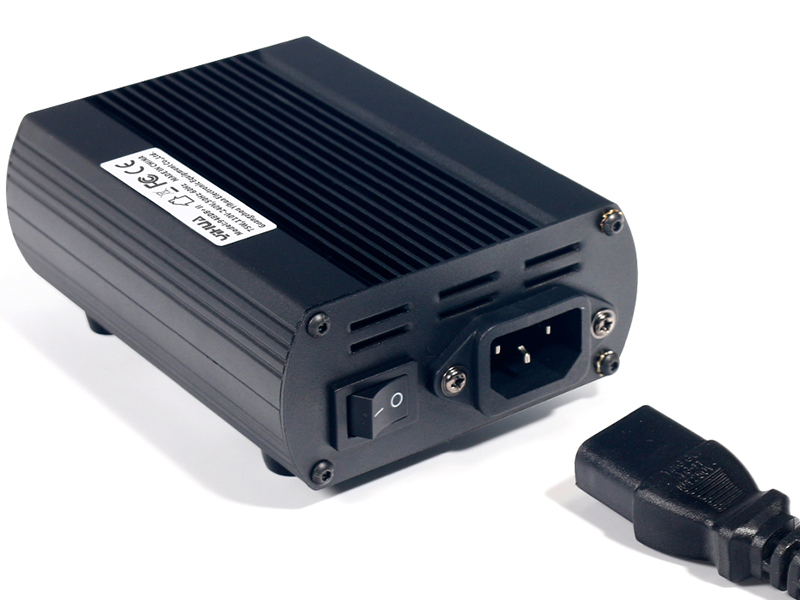

|Input voltage||AC 110~240V, 50~60Hz|
|Temperature range||200~450 ℃ / 392~842 ℉|

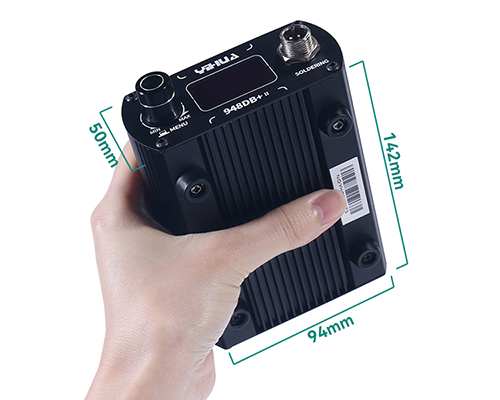

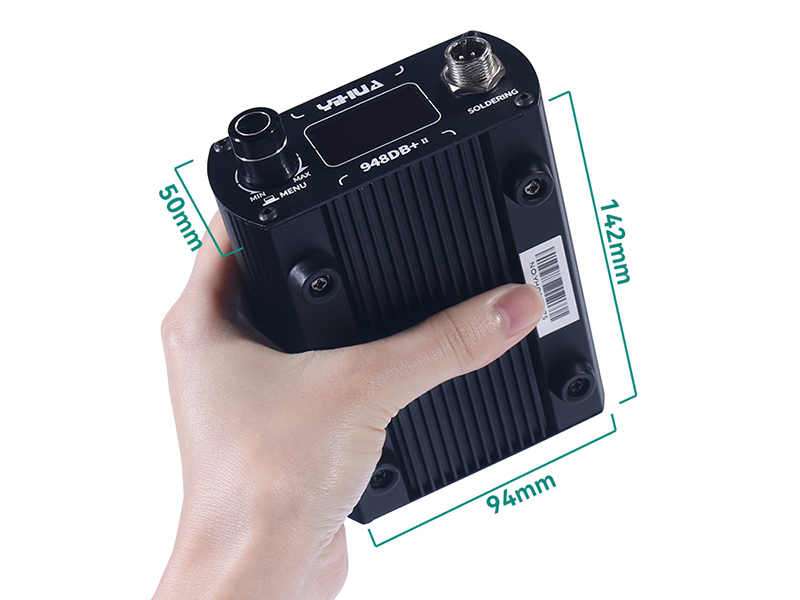

|Main unit dimensions||L142*W94*H50±5mm|
|Ambient temperature||0~40 ℃ / 32~104 ℉|
|Tip-To-Ground resistance||< 2 Ohms|
|Inner box size||18*13.5*10cm|
|Master carton size||37.5*28.5*43.5cm|
|Unit weight||0.94 kg/PCS|
|CTN weight||17 kg/CTN|
1. The soldering station can heat up to 300℃ within 7 seconds.

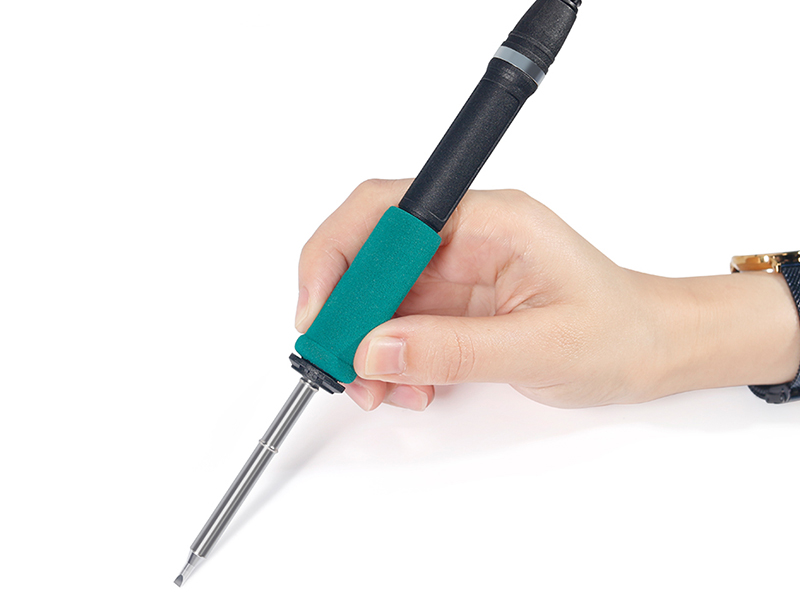

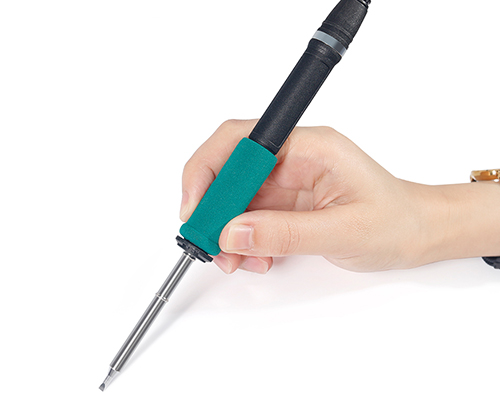

2. Easy to replace the soldering iron tip.
3. The soldering station features functions up to 5, one Hotkey to Operate.
4. Fahrenheit and Celsius can be easily switched to meet different market demands.
5. Three Programmable Presets Available
You can preset temperature in each memory channel for different needs. When soldering, you can quickly select the suitable temperature settings in CH1/CH2/CH3 according to different soldering applications.
6. Digital Temperature Correction Function
When temperature deviation happens because of environmental impact or replacing the spare parts such as heating element, soldering iron, you can use this function to correct.
7. Sleep Mode
The sleep time can be set, including 0/5/10/30 minutes. You can pick up the soldering iron to wake the station. This extends the lifespan of the heating element, conserves energy, and protects the environment.
8. Automatic Shut-Down
When the soldering iron enters sleep mode and isn’t picked up within approximately 30minutes, the soldering station will automatically shut off, you can pick up the soldering iron to restart the soldering station. This prevents leaving the station ON unsupervised, or forgetting to turn OFF the station.
9. Buzzer Prompt
The soldering iron has built-in buzzer to remind.
