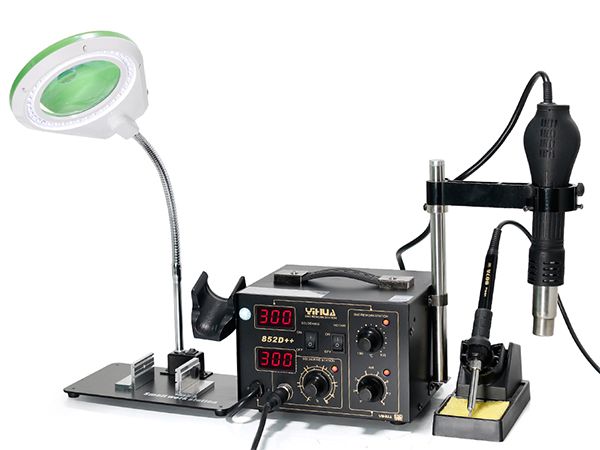

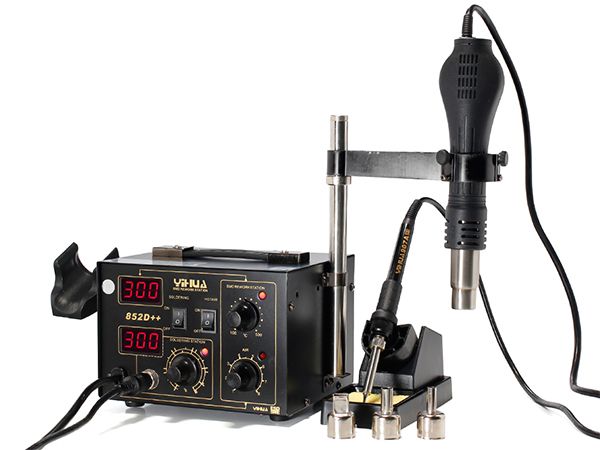

YIHUA-852D++ Hot Air Rework Station with Soldering Iron

Description
1. YIHUA-852D++ hot air rework station with soldering iron is a 2 in 1 soldering rework station that is composed of high-grade brushless fan type air gun and qualified soldering iron.
2. The air gun is in line with the standard of brushless fan. Its service life is 20,000 hours. It offers a large amount of soft wind. And the wind speed is uniform.
3. Inside the air gun, there is a heater which is highly stable, durable for being made of ceramics.
4. This soldering rework station applies the anti-twist ceramic heater which allows for good temperature stability. The heater can be used for a long time.

Features
1. Compared to the YIHUA-852D++ series, the YIHUA-852D++ hot air rework station with soldering iron is equipped with the circuit board that has been optimized in performance, structure, and package. This circuit board helps prevent the transportation damage, and greatly reduce the transportation fees.
2. As required, you can install an air gun fixed support which well suits the preheat board. Therefore, you can easily dismantle the large chip.
3. Different from the YIHUA-852D+ series, the YIHUA-852D++ series has LED display for ensuring the precise air gun and iron work temperature.

Parameter

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 700W±10% (Maximum)
Working Environment 0~40℃ Relative Humidity< 80%
Storage Environment -20~80℃Relative Humidity< 80%
Machine Size 25.5*18.8*12.5cm
Weight 3.18KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 50W
Temperature Range 100℃~450℃ 200℃~480℃
Mode of Airflow Brushless fan ---
Airflow 120L/min (max.) ---
Temperature Stability ±15℃ (static) ±10℃ (static)
Display Two LED (red/green) ---
Heater Heating core ceramics heater Imported high-power heater
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV
