YIHUA-878/878A/878AD/878D Series Hot Air Rework Station with Soldering Iron

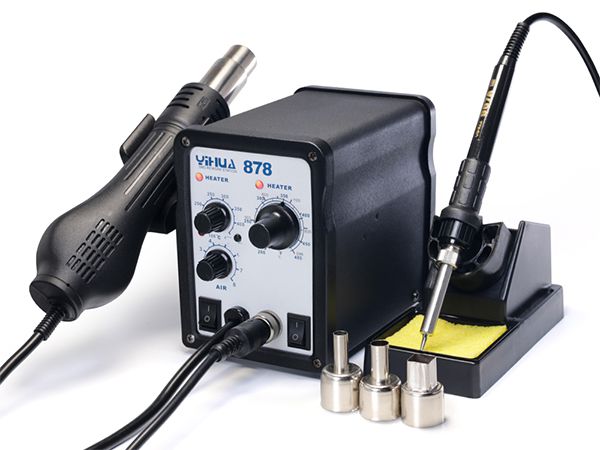

Features- YIHUA-878/878A/878AD/878D series hot air rework station with soldering iron is available with four types, such as 878, 878A, 878D, and 878AD.

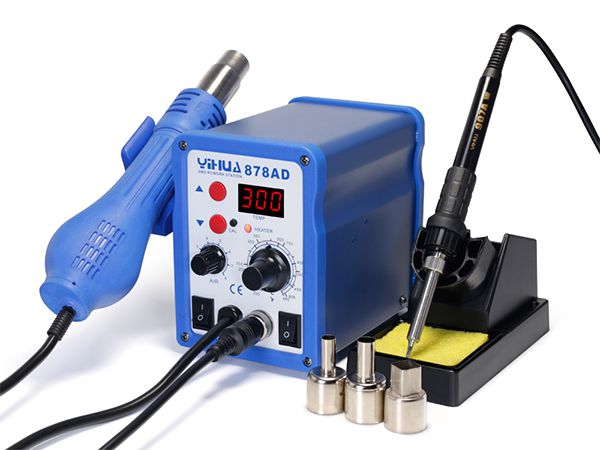

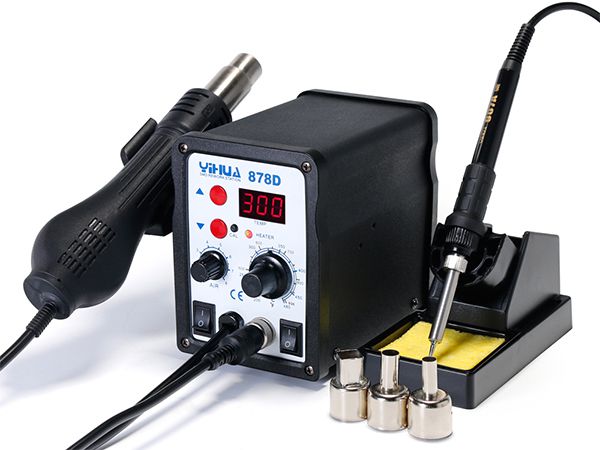

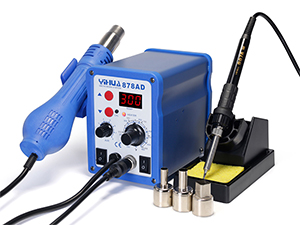

- Either 878D or 878AD hot air rework station with soldering iron is equipped with a LED display, which is used to control the hot air gun temperature according to the user's requirements.

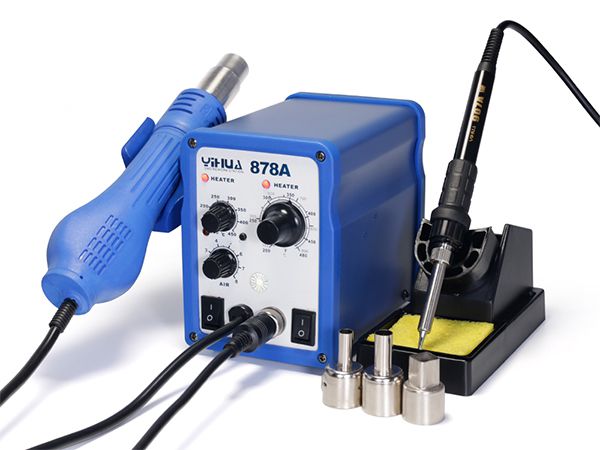

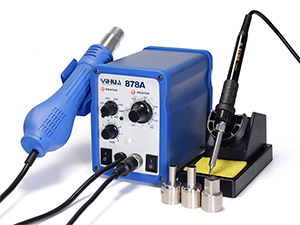

- 878A and 878AD are designed with such two colors: blue and black, to meet users' needs. Meanwhile, the air gun and soldering iron cable use silicone wire that withstands high temperature.
Parameter
| Machine | ||
| Rated Voltage | AC 220V±10% 50Hz | |
| Machine Power | 700W±10% (max.) | |
| Working Environment | 0~40℃ Relative humidity< 80% | |
| Storage Temperature | -20~80℃ Relative humidity< 80% | |
| Machine Size | 213.5*15*10cm | |
| Weight | 2.6KG | |
| Parts | ||
| Item | Hot air gun | Soldering iron |
| Working Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 650W | 50W |
| Temperature Range | 100℃~480℃ | 200℃~480℃ |
| Mode of Airflow | Brushless fan | --- |
| Airflow | 120L/min (max.) | --- |
| Temperature Stability | ±15℃ (static) | ±10℃ (static) |
| Display | LED (red/green) | ---- |
| Temperature Correction | PID digital program proofreading | ---- |
| PID Temperature Cycle | Fast 200ms | ----- |
| Heater | Heating core ceramics heater | Common metal heater |
| Tips to Ground Impedance | --- | < 2Ω |
| Tips Voltage to Ground | --- | < 2mV |
Standard Configuration
Machine: 1set
User manual: 1pc
Air gun handle: 1pc
Nozzles: 3pcs (13mm, 10mm, 8mm)
IC Puller: 1pc
Power Plug: 1pc
