YIHUA-898D/898D+ Series Hot Air Rework Station with Soldering Iron

Features

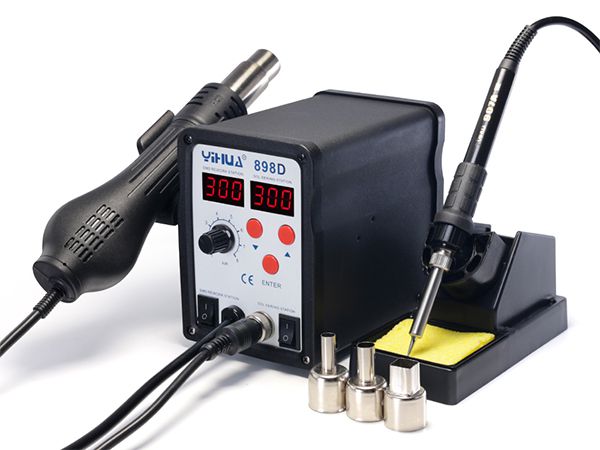

1. YIHUA-898D rework station is equipped with 2 LED displays for precisely controlling the air gun and iron work temperature. The small case design contributes to the pretty appearance and good quality.

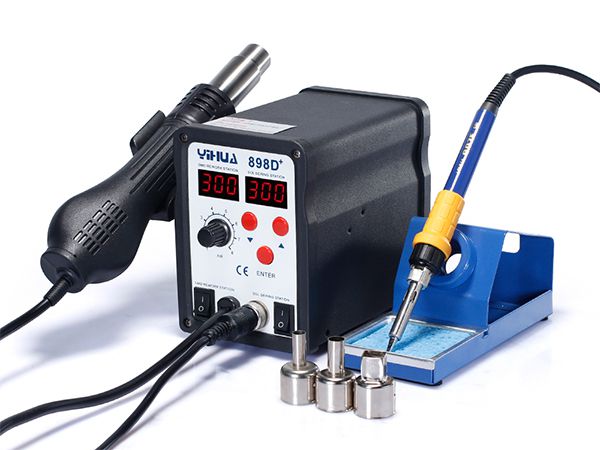

2. YIHUA-898D+ rework station is developed from YIHUA-898D Series type.YIHUA 898D+ the soldering iron handle cables use silicone wires. The silicone wire will not be damaged within 30 seconds when exposed to the 300℃soldering iron.
3. YIHUA-898D+ soldering iron is equipped with an imported high-power heater which comes with fast temperature compensation. Therefore, it is ideal for de-soldering all sorts of welded spots, particularly suitable for de-soldering large solder joints, rough blocks, and miscellaneous difficult solder joints.
4.Our YIHUA-898D+ hot air rework station uses blue Ferro-alloy iron holder, thereby averting scalding.

Parameter

Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 730W
300℃ Constant Temperature Power 250W±10%
Working Environment 0~40℃ Relative humidity< 80%
Storage Temperature -20~80℃ Relative humidity< 80%
Machine Size 13.5*15*10cm
Weight 2.65KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 50W/75W
Temperature Range 100℃~450℃ 200℃~480℃
Mode of Airflow Brushless fan ---
Airflow 120L/min (max.) ---
Temperature Stability ±5℃ (static) ±5℃ (static)
Display LED (red/green) LED (red/green)
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Heater Heating core ceramics heater Quality heater / Imported high-power heater
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1
Air Gun Handle: 1pc
Nozzle: 3pcs (5mm, 8mm, 10mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc

Iron Holder: 1pc
Power Plug: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
