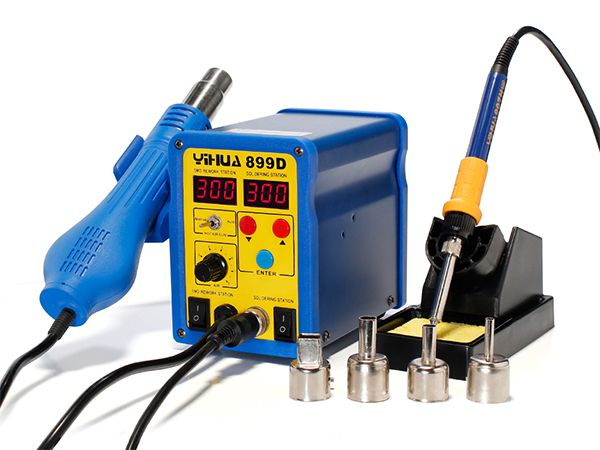

899D/899D+ series the Soldering iron pat have iron sleep function, sleep time is 2/5/10/20 minutes
The blue key would set up 2/5/10/20 minutes
1. If you set up 2 minutes, when you put the soldering iron on the holder after 2 minutes that the soldering iron will enter the standby mode (200°C).
1. Auto mode:
When you put the hot air gun on the holder, the gun will be cooled to 100°C and automatically shut down. When next time use, it will automatically heat up to the temperature you set.
2. Manual mode:
When you put the hot air gun on the holder, the hot air gun continues working and emitting heat.

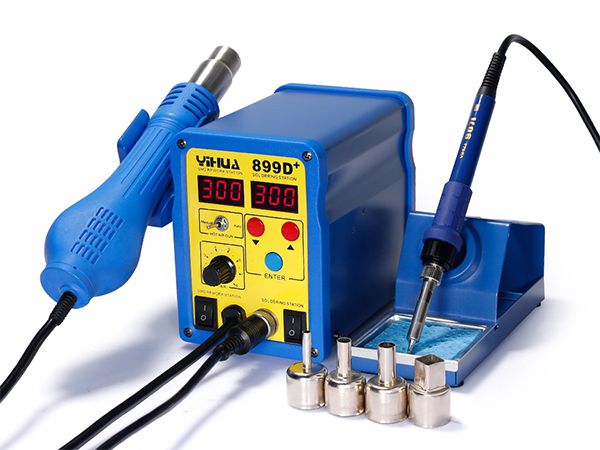

3. YIHUA-899D+ soldering iron is equipped with an imported high-power heater which comes with fast temperature compensation. Therefore, it is ideal for de-soldering all sorts of welded spots, particularly suitable for de-soldering large solder joints, rough blocks, and miscellaneous difficult solder joints.
4.Our YIHUA-899D+ hot air rework station uses blue Ferro-alloy iron holder, thereby averting scalding.
|Rated Voltage||AC 220V±10% 50Hz|
|300℃ Constant Temperature Power||250W±10％|
|Working Environment||0~40℃ Relative humidity< 80％|
|Storage Temperature||－20~80℃ Relative humidity< 80％|
|Item||Hot air gun||Soldering iron|
|Working Voltage||AC 220V±10% 50Hz||AC 26V±10% 50Hz|
|Mode of Airflow||Brushless fan||---|
|Display||LED (red/green)||LED (red/green)|
|Temperature Correction||PID digital program proofreading||PID digital program proofreading|
|PID Temperature Cycle||Fast 200ms||Fast 200ms|
|Heater||Heating core ceramics heater||Common metal heater (898D+ use imported high-power heater)|
|Tips to Ground Impedance||---||< 2Ω|
|Tips Voltage to Ground||---||< 2mV|
Machine: 1 set
Air Gun Handle: 1pc
Nozzle: 3pcs (5mm, 8mm, 10mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc
Power Plug: 1pc
Application of YIHUA-899D+ Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
