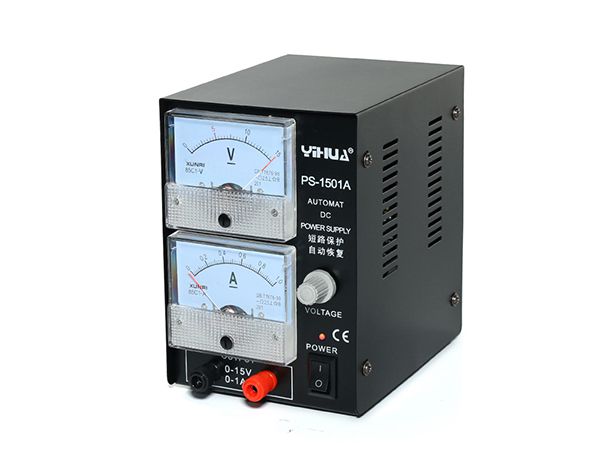

YIHUA-1501A/1502A DC Power Supply

Features
1. Small in size, the YIHUA-1501A/1502A DC power supply is convenient to take.
2. It features high precision and reliability.
3. The machine has short circuit protection function and automatic recovery function.
4. The adjustable voltage is from 0 to 15V and the output current is from 0 to 1A.
5. Our equipment is cost effective. It is low in price.

Parameters

Machine
Rated Voltage AC110V/ 220V/230V/240V ±10% 50Hz
Whole Machine Power 20W
Working Environment 0~40℃ relative humidity< 80%
Storage Environment -20~80℃ relative humidity< 80%
Dimensions 140*105*145cm
Weight 1.06KG
Output Voltage 0~15V
Output Current 0-1A
Source Effect 1.5mV
Loading Effect ≤0.13%
Ripple and Noise ≤4mV
Power Stability ≤0.5%
Measurement Accuracy 0.1V
Protected Mode Short circuit protection, automatic recovery function

Scope of Application
With 0-15V DC power supply output and 0-1A current output, this device allows for more accurate test result. It is widely used in mobile phone repairs and other related industries.

Related Names
Bench Top Power Supply | Voltage Stabilizer | Low Voltage Regulated Power Supply
