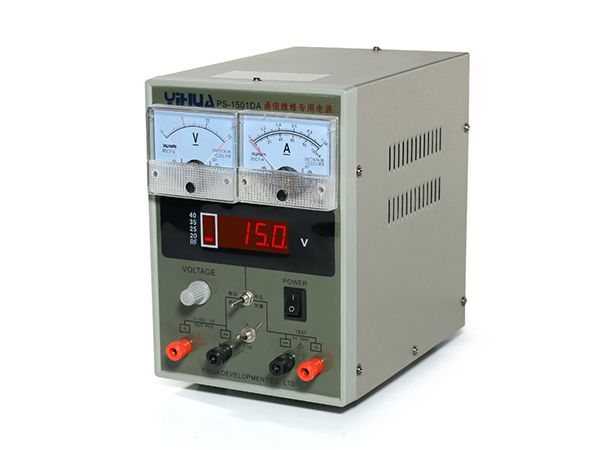

YIHUA-1501DA DC Power Supply

YIHUA-1501DA DC Power Supply

Features
1. Output voltage: 0-15V adjustable, current: 0-1A / 0-100mA adjustable
2. With reliable quality, YIHUA-1501DA DC power supply works stably and can be used for a long time.
3. In addition to the short circuit protection function and automatic recovery function, it has a voltage test function. The test voltage is 0-49.9V.
4.This DC power supply has RF signal function.
5. It offers two kinds of output current, such as 0-1A and 0-100mA.

Parameters

General Information
Rated Voltage	AC220V 50Hz
Whole Machine Power	20W
Working Condition	0 ~ 40 ℃ relative humidity ＜ 80 ％
Storage Temperature	－20 ～80 ℃ relative humidity ＜80 ％
Dimensions	205140200mm
Weight	1.67KG
Performance
Output Voltage	0 ~ 15V
Output Current	0-1A/0-100mA
Source Effect	1.5mV
Loading Effect	≤0.13%
Ripple and Noise	≤4mV
Power Stability	≤0.5%
Measurement Accuracy	0.1V
Protected Mode	Short circuit over-current protection, automatic recovery function
Mobile Phone Signal Indicator	RF
Phones Emission Interference	Anti-interference

Application
This DC power supply is chiefly used to provide 0-15V DC power output, or applied to test 0~49.9V DC voltage. Since it also can offer 0-100mA output current, the test will be more accurate. The product is commonly found in the mobile phone maintenance and other related industries.
