YIHUA-1502DD DC Power Supply
Inquiry

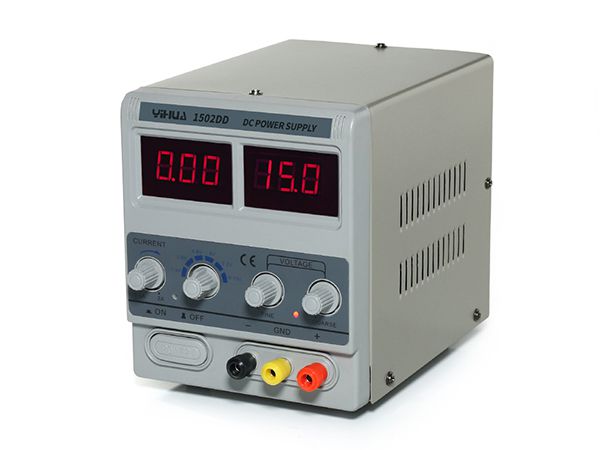

YIHUA-1502DD DC Power Supply

Features
  • Voltage: 0-15V adjustable, and 1.5V, 3.6V, 4.8V, 6.0V, 7.2V direct output of the sub-grade. Current: 0.6-2A adjustable.
  • YIHUA-1502DD DC power supply is a high quality product featured with high stability and long service life.
  • It has both short circuit protection function and automatic recovery function.
  • Two LED displays are equipped to separately show the voltage and current. Our power unit is a simple, economical mobile phone maintenance instrument with excellent performances.
Parameters
General Information
Rated Voltage AC220V 50Hz
Whole Machine Power 35W
Working Condition 0 ~ 40℃ relative humidity < 80%
Storage Temperature -20 ~ 80℃ relative humidity < 80%
Dimensions 180*128*125mm
Weight 1.61KG
Specifications
Output Voltage 0 ~ 15V
Output Current 0-2A/0-500mA
Source Effect 1.5mV
Loading Effect ≤0.13%
Ripple and Noise ≤4mV
Power Stability ≤0.5%
Measurement Accuracy 0.1V
Protected Mode Short circuit over-current protection, automatic recovery function

Application
The DC power supply is mainly applied to provide 0-15V DC current. It is widely used in the mobile phone maintenance and other related industries.

Related Names
Voltage Regulated Power Supply | Electrician Power Device | Stabilized DC Power Source
