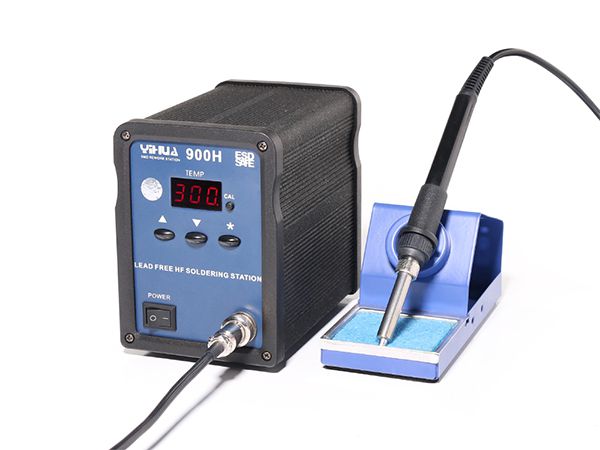

YIHUA-900H Lead Free High Frequency Soldering Station
Features- To achieve high temperature lead-free soldering, the YIHUA-900H lead free high frequency soldering station applies the high-frequency eddy current heating which allows for rapid warming or temperature recovery.
- PID program control allows for touch-tone temperature adjustment and digital temperature correction. Additionally, the equipment has the automatic sleep or power off function.
- The soldering station has the power of 90W. It only requires several seconds for the temperature rising from 0℃ to 300℃.
- It has the password temperature lock function which can keep the unauthorized person from changing the machine parameters.
- Our YIHUA-900H lead free high frequency soldering station is anti-static. It has many types of soldering tips for you to choose.
- There three sections of temperature control range including 200-480℃, 100-450℃, and 50-420℃.
- Because of good stability and high grade configuration, the YIHUA-900H lead free high frequency soldering station is suitable for high intensity welding tasks.
- Made of high-grade ferroalloy, the housing durable with good resistance to high temperature.
| Rated Voltage | AC 220V±10% 50Hz |
| Output Power | 90W |
| Working Environment | 0 ~ 40℃ relative humidity < 80% |
| Storage Environment | -20 ~ 80℃ relative humidity< 80% |
| Dimensions | 15*10*13.5CM |
| Weight | 3.4KG |
| Work Voltage | AC 26V±10% 50Hz |
| Temperature Range | Three-optional temperature control, respectively：①200-480℃，②100-450℃，③50-420℃ |
| Temperature Stability | ±1℃ (Static) |
| Display Type | Red/green LED display |
| PID Temperature Correction Cycle | Rapidly 20ms |
| Tip to Ground Impedance | < 2Ω |
| Tip of Ground Voltage | < 2mV |
Standard Configuration
Machine Unit: 1 set
Soldering Iron Handle (include iron tips and heater): 1 pc
High Quality Ferroalloy Iron Holder: 1pc
Clean Sponge: 1pc
Manual :1pc
Card: 1pc
Power Plug: 1pc
Application
Through the adoption of high frequency eddy current heating principles and techniques, YIHUA-900H lead free high frequency soldering station can realize the high-strength lead-free soldering. With various functions, it is particularly suitable for crude terminals, large joints wending. This soldering station is widely used in universities, research institutes, laboratories, production lines, maintenance departments, etc.
