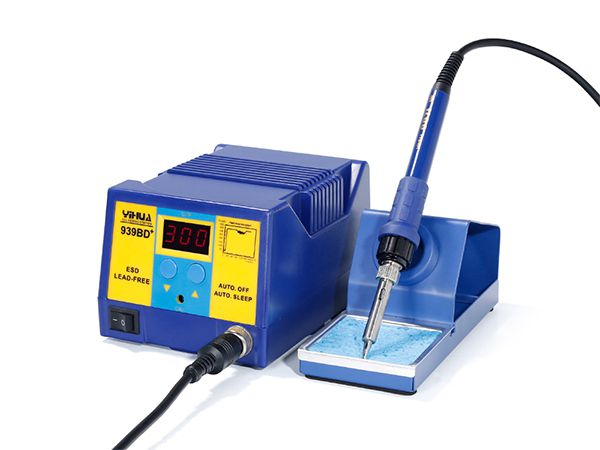

YIHUA-939, YIHUA-939D Constant Temperature Digital Display Soldering Station

Features
1. YIHUA-939D soldering station uses SAMSUNG SCM PID procedures to realize the real-time tracking and correction of soldering iron temperature.
2. It comes with fast temperature compensation speed, which ensures stable temperature with minimum temperature error.
3. This constant temperature digital soldering station suits to all kinds of environmental extremes. It can automatically detect the failures and has alarm function.
4. With the high-power imported heater, it is not only suitable for general small solder joints, but also applicable for desoldering large, complicated solder joints.
5. Our constant temperature digital display soldering station is designed to be anti-static, thus to avoid the damage to the delicate components.
6. Its handle line applies silicone wire of high temperature resistance and good flexibility. Even when exposed to the 300℃ soldering iron, the silicone wire has no damage within 30s.

Standard Configuration
Machine Unit: 1set
Soldering Iron Handle (include iron tips and heater): 1pc
Ferroalloy Holder: 1pc
High Temperature Resistant Sponge: 1pc
Manual: 1pc
Power Plug: 1pc

Parameters

Model YIHUA-939D YIHUA-939
Rated voltage AC 220V±10% 50Hz
Output Power 75W
Working Environment 0 ~ 40℃ relative humidity < 80%
Storage Environment -20 ~ 80℃ relative humidity < 80%
Dimensions 14.5*12*8CM
Weight 2.16KG
Working Voltage AC 26V±10% 50Hz
Temperature Range 200℃ ~ 450℃
Temperature Stability ±3℃ (Static)
Display Type Red/green LED display ---
Temperature Correction Type Digital PID correction ---
PID Temperature Correction Cycle 200ms ---
Heating Elements Imported high-power heater
Tip Ground Impedance < 2Ω
Tip of Ground Voltage < 2mV

Application
This constant temperature digital display soldering station is high in power, fast in temperature compensation. Aside from the general type soldering application, it is also suitable for de-soldering large solder joints, rough blocks, and miscellaneous difficult solder joints.
