YIHUA 982D Multifunctional Precision Soldering Station with C210/C245 Soldering Iron Handle
Key Characteristics

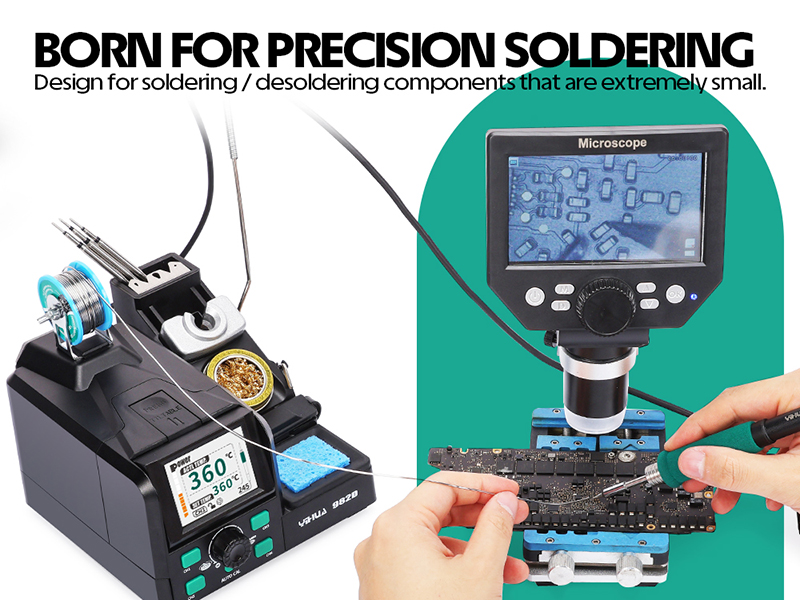

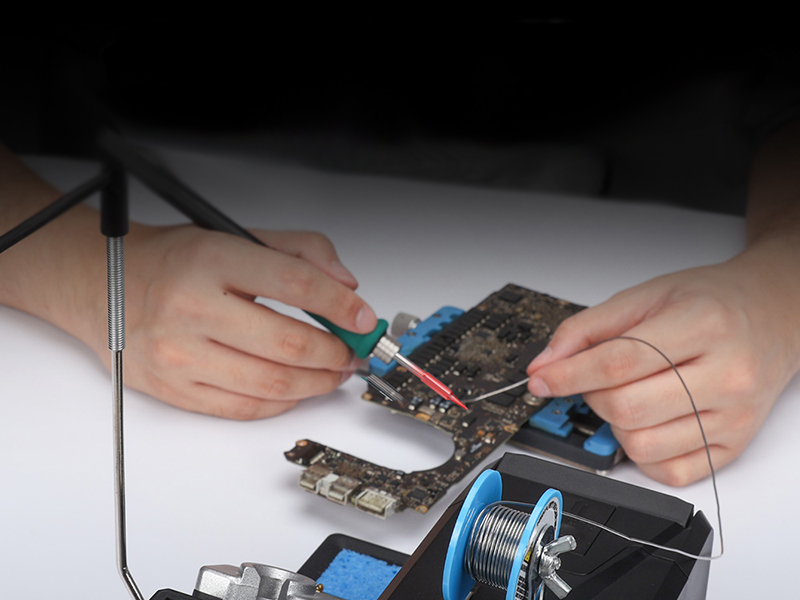

ESD-safe design: The YIHUA 982D is a professional, ESD-safe digital precision soldering station designed for working with micro-sized electronic components often found in delicate devices. Its slim, fine-tip design offers a clearer line of sight, especially when soldering under a microscope.
Dual handpiece compatibility: Equipped with both C210 and C245-compatible soldering handpieces, this station handles everything from fine-detail micro-soldering to standard component work. The C210 is ideal for precision soldering, while the C245 is suited for general-purpose tasks. Compatible tip models include C210/C245-I, -K, and -SI.
Rapid heat-up and prices temperature control: Heats to operating temperature in just 2 seconds, with an adjustable range from 90°C to 450°C. Millisecond-level PID control and digital calibration maintain consistent tip temperature regardless of thermal mass or environmental changes, requiring no external measurement tools.
LCD display: The new high-contrast color LCD makes monitoring parameters easy. The adjustable screen tilt ensures clear visibility from various working heights and positions.
Programmable temperature presets: The unit features four memory channels (CH1/CH2/CH3/CH4) that allow you to preset and instantly switch between temperatures tailored to different soldering needs.

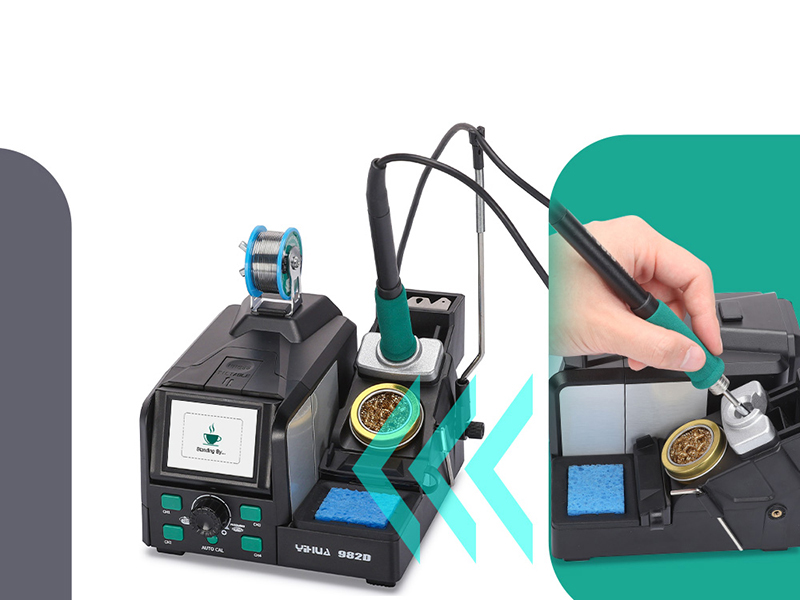

Sleep mode: Sleep mode activates when the soldering iron is placed in the holder, helping to reduce tip oxidation and extend the lifespan of the heating element.

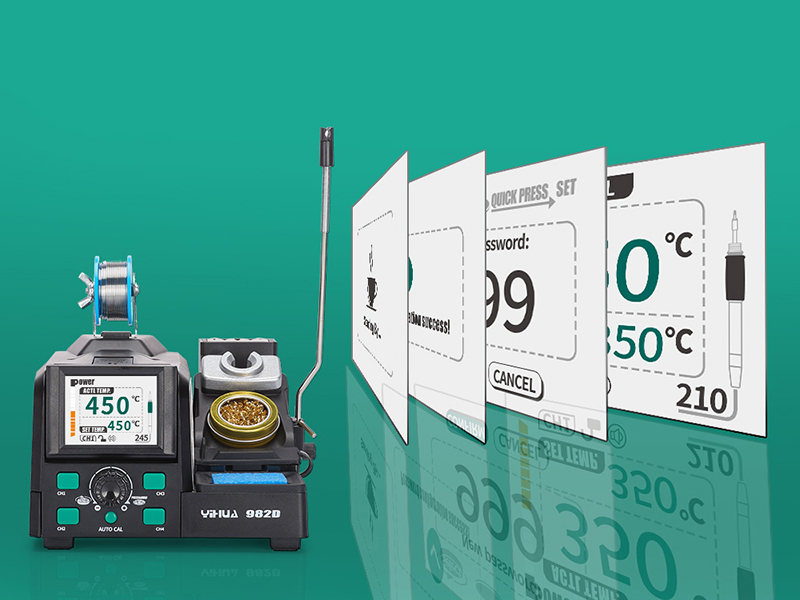

Smart menu: The integrated menu offers different useful features, including buzzer feedback, °C/°F conversion, password lock, language selection, password setup, on-screen user manual, auto shut-off (1–10 minutes), which powers down the station when not in use, preventing energy waste and improving safety.
All-in-one functional design: The station body includes multiple built-in tools to streamline your workspace:
Brass wool tip cleaner
Heat-resistant sponge
Tip storage slots and tip change groove
Solder wire dispenser
Handpiece cable guide
Calibration thermocouple.

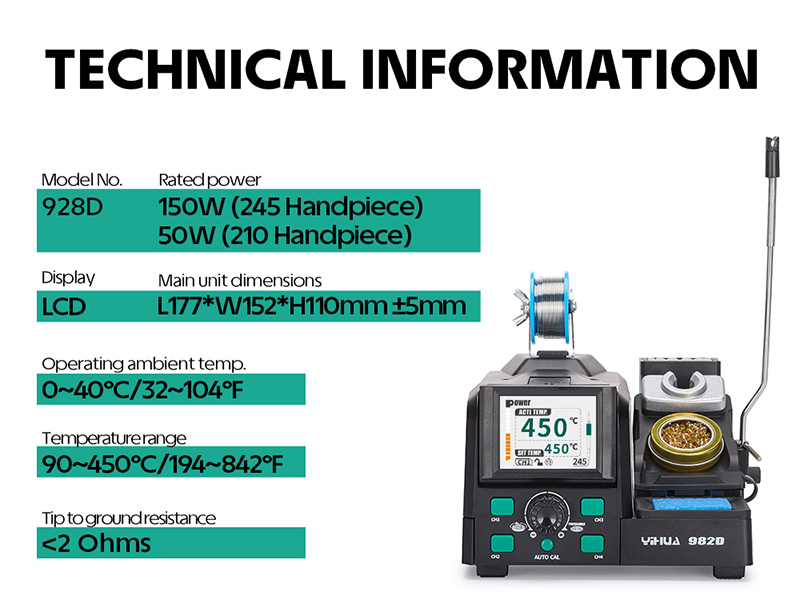

Parameters
Model
982D
Rated voltage range
110-240V, 50-60Hz
Rated power
150W(C245 handpiece)/50W(C210 handpiece)
Main unit dimensions
L177×W152×H110±5mm
Operating ambient temperature
0-40℃/32-104℉
Temperature range
90-450℃/194-842℉
Display
LCD
Tip-to-ground resistance
<2 Ohms
Main Features
Rapid Heating Heats up to operating temperature in just 2 seconds

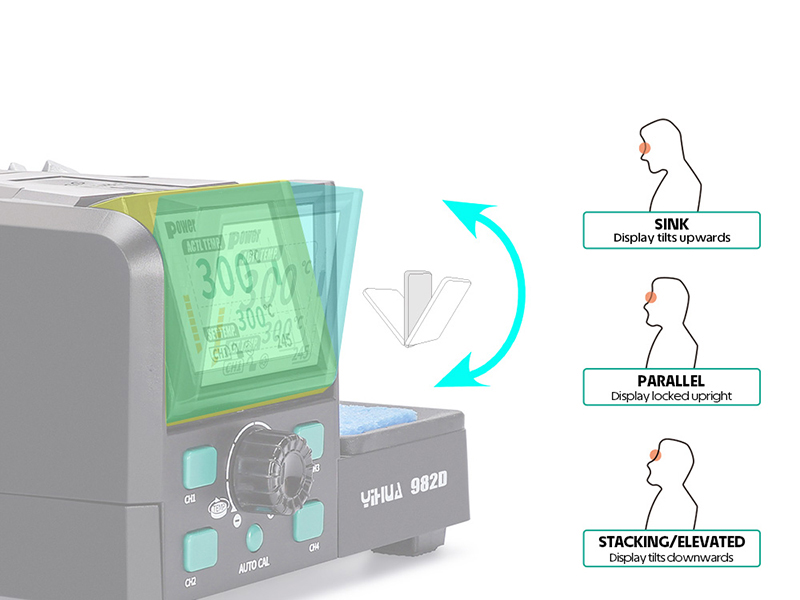

Tiltable Display Ensures a clear view of the screen from any angle, no matter where the station is positioned.
Full-Color Display Offers enhanced brightness and contrast for clearer, easier monitoring of all parameters.

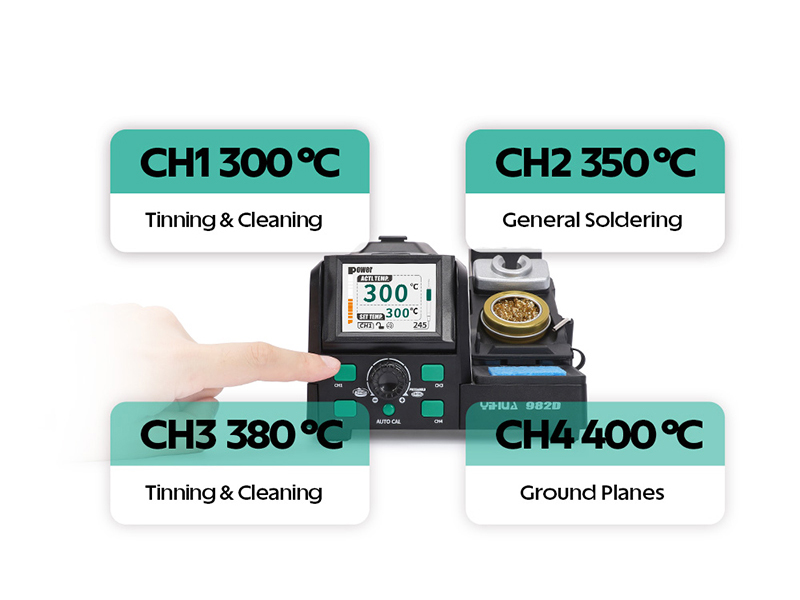

Four Preset Channels The temperature settings below are for reference only. Users can adjust and set their preferred temperatures based on specific work requirements.
Low-Wear Idling Automatically enters low-wear idle mode when the temperature exceeds 200℃, helping to preserve tip life and reduce wear.

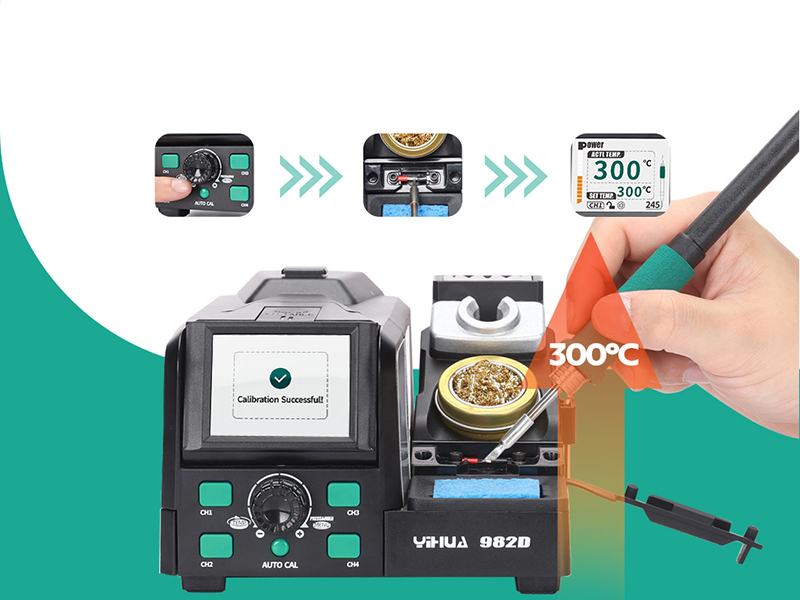

Auto Calibration Ensures your soldering tip remains precise and stable throughout every task.

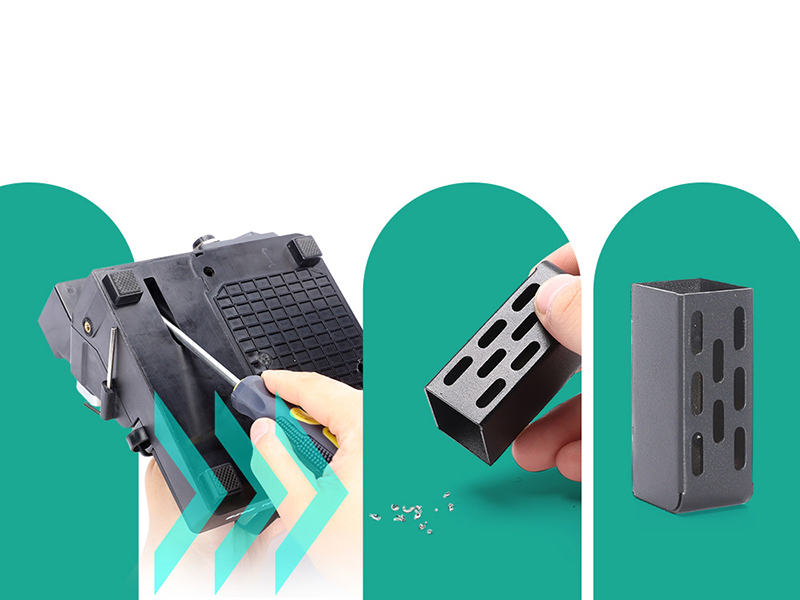

Removable Residual Tray Easily removable for convenient cleaning and maintenance whenever needed.

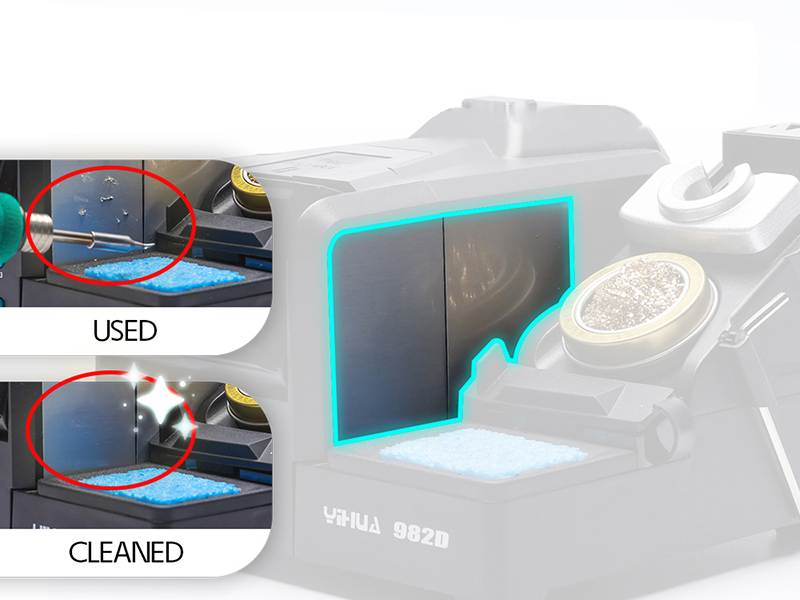

Metallic Protection Shields the station’s exterior from damage caused by hot solder, ensuring long-lasting durability.
