YIHUA 3005D V PRO Linear DC Power Supply (30V/5A Single Output)
Inquiry

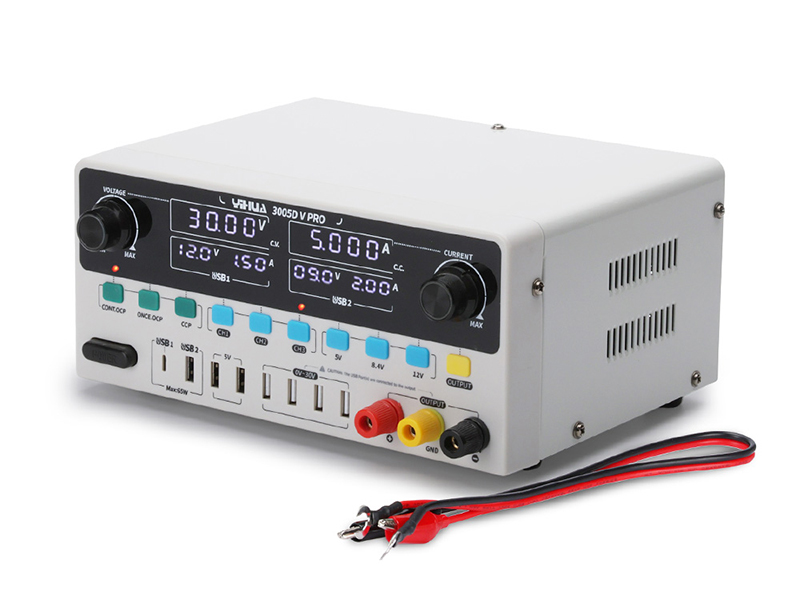

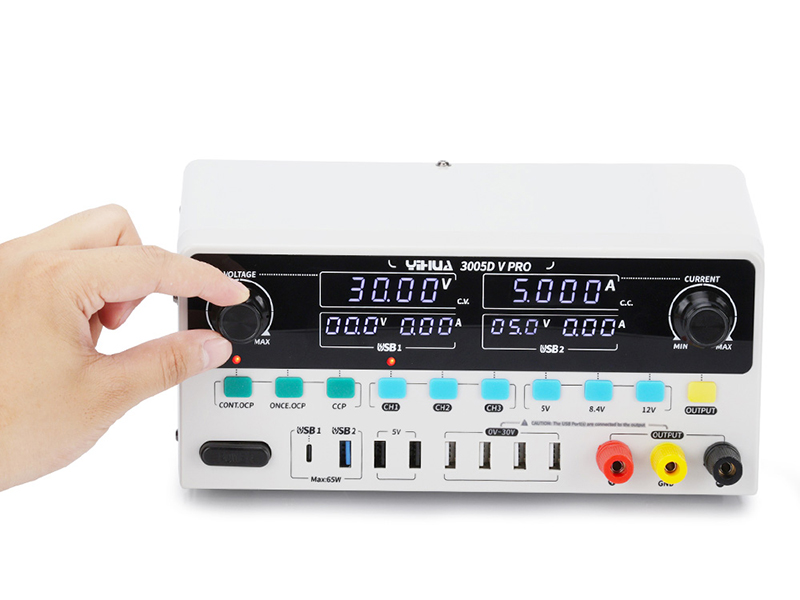

YIHUA 3005D V PRO Linear DC Power Supply (30V/5A Single Output)

This regulated DC power supply is engineered to meet the needs of scientific research, product development, testing labs, educational facilities, electronics manufacturing, and repair work.

Key Characteristics
  • Features highly stable voltage regulation, excellent load capacity, and low ripple, along with built-in short circuit, overcurrent, and overheat protection.
  • Equipped with a toroidal transformer to minimize energy loss and reduce heat generation.
  • Offers quick-access fixed voltages of 5V, 9V, and 12V, plus three preset channels for fast switching between multiple voltage settings.
  • Supports constant current output with automatic overcurrent stop and auto-resume modes, allowing users to select the best option for their needs.

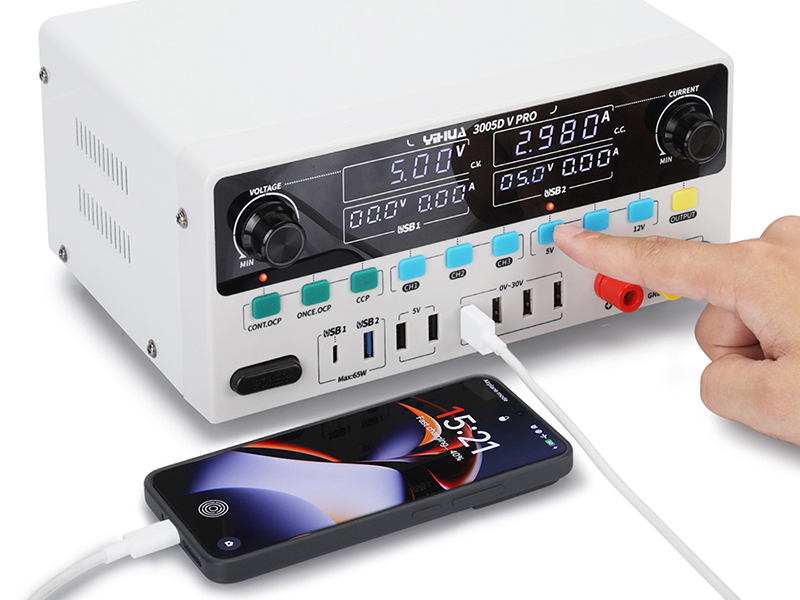

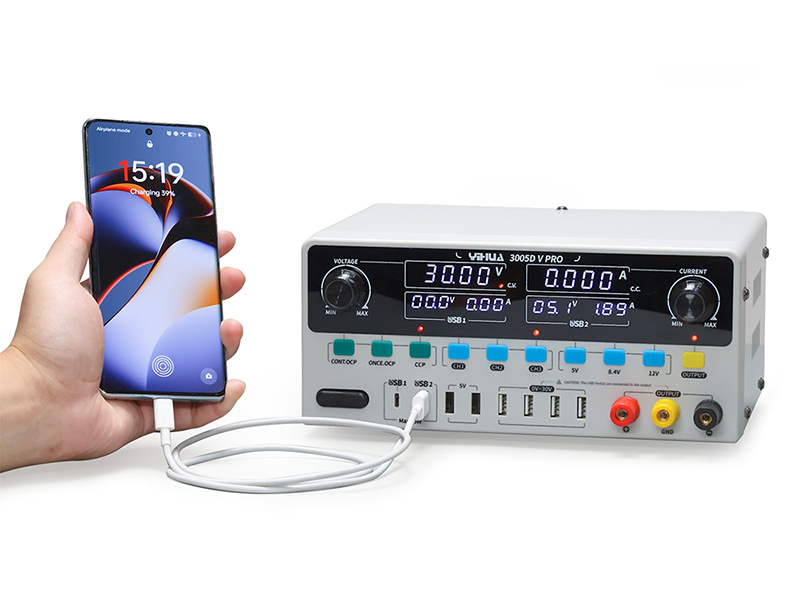

  • Includes a 65W quick charge port, a 40W quick charge port, and four USB ports operating in parallel with the 30V output—ensure loads are connected properly to avoid damage.
Parameters
Model 3005D V PRO
Rated power 330W
Main unit dimensions L196×W250×H117±10mm
Operating ambient temperature -10〜40℃/14℉〜104℉
Relative humidity < 90%
Relative voltage DC 0~30V
Output power 150W
Voltage accuracy < 0.1 %±0.03V
Current accuracy < 03%±3mA
Load regulation < 0.6%+10mV
Ripple VRMS < 0.5%(10Hz-1MHz)
Output current 0-5A
