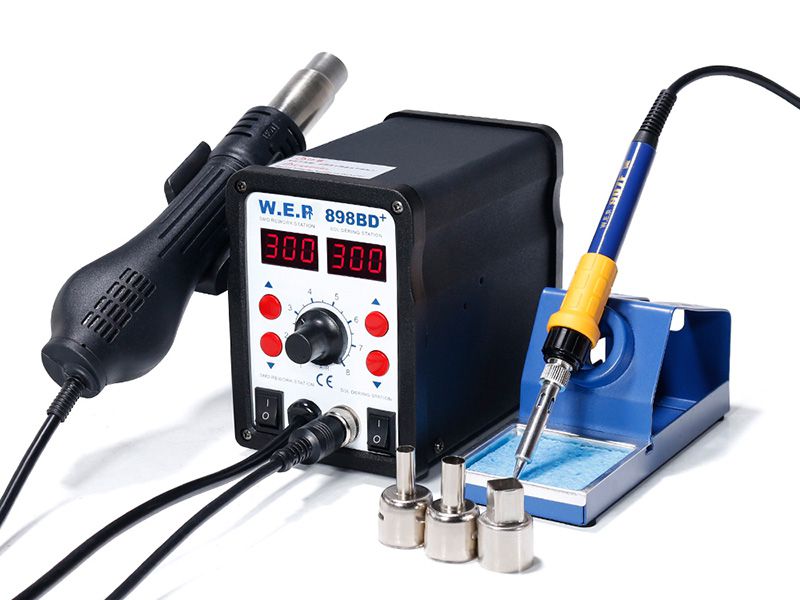

2 in1 ESD Safe Hot Air Soldering Rework Station, Item WEP-898BD+

Description
The WEP-898BD+ hot air rework station is an optimal welding solution for surface mounted devices, integrated chips with multiple pins, resistor-capacitors, binding posts, and printed circuit boards. The soldering iron adopts a high power heating core which also satisfies the requirements for large solder joints, difficult solder joints, heavy-duty binding posts and so on.

Technical Parameters

Rated Voltage AC 220V±10% 50Hz
Power 700W±10%(max)
Working Environment 0~40℃ Relative Humidity<80%
Storage Environment -20~80℃ Relative Humidity<80%
Machine Size 150X100X130mm
Weight 2.75kg
Hot air gun
Work Voltage AC 220V±10% 50Hz
Output Power 650W
Temperature Range 100℃~480℃
Airflow Type Brushless fan
Air Flow 120L/min
Temperature Stability ±5℃(Static)
Display Type RED/GREEN LED digital display
Temperature correction type PID controller
PID Temperature correction cycle Express 200ms
Heating Elements Ceramic skeleton heater
Soldering iron
Work Voltage AC 26V±10% 50Hz
Output Power 75W
Temperature Range 200℃~480℃
Temperature Stability ±5℃(Static)
Display RED/GREEN LED digital display
Temperature correction type PID controller
PID Temperature correction cycle Express 200ms
Heating Elements Regular heater(899D) High power heater(899D+)
Tip ground impedance <2Ω
Tip of ground voltage <2mV

Standard Configuration
Machine: 1 set
Air Gun Handle: 1pc
Nozzle: 4pcs (5cm, 8cm, 10cm, 13cm)
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc
