LED Digital Display Hot Air Soldering Rework Station, Item WEP-899D-II

Description

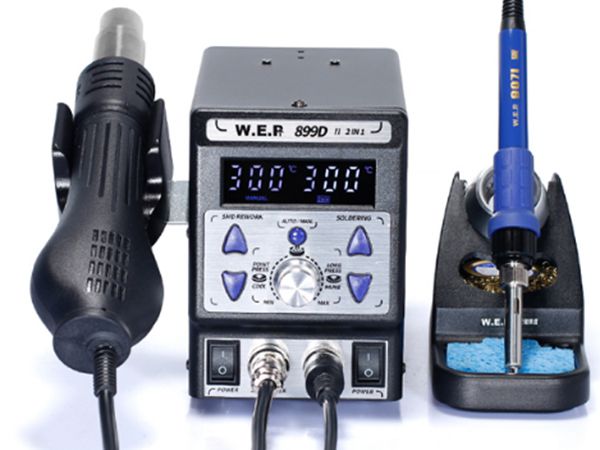

The WEP-899D-II hot air rework station comes with a hot air gun and soldering iron, suitable for soldering and de-soldering components of SOIC (small outline integrated circuit), CHIP card, QFP (quad flat package), PLCC (plastic leaded chip carrier), BGA (Ball Grid Array), and SMD (surface mounted device). This hot air rework station has the special advantages of de-soldering mobile phone flex cables and flex cable boards.

Technical Parameters

Item 899D-II
Power ≤700W
Rated Voltage AC 110V ±10% 60Hz/AC 220V~240V 50Hz
Dimension L148xW99x134mm ±5mm
Weight 2.8kg
Work Environment 0~40°C/32~104°F
Storage Environment -20~80°C/-4~176°F
Storage Humidity 35%~45%
Hot air gun
Airflow Type Brushless fan
Airflow ≤120L/min
Temperature Range 100°C~480°C
Temperature Stability ±2°C
Display Digital Display
Wire Length ≥100cm
Noise Level ≤45dB
Soldering iron
Iron Power 60W
Temperature Range 200°C~480°C
Temperature Stability ±1°C
Output Voltage 24V AC
Display Digital Display
Wire Length ≥100cm
Features
  • Sleep Mode: The soldering rework station has a status self-detection function, if the equipment is in static motion for a set time, the system will go to sleep and the temperature of soldering iron & soldering wick will decrease to 200℃. This function can effectively prevent the soldering iron from oxidizing, which prolongs the lifespan as well as saves energy.
  • Hot Air Gun Protection Function: The heater will stop heating if any abnormal situation happens for higher safety assurance.
  • Cold/Hot Air Switch: Switch from cold or hot air by pressing the button, the cold air function is especially designed to cool down heated elements processing.
