YIHUA938/938D+/938D+ Upgrade Version Anti-static LCD Display Soldering Iron Station

1. Large-screen LCD display clearly shows the readings.
2. Adopt SAMSUNG microcomputer control, warming-up quickly.
3. High quality and good resistance for long service life.
4. This solder station is ESD-protected.
5. Soldering iron handle using silicone material.
6. Front panel adopts alloy material with elegant appearance.
7. Case box is small, take up less place on work table.
8. Longer soldering iron handle line, with a length of 1.5 meter.
9. Unique handle model and soldering iron holder humanity design.
10. Soldering irons adopt high quality heating element.

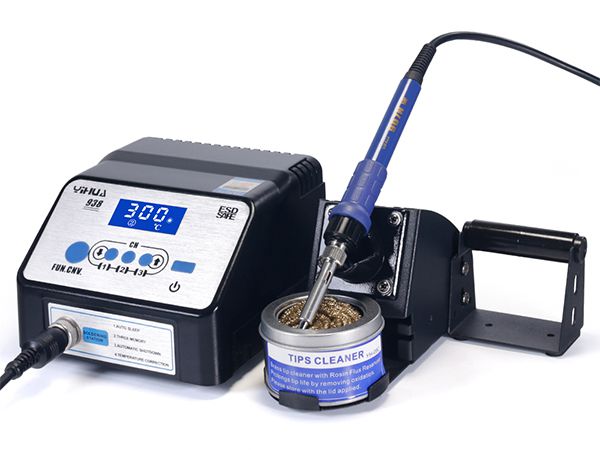

11. YIHUA938 is imported heater soldering iron handle

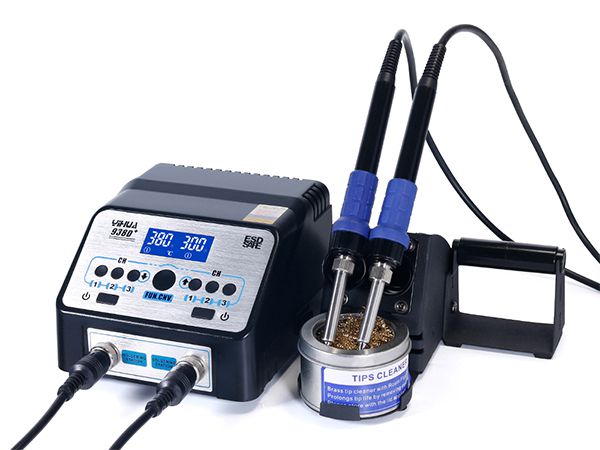

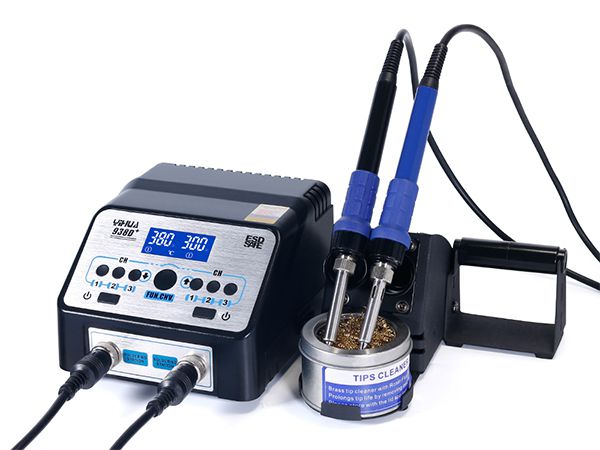

12. YIHUA938D+ is 2pcs common heater soldering iron work together; YIHUA938D+ upgrade version is 1pcs common heater soldering iron and 1pcs imported heater work together. Iron parallel desoldering IC makes it easier for soldering and desoldering work.

Item 938 938D+ Standard 938D+ Upgraded version
Power 120W 90W 160W
Soldering iron heater Imported heater Common heater Common heater
Soldering iron heater No Common heater Imported heater
Temperature Range 100~480℃/212~896℉
Display LCD
Temperature Stability ±2℃ (Static)
Rated Voltage AC24V±10%50Hz
Tips to Ground Impedance <2Ω
Tips Voltage to Ground <2mV
dimension L150xW136xH100mm±5mm
Machine Weight About 2.5kg About 2.8kg
Working Temperature 0~40℃/32~104℉
Storage Temperature -20~80℃/-4~176℉
Storage humidity 35~45%
Packing specification 6PCS/CTN

Main function
a) Three-stage preset TEMP. memory function:
Users can store a preset temperature of each segment based on demand, welding work, the user can quickly retrieve CH1/ CH2/ CH3 suitable preset values according to different welding environments.
b) Sleep function: Soldering iron automatic detection of their work status are not in use in a quiescent state, arriving to set the sleep time, the temperature of the iron automatically lower the temperature to 200°C enter into sleep state, can effectively prevent the oxidation of iron head and prolong the iron tip service life, energy saving and environmental protection. The sleep time can be set range 0 to 99 minutes in 1 minute steps, users can be set based on usage, if you do not need a soldering iron sleep, the sleep time is set to 0.
c) Automatic shutdown function: After soldering iron enter into sleep state, start the timer program, set the shutdown time did not wake up from sleep, automatic shutdown, energy saving and environmental protection. Auto power off time setting range 0 to 99 minutes in 1 minute steps.
d) Celsius/Fahrenheit temperature display function: Designed to meet the market needs of the different regions of the temperature display mode.
e) Temperature correction function:
Adapted to the environmental impact or replacement heater, iron top parts caused by iron temperature and display temperature deviation can be corrected by this function, the calibration temperature range: -50℃~+50 ℃
