Hot Air Soldering and Desoldering Rework Station With LCD Display, Item WEP-992D 992D+

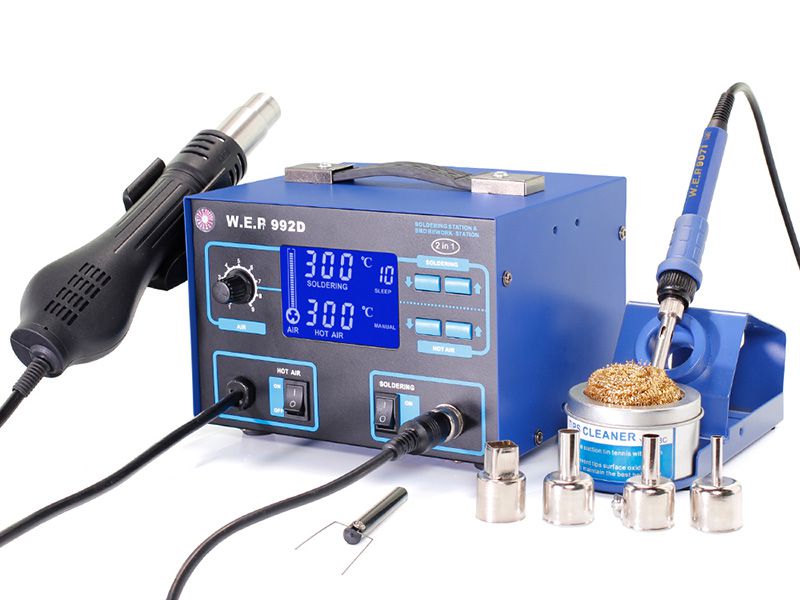

WEP992D
The 992D adopts a hot air gun that delivers low pressure but large airflow rate of 120L/min, and is matched with a large-diameter air nozzle to de-solder relatively larger soldering joints or large IC components.

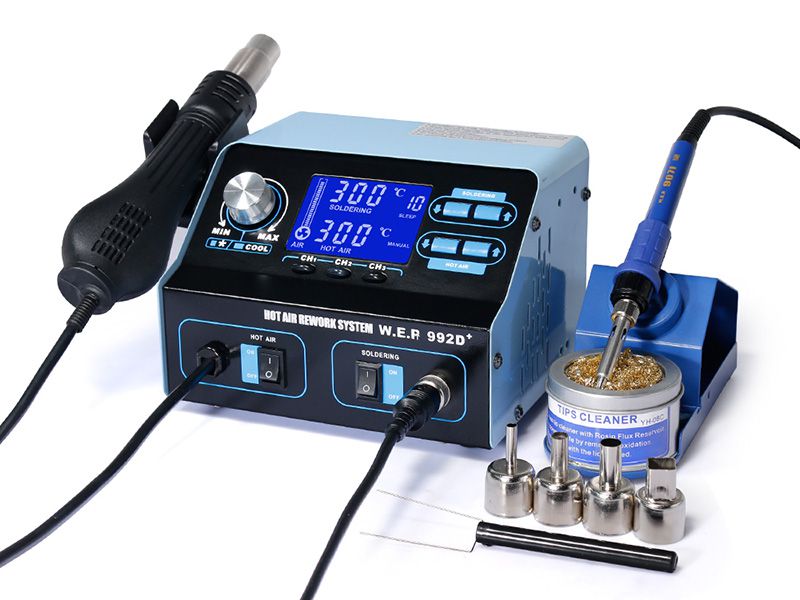

WEP-992D+
The 992D+ soldering iron adopts a high-quality heating coil, it has large power and fast heating up time, it also comes with a sleep mode, if you place the soldering iron on the stand for a set period, the soldering iron temperature will decrease to 200℃ to protect from overheating, this allows longer lifespan as well as energy saving.
992D+ hot air rework station is added with hot/cold air switch and 3-segment parameter storage function compared to 992D hot air rework station.
| Item | 992D /992D+ |
| Power | ≤720W |
| Dimension | L154xW186xH124mm ±5mm |
| Weight | 3.5kg |
| Work Environment | 0~40°C/32~104°F |
| Storage Environment | -20~80°C/-4~176°F |
| Storage Humidity | 35%~45% |
| Hot air gun | |
| Brushless Fan | Brushless fan |
| Airflow | ≤120L/min |
| Temperature Range | 100°C~480°C/212°F~896°F |
| Temperature Stability | ±1°C（Static） |
| Display | LCD |
| Wire Length | ≥90cm |
| Soldering iron | |
| Temperature Range | 200°C~480°C/392°F~896°F |
| Temperature Stability | ±1°C（Static） |
| Tip of ground voltage | ＜2mV |
| Tip ground impedance | ＜2ohm |
| Display | LCD |
| Wire Length | ≥120cm |
