LCD Display Fan type Hot Air Soldering Rework Station with Smoke Absorber, Item WEP 992DA+
Inquiry Form

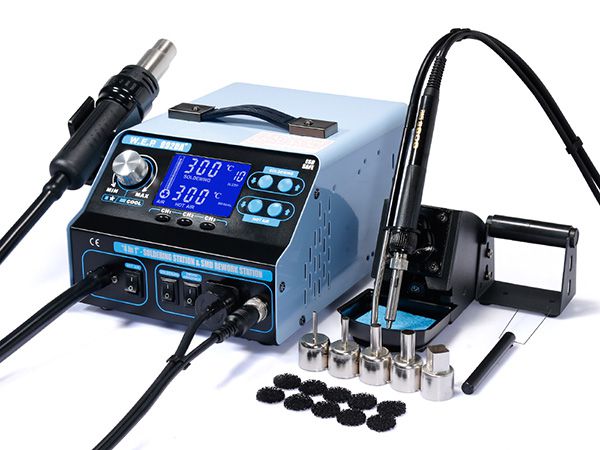

LCD Display Fan type Hot Air Soldering Rework Station with Smoke Absorber, Item WEP 992DA+

Description

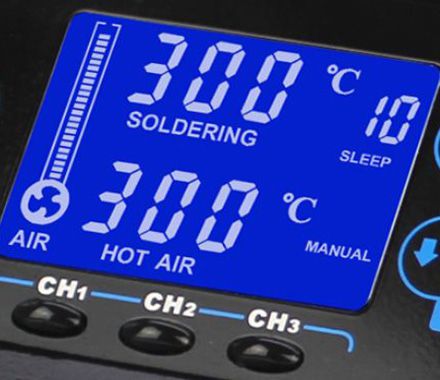

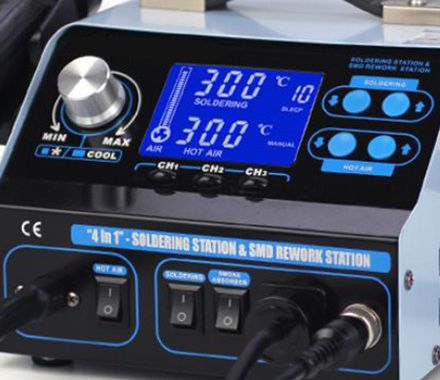

The WEP 992DA+ hot air soldering station is an upgraded version of our 992DA hot air soldering station that features a personalized oblique display screen deign, and we added a 3-segement storage button to memorize all functions for different parameters. By pressing the switch button, you can quickly retrieve the corresponding parameters such as airflow rate, air gun temperature, soldering iron temperature, hot/cold air mode, etc.

Technical Parameters

Rated voltage AC 220V±10% 50Hz
power 720W±10％ (Max)
300℃The thermostat power of (high-speed PID programmable energy saving) 250W±10％
Working environment 0～40℃ relative humidity＜80％
Storage environment －20～80℃ relative humidity＜80％
Body size 255*188*125mm
Weight 5.11KG
Parts parameters Hot air gun Soldering iron
Work voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output power 550W 75W
Temperature range 100℃～480℃ 200℃～480℃
Airflow type Diaphragm pump ---
Air Flow 28L/min (MAX) ---
Temperature Stability ±1℃ (Static) ±1℃ (Static)
Display Type LCD display LCD display
Temperature correction type The PID digital program proofreading The PID digital program proofreading
PID Temperature correction cycle rapidly 20ms high-speed 100ms
Heating elements Ceramic skeleton heater Imported heater
Standard nozzles/tips (10mm,8mm,5mm,3mm,13mm) 5PCS nozzles B
Tip ground impedance --- ＜2Ω
Tip of ground voltage --- ＜2mV
Details

Standard Configuration
Machine: 1 set
Power Cable: 1 pc
Iron Handle (including a heater and tip): 1pc
Air Gun Handle: 1pc
Ferroalloy Iron Holder: 1pc
Thermal Resistant Sponge: 1pc
Air Nozzle: 5pcs
Smoke Absorption Sponge: 5pcs
IC Extraction Tool: 1pc
Instruction Book: 1pc
