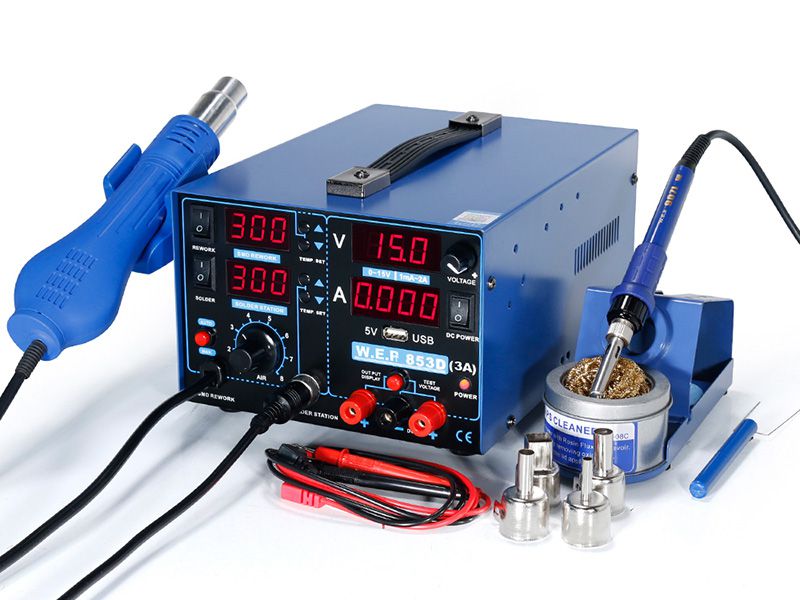

USB 3A Soldering Rework Station with four LED Display and Power Supply, Item WEP-853D
Description
The WEP-853D soldering station comes equipped with a 5V USB port to connect with exterior equipment like USB lights or even for the power supply of devices like smartphones and tablets.
| Parameters | |||
| Rated voltage | AC 220V±10% 50Hz | ||
| power | ≤800W | ||
| 300℃The thermostat power of (high-speed PID programmable energy saving) | 250W±10％ | ||
| Working environment | 0～40℃ relative humidity＜80％ | ||
| Storage environment | －20～80℃ relative humidity＜80％ | ||
| Body size | 255*188*125mm | ||
| Parts parameters | Hot air | Soldering iron | |
| Work voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz | |
| Output power | 550W /700W | 50W | |
| Temperature range | 100℃～480℃ | 200℃～480℃ | |
| Airflow type(853D) (853DA) | Brushless fan | --- | |
| Air Flow(853D) (853DA) | 120L/min 28L/min(MAX) | --- | |
| Temperature Stability | ±2℃ (Static) | ±2℃ (Static) | |
| Display Type | Red LED display | red LED display | |
| Temperature correction type | The PID digital program proofreading | The PID digital program proofreading | |
| PID Temperature correction cycle | rapidly 20ms | high-speed 100ms | |
| Heating elements | Ceramic skeleton heater | Import heater | |
| Tip ground impedance | --- | ＜2Ω | |
| Tip of ground voltage | --- | ＜2mV | |
| DC power supply | |||
| Output voltage | 0~30V | ||
| Output current | 0-3A | ||
| Protection type | Short-circuit over-current | ||
| Voltage display type | red LED display | ||
| Current display type | Red LED display | ||
| Load stability | < 0.01±2mv | ||
| Ripple dB | < 1mvrms(virtual value) | ||
- Adopts the most advanced DC power protection system with short-circuit alarming and the power system will automatically back-up within 1 second after troubleshooting.
- Equipped with a cellphone RF signal detector to prevent damage to cellphones.
- The power port comes with a voltmeter instead of an exterior precision digital voltmeter.
- Handle protection function, the air gun and soldering iron handles have to be placed on the holder when powering on the rework station to begin normal functioning. The main reason is for safety if the handles are misplaced in dangerous locations.
