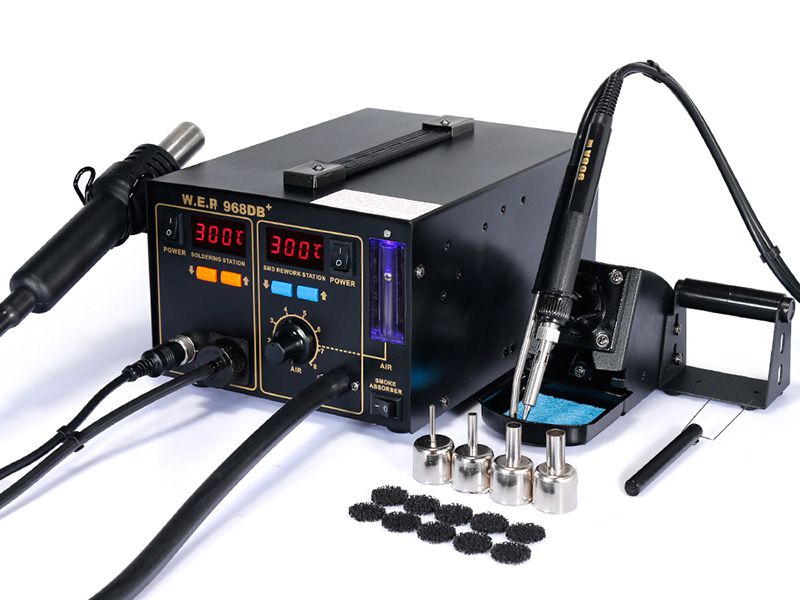

Pump Type Hot Air Soldering Rework Station with Smoke Absorber and Wind Speed Ball, Item WEP-968DB+

Description

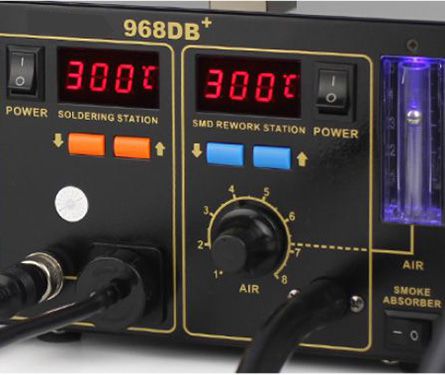

Our WEP-968DB+ hot air soldering station is equipped with an anemometer (wind speed meter) to directly show the current airflow rate, which guarantees the soldering quality by effectively controlling the air gun power.

Technical Parameters

Rated voltage AC 220V±10% 50Hz
Power 720W±10%(MAX)
300℃The thermostat power of (high-speed PID programmable energy saving) 250W±10%
Working environment 0~40℃ relative humidity<80%
Storage environment -20~80℃ relative humidity<80%
Body size 255*188*125mm
Weight 4.83KG
Parts parameters Hot air gun Soldering iron
Work voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output power 550W 75W
Temperature range 100℃~480℃ 200℃~480℃
Airflow type Diaphragm pump ---
Air Flow 28L/min(MAX) ---
Temperature Stability ±1℃ (Static) ±1℃ (Static)
Display Type LED display LED display
Temperature correction type The PID digital program proofreading The PID digital program proofreading
PID Temperature correction cycle rapidly 20ms high-speed 100ms
Heating elements Ceramic skeleton heater Imported heater
Tip ground impedance --- <2Ω
Tip of ground voltage --- <2mV
