Digital SMD Soldering Desoldering Hot Air Preheat BGA Rework Station, Item WEP-853AAA

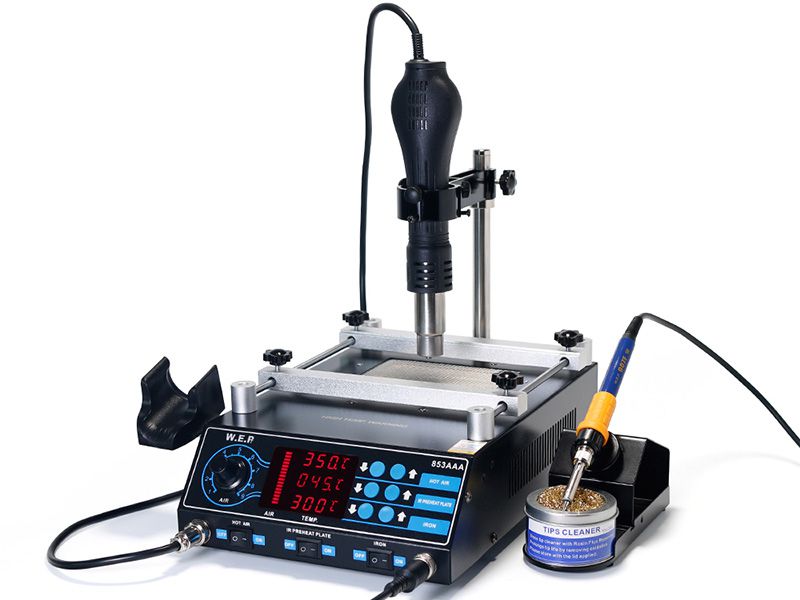

The WEP-853AAA BGA rework station is equipped with a pre-heating platform in addition to a hot air gun and soldering iron. This soldering equipment is more practical than similar rework stations as the integrated rework station can satisfy almost all applications thanks to its 3-in-1 design, compact structure, and powerful and economical functions.

The pre-heating platform heats up the processed IC components before de-soldering and soldering processes, resulting in higher efficiency and space saving performance.

Technical Parameters

Rated voltage AC 220V±10% 50Hz
Machine power ≤1270W
300℃The thermostat power of (high-speed PID programmable energy saving) 250W±10%
Working environment 0~40℃ relative humidity<80%
Storage environment -20~80℃ relative humidity<80%
Body dimension L320xW220xH100mm±5mm
Weight 6.5kg
Parts parameters Hot air gun 853AAA Soldering iron
Work voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output power 650W 75W
Temperature range 100℃~480℃ 200℃~480℃
Airflow type Brushless fan ---
Air Flow 120L/min ---
Temperature Stability ±1℃ (static) ±1℃ (static)
Display Type red LED display Red LED display
Temperature correction type PID digital program PID digital program
PID Temperature correction cycle Rapidly 20ms High-speed 100ms
Heating elements Ceramic skeleton heater Imported heater
Tip ground impedance --- <2Ω
Tip of ground voltage --- <2mV
Pre-heater platform
Work voltage AC 220V±10% 50Hz
Output power 600W
Pre-heating platform area 120X120mm
Pre-heating platform material Ceramic heating material
Temperature sensor Type K thermocouple
Temperature range 50℃--350℃
Features
  • WEP853AAA soldering iron wire adopts thermal resistant silicon material, which displays no obvious damage after 30 seconds contact with a 300℃ soldering iron tip.
  • Brand name high-power heater with superfast heating time, is applicable for the soldering and de-soldering of large terminals, welding joints other than regular welded workpieces.
  • Pioneer technology in this industry regarding its handle protection function, the air gun and soldering iron handles have to be placed on the holder when powering on the rework station to begin normal functioning. The main reason is for safety to prevent the handles from causing damage if left in an unsafe location.
