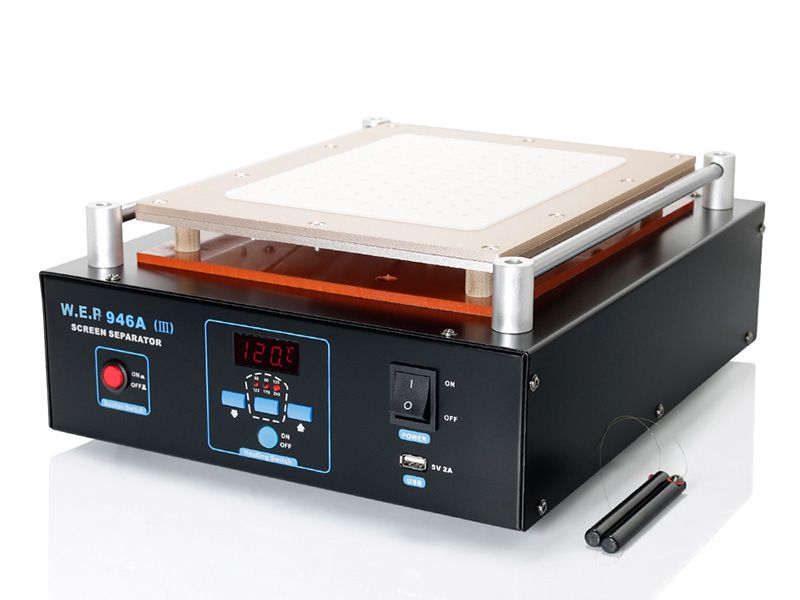

LCD Display Screen Separator Machine, Item WEP-946A-III

The LCD display screen separator machine is designed with a clean and smooth aluminum board with uniform temperature dispersion, and features an overheating protection function up to 130℃. This separator machine is ideal equipment for the separation of screens for devices like smartphones and tablets.

Parameters

Power 900W
Temperature range 50℃- 120℃
Display Type LED digital display
Temperature Stability ±2℃ (static)
Vacuum Pump Power 12W
Vacuum Pressure 0. 05MPa
Tip Ground Impedance < 2Ω
Aluminum Board Size (L)280MM x (W) 200MM ±2MM
Silicon Pad Size (L)210MM x (W)160 MM ±2MM
Dimension L360 x W288 x H90MM ±3MM
USB Port 5V 2A
Weight 6.1Kg
Work Temperature 0~40℃/ 32℉~104℉
Storage Temperature - 20℃~80℃/- 4℉~176℉
Storage Humidity 35 %~ 45 %
Features
  • Programming temperature control technology controlled by a built in PID controller allowing for convenient temperature adjustment with a minimal tolerance.
  • Built in vacuum pump delivers strong suction ability, low noise level and a long life span.
  • 5V/2A USB port can charge smartphones like iPhone, Samsung, Xiaomi, Huawei, etc.
  • The SMT (surface-mounted technology) double-side printed board inside the screen separator allows smooth and clear signal transmission, which guarantees performance with greater stability.
