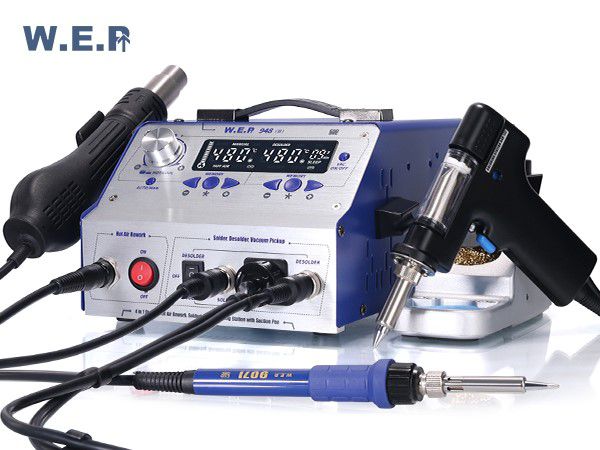

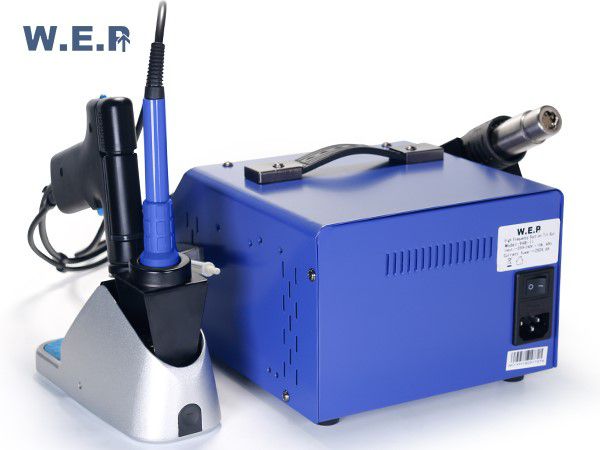

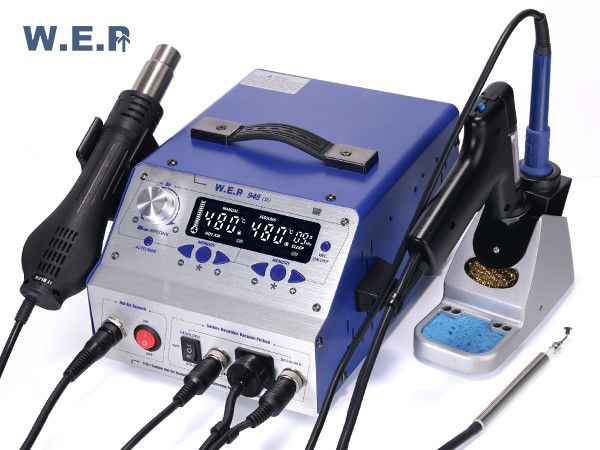

4 In 1 Desoldering Soldering Iron Rework Station with Hot Air Gun Sucker / Tin Gun Suction Pen, Item WEP-948-II

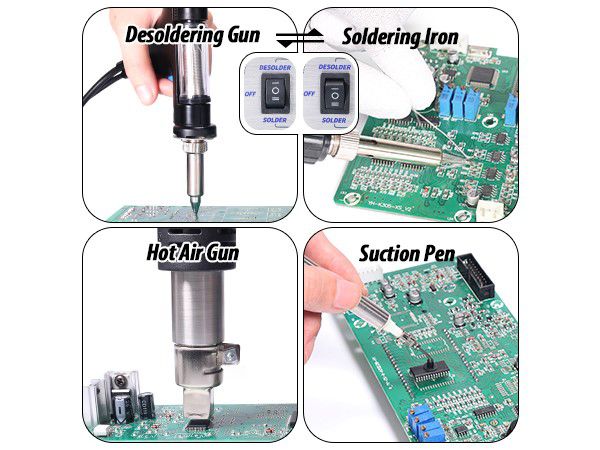

The WEP-948-II rework station consists of a hot air gun, vacuum soldering iron, electric soldering iron and smoke absorbing pen, and it has a wide range of applications. The intelligent interchange function enables simple changeover between the vacuum soldering iron and electric soldering iron.

Technical Parameters

Maximum power 725W
Power Voltage AC 110V ±10% 60Hz/AC 220V~240V 50Hz
Dimension(L*W*H) 280×187×135(±5)mm
Weight 5.2kg
Working Temperature 0~40℃/32℉~104℉
Storage Temperature -20℃~80℃/-4℉~176℉
Storage Humidity 35%~45%
Hot Air Gun
Power 650W
Temperature range 100℃-480℃
Airflow type Brushless fan
Air Flow ≤120L/min
Display Type LED digital display
Temperature Stability ±1℃
Vacuum Soldering Iron
Power 75W
Temperature range 350℃-480℃
Vacuum Pump Power 12W
Vacuum Pressure 0.12MPa
Display Type LED digital display
Temperature Stability ±1℃
Heating Coil Voltage 26V~ ±10%
Tip ground impedance < 2Ω
Soldering Iron
Soldering Iron Power 60W
Temperature range 200℃-480℃
Display Type LED digital display
Temperature Stability ±1℃ (static)
Heating Coil Voltage AC 26V ±10%
Tip ground impedance < 2Ω
Features
  • Programming temperature control technology commanded by built-in PID controller can track temperatures of each soldering iron in real-time and correct temperatures quickly and with minimum tolerance.
  • 3-segment storage function is able to save function modes with different parameters for easier future operation.
  • Air gun protection function: The hot air gun will automatically stop if any malfunction occurs for safety assurance.
  • Air gun manual/automatic function:
    a. If on auto mode, the heater immediately stops once the air gun handle is placed on the holder. This makes sure that the air gun is always attached with the equipment for the next use, and provides excellent safety assurance to the operator, and extends its lifespan and maximizes energy savings.
    b. If on manual mode, the air gun is still operating even it is placed back to holder and ready for further use. This applies to situations with continuous processing and saves time for endless heating and cooling which results in significantly higher production efficiency. We highly recommend changing back to auto mode if you are done with the rework station for safety concerns.

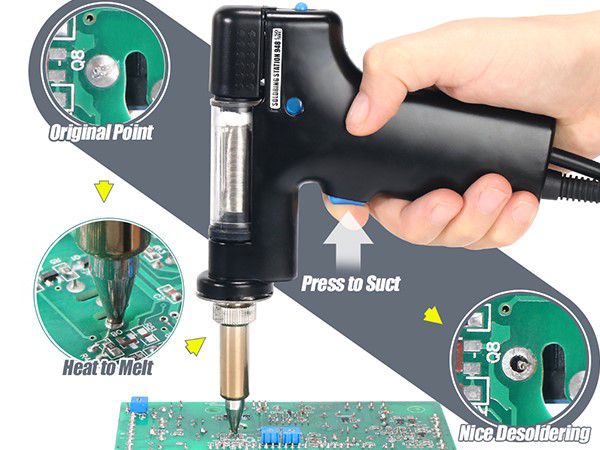

  • Specially designed vacuum nozzle and heater, does not require frequent maintenance since the melted soldering tin is directly sucked into the filter.
