  5. High Frequency Lead Free Desoldering Station, Item WEP-948D Basic/ Upgrade Version
  • High Frequency Lead Free Desoldering Station, Item WEP-948D Basic/ Upgrade Version

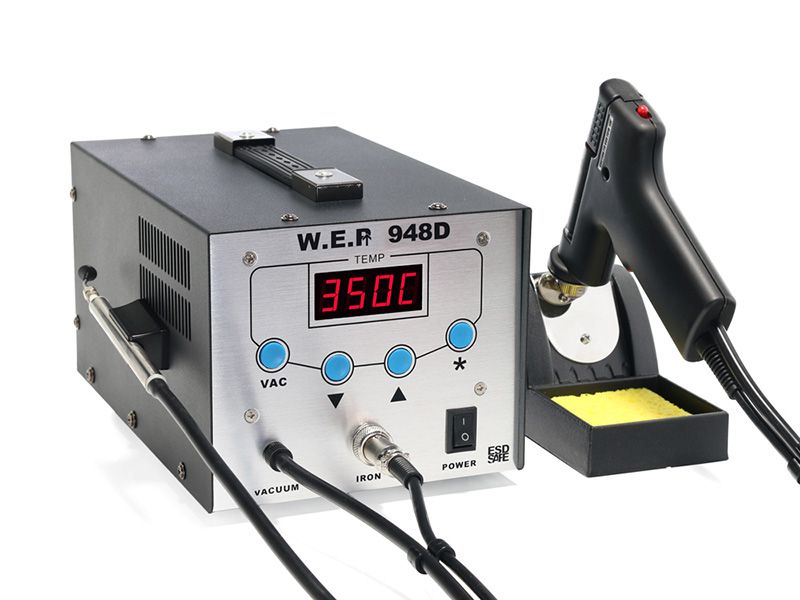

    WEP948D Basic Version
  • High Frequency Lead Free Desoldering Station, Item WEP-948D Basic/ Upgrade Version

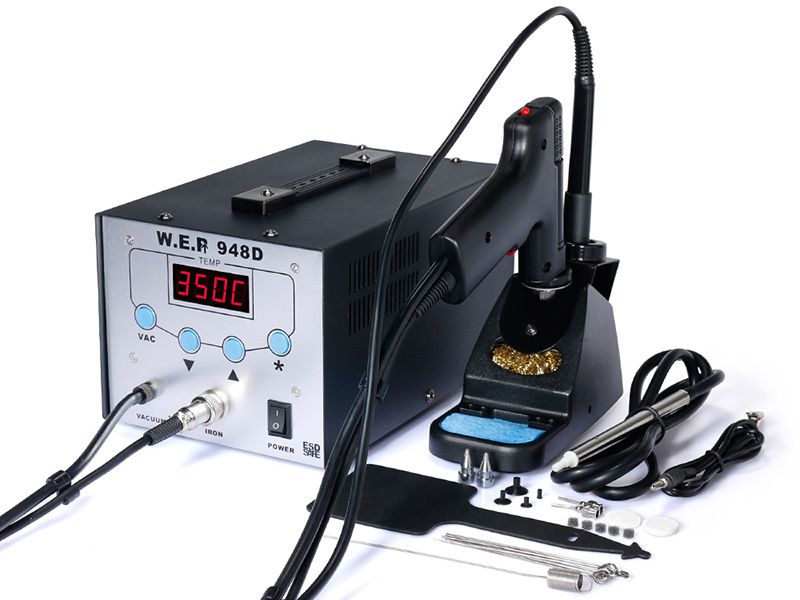

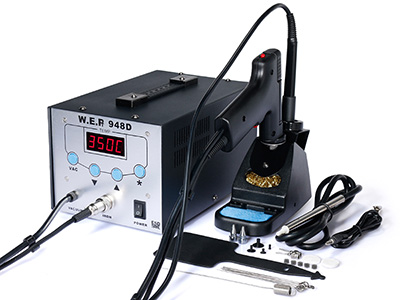

    WEP948D Upgrade Version

High Frequency Lead Free Desoldering Station, Item WEP-948D Basic/ Upgrade Version

The WEP948D basic version is only equipped with a vacuum soldering iron while the WEP948D upgrade version comes with both a vacuum soldering iron and high frequency soldering iron with intelligent interchange function.

If you need to change to the high frequency soldering iron, simply take off the vacuum soldering iron from the handle and connect with the high frequency one and the system will automatically detect and read the previous high frequency soldering iron temperature setting and vice versa.

Technical Parameters

Power 90W
Temperature range 350°C~480°C
Display Type LED digital display
Temperature Stability ±3°C (static)
Heating Coil Voltage AC 36V ±10% f= 380KHz
Vacuum Pump Power 12W
Vacuum Pressure 0.12MPa
Tip ground impedance < 2Ω
Tip of ground voltage < 2mV
Dimension(L*W*H) 235 x151 x134mm (±5mm)
Net Weight 4.7kg
Wire Length ≥120cm
Work Temperature 0°C~40°C/32°F~104°F
Storage Temperature -20°C~80°C/-4°F~176°F
Storage Humidity 35%~45%
Features
  • Programming temperature control technology commanded by built-in PID controller tracks the temperatures of several soldering irons in real-time and corrects the temperature with high speed and minimal tolerance.
  • Antistatic design prevents component damage caused by static or electricity leakage.
  • The soldering irons are powered by an isolation transformer that will automatically stop if the high frequency soldering iron or vacuum soldering iron is removed.
  • Built-in vacuum pump with strong suction ability, portable structure with no need for an exterior vacuum system.
