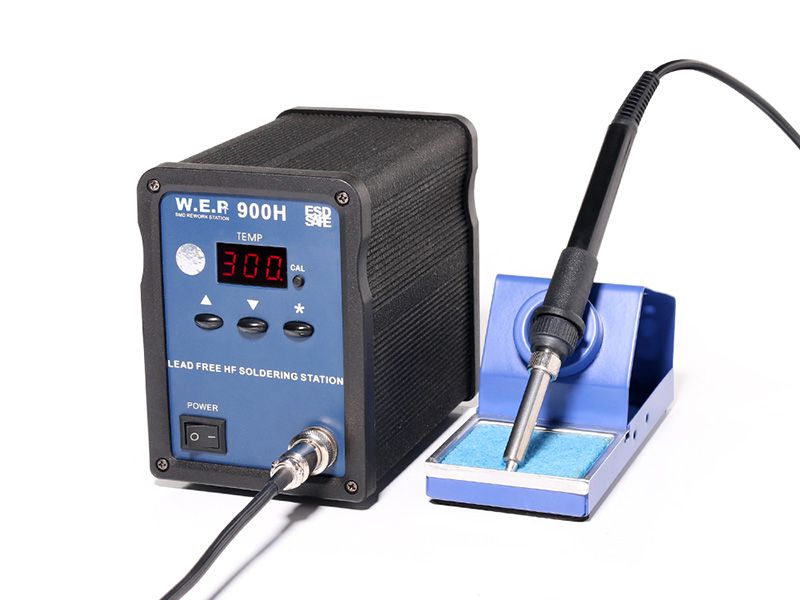

High Frequency Soldering Station, Item WEP-900H

The WEP-900H soldering station features 90W power and it only take seconds to heat up from 0℃ to 300℃. Other than satisfying regular welding requirements, this soldering station is widely used for large soldering terminals, welding joints and other difficult soldering jobs.

Technical Parameters

Rated Voltage AC 220V±10% 50Hz
Output Power ≤90W
Working Environment 0~40℃ relative humidity<80%
Storage Environment -20~80℃ relative humidity<80%
Dimensions 15*10*13.5CM
Weight 3.4KG
Working Voltage AC 26V±10% 50Hz
Temperature Range 3 selectable temperature range 200-480℃; 100-450℃; 50-420℃
Temperature Stability ±1℃ (Static)
Display Type Red LED display
Tip to Ground Impedance <2Ω
Tip of Ground Voltage <2mV
Details
Features
  • Heated by high-frequency eddy current with rapid speed, applicable for high-temperature soldering and features lead-free welding technology.
  • This soldering station is designed with a temperature lock function; a password is required to prevent unauthorized operation.
  • Temperature correction function allows auto temperature adjustment caused by overheating during operation.
  • The main frame adopts high-quality titanium alloy for excellent thermal and wear resistance.

Standard Configuration
Machine: 1pc

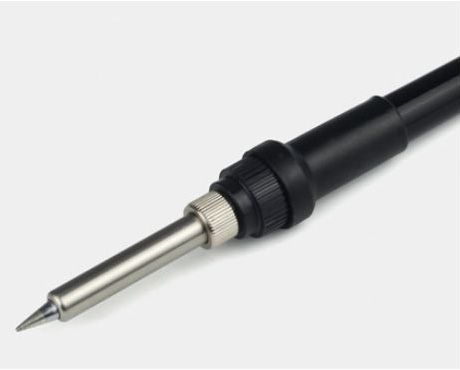

Soldering iron handle (including tip and heater): 1pc

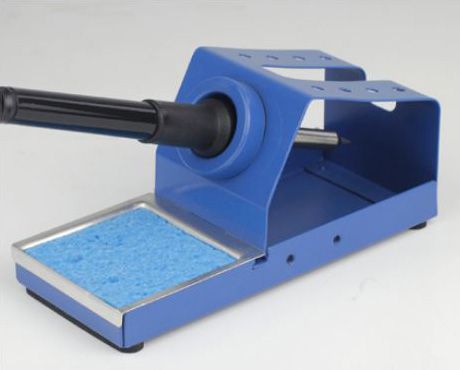

High quality ferroalloy holder: 1pc
Cleaning Sponge: 1pc
Instruction book: 1pc
Warranty Card: 1pc
