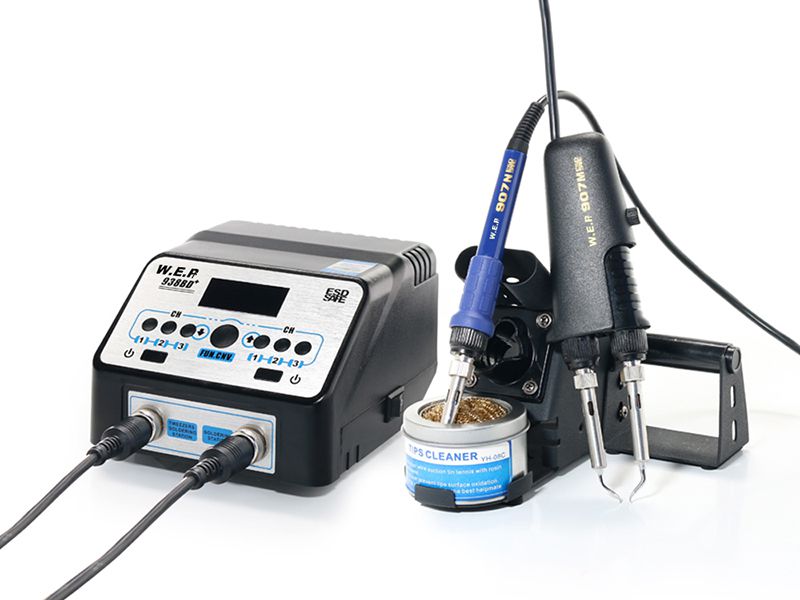

Upgrade Version SMD Hot Tweezer Soldering Station, Item WEP-938BD+

Our WEP-938BD+ upgraded version features a convenient design combined with soldering tweezers and a soldering iron. The equipment is widely used for soldering and de-soldering electronic components, chips, surface-mount devices, etc. In addition to satisfying regular welding requirements, this soldering station is widely used for soldering large terminals, welding joints, and other difficult soldering jobs.

Parameters

Temperature Range 100°C~480°C/212°F~896°F
Display LCD
Temperature Stability ±2°C(Static)
Heating Coil Voltage AC 24V ±10% 50Hz
Tip to Ground Impedance <2Ω
Tip of Ground Voltage <2mV
Dimension L150xW136xH93mm ±5mm
Wire Length ≥120cm
Working Temperature 0~40°C/32°F~104°F
Storage Temperature -20°C~80°C/-4°F~176°F
Storage humidity 35%~45%
Features
  • Programming temperature control technology with built-in PID controller for the real-time tracking of the temperatures of each soldering iron, and correct temperature with quick speed and minimal tolerance.
  • Backlity LCD display with delicate design and shows accurate temperature of soldering tweezers and soldering iron, as well as other functions.
  • Personalized Functions:
    A.3-segment Parameter Storage Function:
    Memory functions at different parameters and quick retrieval for future uses in three different appropriate temperate range of CH1/CH2/CH3.
    B. Sleep Mode:
    The soldering rework station has a status self-detection function, if the equipment is in static motion for a set time, the system will go to sleep and the temperature of soldering iron will decrease to 100℃. This function can effectively prevent the soldering iron from oxidizing, which serves as a safety precaution and extends the working life of the equipment.
    C. Temperature Correction Function:
    The rework station can automatically correct the temperature due to environmental changes or the replacement of the heating coil, solder iron or other components with a temperature correction range of -50℃ ~+50℃.
  • The touch interface adopts intelligent virtual buttons with excellent sensitivity, fast response, stable performance and delicate appearance.

Standard Configuration
Machine: 1pc
Soldering iron handle (including tip and heater): 2pcs
Titanium alloy holder: 1pc
Rosin flux: 1 box
Instruction book: 1pc
